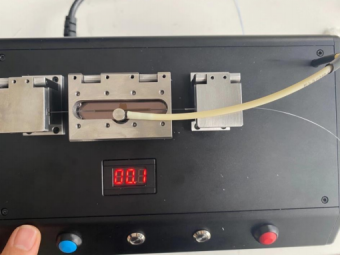

Optical fiber recoater SH-T101

1. lt is used to recoat the spliced fiber or bare fiber and fiber repair, to protect the splicing area and recover fiber elasticity. 2. The high-refractive glue is cured in 1s and the low-refractive glue is cured in 7s 3. It is suitable for the coating needs of various single-mode, multimode, various polarization maintaining fibers, and various special structure optical fibers (including: elliptical, polarized, multi-core).

Hot Tags : fiber recoater optical fiber
Read More

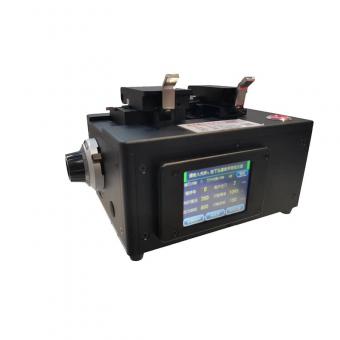

SH-D104 Large Diameter Optical Fiber Cleaver

SH-D104 large core fiber cutting cleaver can be used to cut large core fiber and fiber buncher.Users can easily cut different types of fiber and buncher by simply setting the tension of the fiber and advancing the head of blade before cutting.The machine not only has the cutting stability required for production, but also has the characteristics of flexible debugging required for research and development. Advanced features : Extensive parameter adjustment can adjust the effect from many aspects, can adjust methods of cutting. It can cut photon, crystal fiber, doped fiber, glass tube, capillary and other special kinds of fiber. Advanced features : Extensive parameter adjustment can adjust the effect from many aspects, can adjust methods of cutting. It can cut photon, crystal fiber, doped fiber, glass tube, capillary and other special kinds of fiber.

Hot Tags : Laser Source Fiber Cleaver Laser Source repair
Read More

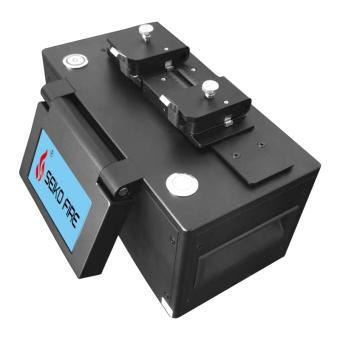

SH-D103 Large Diameter Optical Fiber Cleaver

The SH-D103 is a highly integrated, easy-to use design and highly advanced small diameter fiber cutting tool that cuts 40-600 μm small diameter clad fiber (customizable parameters). The SH-D103 fiber cutting cleaver is designed for production line use, easy to use and convenient, cutting speed fast and high efficiency, these advantages are essential to improve the production line. The SH-D103 fiber cutter is also ideal product in research and development environments.

Hot Tags : fiber fusion spicer
Read More

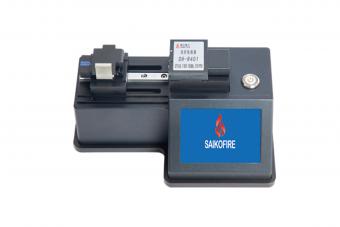

Special Fiber Optical Heat Stripper SH-R401

1.Easy to use,automatically longitudinal strip,high quality striping,stable and efficient 2.The blade is durable and easy to replace 3.Adopt high-precision linear guide and motor directly drive striping way to ensureno damage to the fiber google is broken

Hot Tags : Heat Stripper fiber fusion splicer
Read More

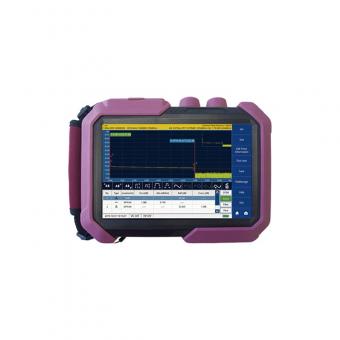

Large Diameter Fiber OTDR SH-DXJ200

Special wavelength OTDRs are reliable instruments used to measure the characteristics of optical fibers with large core diameters.This series of products are compact, light transmission quality and achieves the measurement results after the results processing,archiving, printing. The person who installs and maintains the fiber optic cable by looking at the "incident point"of fiber optic test graph to point out these irregularities in the fiber, locate the positions, measure the attenuation and the uniformity of damage and attenuation.

Hot Tags : fiber testing OTDR optical time-domain reflectometer
Read More

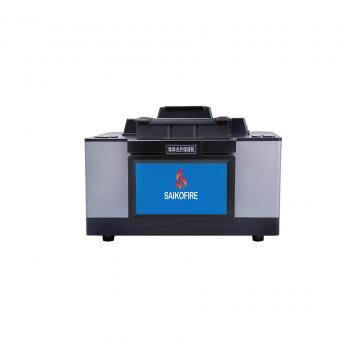

S500M Large Diameter Fiber Fusion Splicer

1. Six motor core to core, core adjustment, center alignment 2. Artificial calibration and Real-time ARC automatic calibration are optional. 3. The same optical fiber and different opticalfibers are connected in the center. 4.Electrical discharge ARC makes realtime compensationaccording to the pressure, environment and temperature parameter. 5.Two cameras can observe X axes and Y axes at the same time. 6. High resolution 5 inch color LED touch screen, multi languages are customizable. 7.2 USB ports: one for data transmission,one for power supply of LED light
Read More

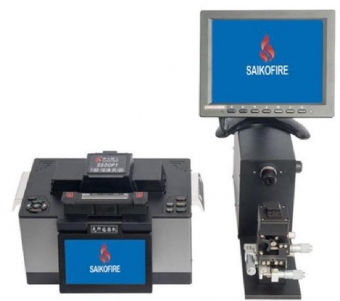

Large diameter fiber polarizingwelding machine S500P1

Main features: 1.it is composed ofoptical fiber endingalignmentsystem and optical fiber welding machine. 2.independent optical fiber endingalignment by manual is conwenient and fast 3.Applicable to all kinds of polarization-maintaining optical fibers. 4.Applicable to various coated optical fibers.
Read More

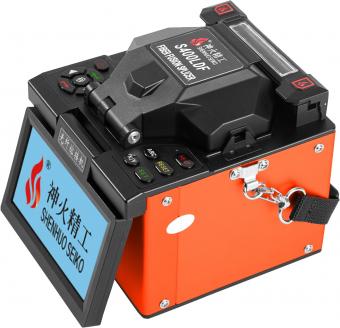

Laser Source S400 LDF Large Diameter Fiber Fusion Splicer

S400 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~500um) with S400 LDF Specialty Fiber Fusion Splicer. Specifications Model S400LDF Applicable fiber SM(Single mode); MM(Multi mode); DS; NDZS Dimension Weight 2.4KG (including battery) Return loss >60dB Electrode life Typical 3000 times discharge Fiber diameter Cladding diameter:125~500μm Heat-shrinkable tube 60mm、40mm and a series of miniature tube Data storage 10000 groups data records and 100 group images Typical heating time 20seconds (60mm heating tube) Tension test Typical 2N Typical splice time 8-10 seconds Typical splice loss 0.02dB(SM); 0.01dB(MM); 0.04(DS); 0.04(NZDS) Cutting length 8~16mm(Coating diameter

Hot Tags : Fiber Laser Repair fusion splicer fiber splicing machine big fusion splicer Fiber Laser Source
Read More
Fiber Coating Machine,optical fiber recoater

T0X series optical fiber recoater is the latest high-precision optical fiber recoater, including four types (HXGK-T01---HXGK-T04), suitable for various types of ordinary fiber, ribbon fiber and polarization maintaining fiber. Products are well-crafted with stable quality and easy to operate. They have a wide range of applications in scientific research, fiber optic sensing, fiber optic gyroscopes, optical switches, fiber optic lasers, fiber optic communications, etc. They are designed as multi-functional coating machines for fiber optic recoating repair. The coating length of this optical fiber recoater is 50 mm or 100 mm (customizable type), used to repair the outer coating layer of fusion-spliced optical fibers, to restore the physical and optical characteristics of the fibers, and to enhance the flexibility of the fibers to protect the bare fiber and fusion point.

Hot Tags : optical fiber recoater Fiber Coating Machine
Read More
