/FTTH High-Performance Optical Cable Identifier S-55

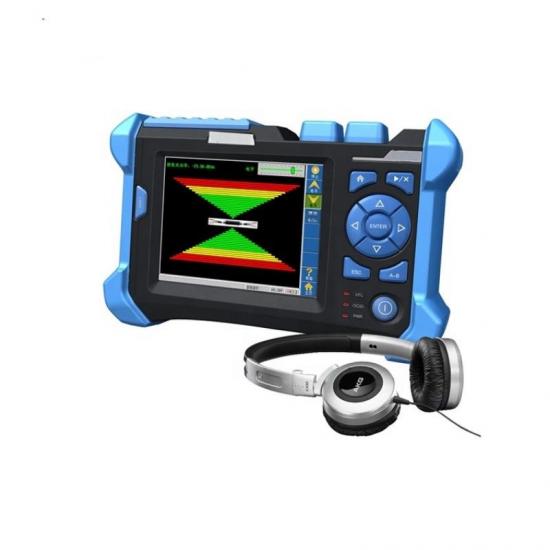

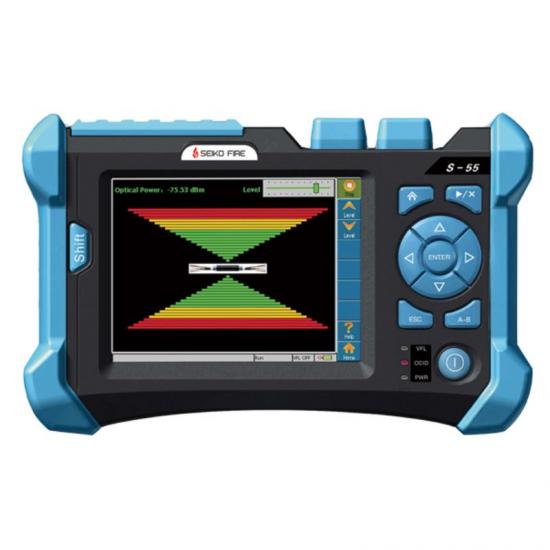

FTTH High-Performance Optical Cable Identifier S-55

Small scale portable equipment with touching screen and buttons.

Strong on-spot application capacity can meet the demands of accurately searching the target cable.

  • Item NO.:

    S-55
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

S-55 Optical Cable Identifier, OCID was a specially developed instrument for telecommunications engineers and technicians to identify a desired target fiber optical cable, which is a friendly, easy to operate and non-invasive to the optical fiber cables. It can be used in various environments, such as manholes, tunnels conduits and aerial.


Based on the properties of photo elastic effect, the OCID S-55 converts the coherent laser energy into visual or audio signal, so user can easily locate the target desired fiber in manholes, tunnels conduits, and aerial, etc. With the OCID S-55, the user can easily recognize the target optical cable from the rest by gently tapping them.


Features

  • Touch Screen + Keypad, easy to use.
  • Large capacity of lithium battery and low power consumption, longer operating time.
  • Dynamic range of sensitivity to mechanical perturbation from tens of kilometer distance.
  • Locate target cable using audio and visual signal even under noisy environment.
  • Self-calibration for optimization, adapt to different length of fiber cables.
  • Non-invasive detection with high accuracy.


Packing List

No.

Name

Quantity

Remarks

1

Packing List

1



2

S55 Optical Cable Identifier

1

Including touch pen and Li battery

3

Wrist strap

1



4

12V/3A AC adapter

1



5

Product instruction

1

In CD

6

Manufacturer’s certificate

1



7

Warranty

1



8

FC flange

1



9

Production test report

1


10

headphones

1



11

Fiber reflector

1



12

3m FC/UPC-FC/APC patch cord

1



13

Bag

1



14

Stamp

1



15

Report of calibration

1




Specifications

Model

S55-20/N

S55-40/N

S55-60/N

Measurement method

Single fiber test

Wavelength

1550nm

Min. output power of light source

-10dBm

-6dBm

-3dBm

Loss of one-way cable

5dB

10dB

15 dB

Measurement distance

20Km

40 Km

60Km

Initial blind zone

No blind zone

Signal to noise ratio

>40dB

Optical fiber interface

SM

Optical connector

FC/APC

Displaying screen

5.6’ touch screen

Input model

Touch screen LCD + buttons

Output model

Visible: vibration amplitude (touch screen LCD), audio: sound (corresponding excitation intensity)

Power supply

DC12V/3A

Battery

Lithium battery (7.4V 10.4Ah), continuous work ≥14 hours

Power

≤8W

Volume(H×W×L)

65×150×235mm

Weight

1.5Kg (including battery)

Working temperature

0~45℃

Storing temperature

-20~55℃

VFL visual failure location

Wavelength: 650nm

Output power (dBm): ≥-3

Maximum testing distance: 5km

Guarantee period

12 months

Remarks

1. add reflector at the end (reflected value > -3dB) to increase 5dB.

2. add reflector at the end (reflected value > -3dB) to increase 20Km.



Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
