Mini Video Optical Fiber Microscope

400 times optical zoom;

LCD video monitor present perfectly clear;

High resolution image;


  • Item NO.:

    S620
  • Order(MOQ):

    1
  • Product Detail

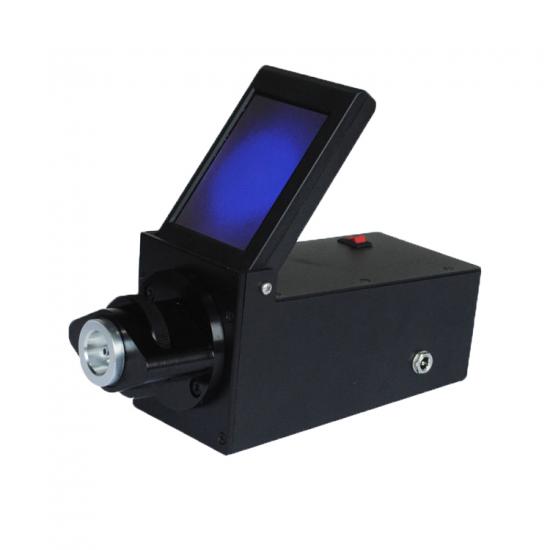

S620 Mini Video Optical Fiber Microscope


Features

A. High-definition image display:

1.400 times optical zoom;

2.LCD video monitor present perfectly clear;

3.High resolution image;

B. New Trimming function

Specially designed new new trimming function made fiber optic images can be easily adjusted to the center of the screen.

C. Super long  standby time

Through DC power supply,installing 2000mA rechargeable lithium battery, super long time standby mode

D. A variety of interface configuration

Can check all kinds of optical fiber connector as below:

*2.5mm PC connector interfaces

*2.5mm APC connector interfaces

*1.25mm connector interfaces(apply for LC,MU connector)

E. Absolutely safe and reliable

Built-in CCD camera (rather than the human eye) to watch the fiber end face, it is safe to your

eyes even you are testing the transmitting laser

Teachnical parameter

Instrument Model

S620

Application

optical fiber endface testing

Size

19.5cm*8cm*8.5cm

Power Supply

2000mA rechargeable battery

Weight

0.75kg

Optical Zoom

400 times

Image displayed

LCD video monitor(3.5 inch)

Check all kinds of optical fiber connector

*2.5mm PC connector interfaces

*2.5mm APC connector interfaces

*1.25mm connector interfaces(apply for LC,MU connector)
