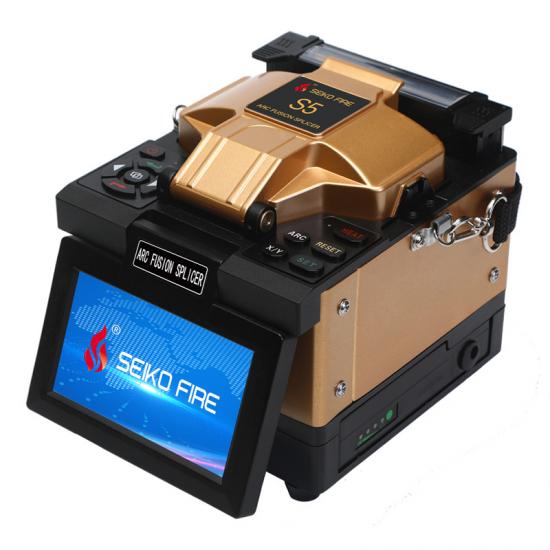

Handheld FTTH Fiber Fusion Splicer S5

Classic fiber splicing machine.

4.3-inch touch screen, small size, easy to carry.

Dust-resistant, water-resistant, shock-resistant, greater environment adaptability.

Item NO.:
S5
Order(MOQ):
1
Payment:
T/T, Paypal, Western Union, Moneygram, etc.
Product Origin:
China
Color:
Golden
Shipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
Lead Time：
in 2 Working Days

Inquire Now

Product Detail

Introduction

S5 is a stable performance optical fiber fusions splicer with 4 motors, mainly used for fusion and protection of common communications fibers. The battery of large-capacity ensures long-time field operations. As one of the leading manufacturers in China, we will offer you low price and best services.

Features

Core to core digital alignment

8s for splicing, 18s for tube-heating.

4.3-inch touch screen, small size, easy to carry.

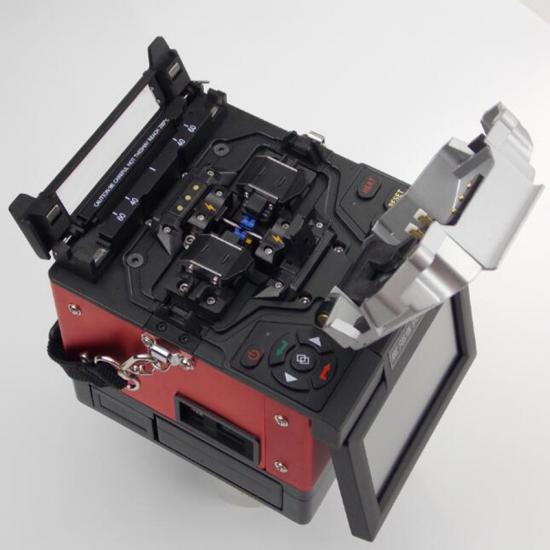

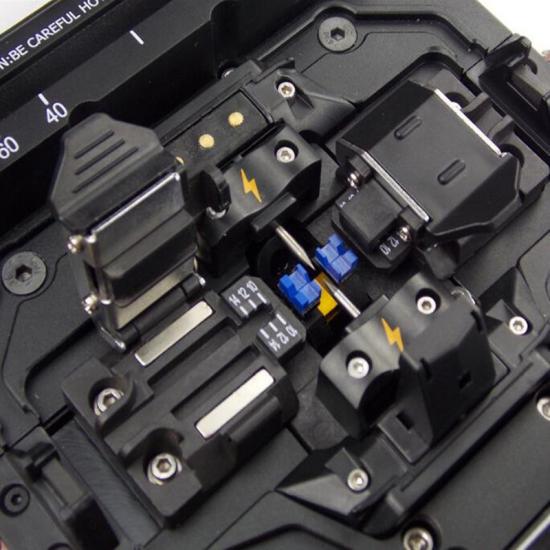

Three-in-one fiber fixture, suitable for all types of optic fibers.

High-power dual-LED light, convenient for night construction.

5200mAh removable lithium battery, 280 cycles splicing and heating.

ARC calibrated by temperature and air pressure automatically

No mirror design, reducing maintenance workload.

Apply to high & low temperature, high altitude and harsh environment.

Specifications

Fiber count	Single
Applicable fiber	SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), others (like G.657)
Splicing loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
Return loss	>60dB
Operate mode	Manual, Auto
Fiber alignment	Core to core alignment
Splicing time	Typical 8s
Heating time	Typical 18s
Heat shrinkable tube	60mm, 40mm
Fiber cleaved length	8-16mm
Fiber view magnification	350X (X or Y view), 150X (X and Y view)
Display	4.3-inch touch-screen LCD
Tension test	2N
Battery capacity	5200mAh removable inner Li-battery, 280 cycles splicing and heating after one-fully charged.
Electrode life	Around 5000 ARC discharges

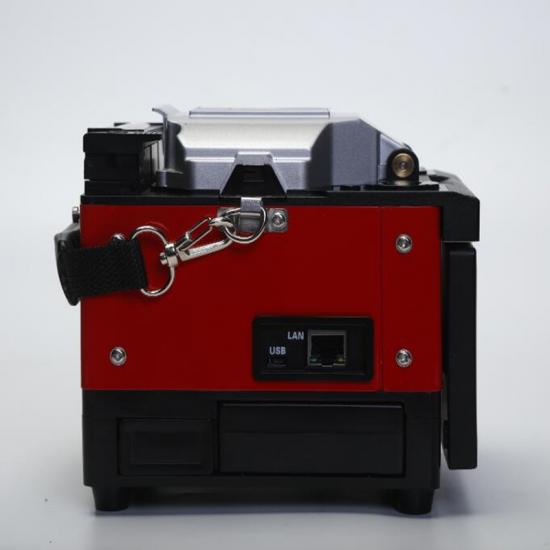

Interface	USB for data download and software update
Night construction	Built-in high-power dual-LED lights
Power supply	Adaptor, input: AC100-240V, output: DC13.5V/4.8A.
Operation condition	Temperature: -15-50℃, humidity: <95%RH (no condensation) Working altitude: 0-5000m. Resist max. wind speed: ≤15m/s
Weight	1.95 kg (including battery)
Dimension	130mm(L)×154mm(W)×132mm(H)

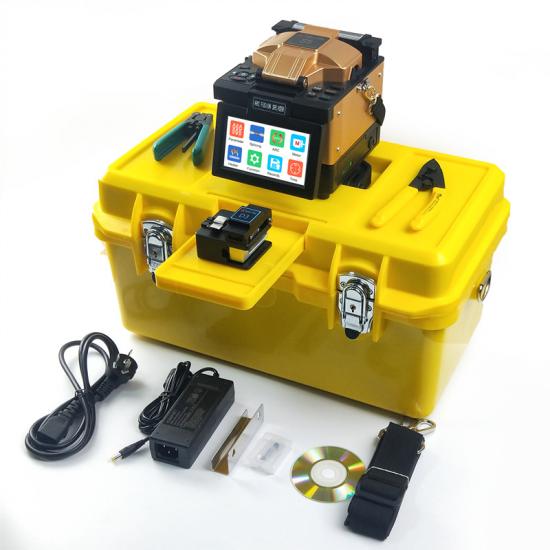

Standard Package

No	Items	Qty
1	Fusion splicer	1
2	Fiber cleaver	1
3	Fiber stripper	1
4	Drop cable stripper	1
5	AC adaptor	1
6	P.S cord	1
7	Spare electrodes	1 pair
8	Cooling tray	1
9	Manual (CD)	1
10	Carrying case	1
11	Calibration certificate	1
