Pocketsize, Lightweight and Easy-to-use. Apply to maintenance in Telecom & CATV, Fiber Optic Lab Testing etec.
High speed and high bandwidth fast Ethernet workgroup user needs.
Ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
Payment:
T/T, Paypal, Credit Card, Western Union, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 2 Working DaysIntroduction

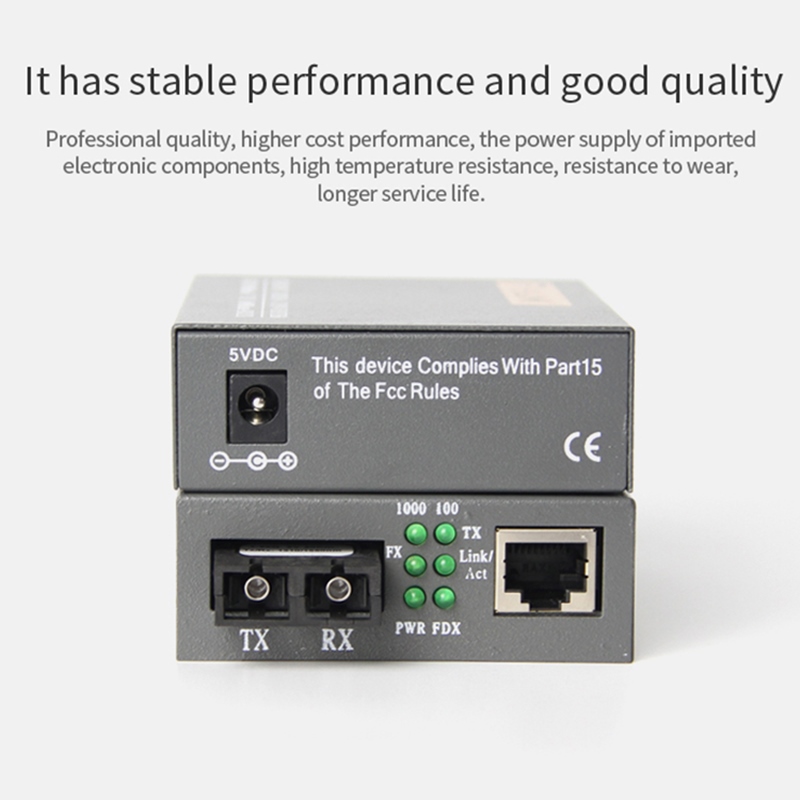

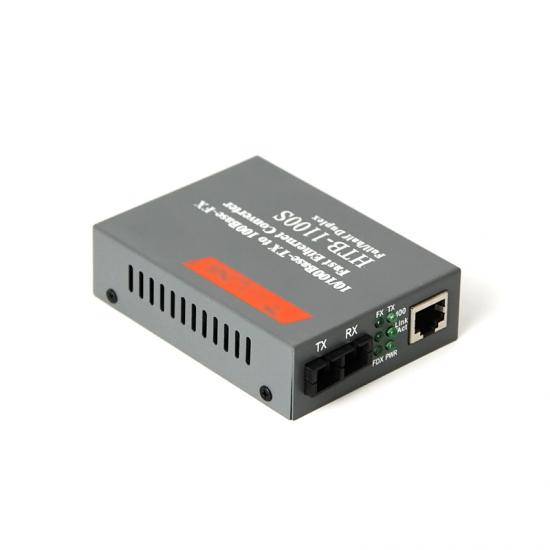

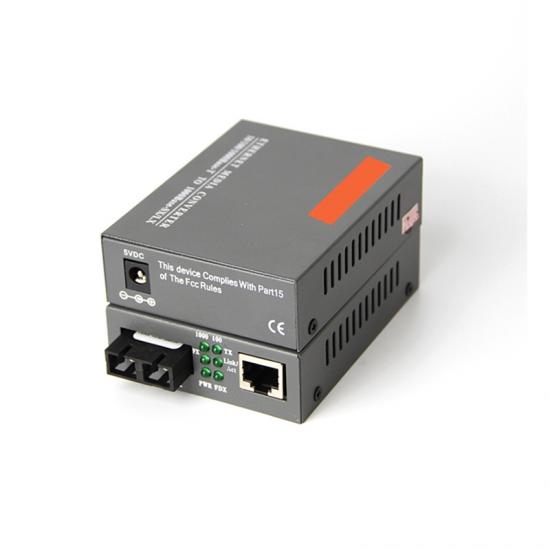

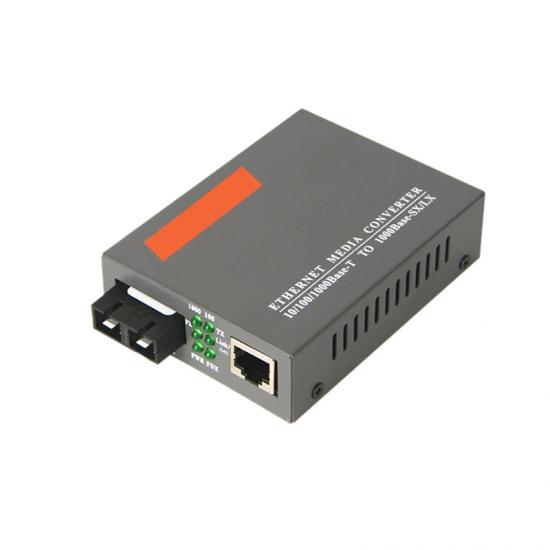

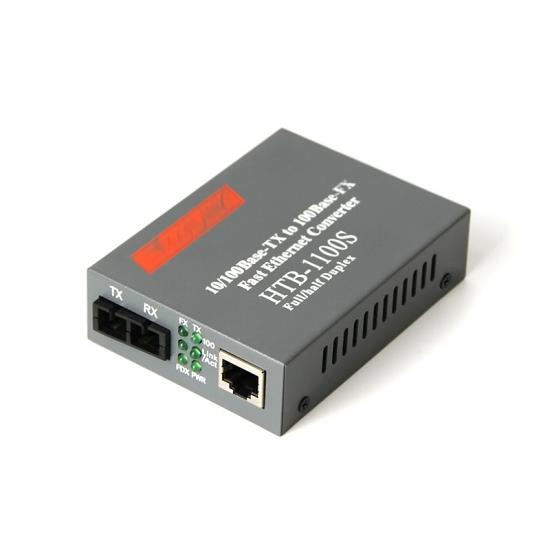

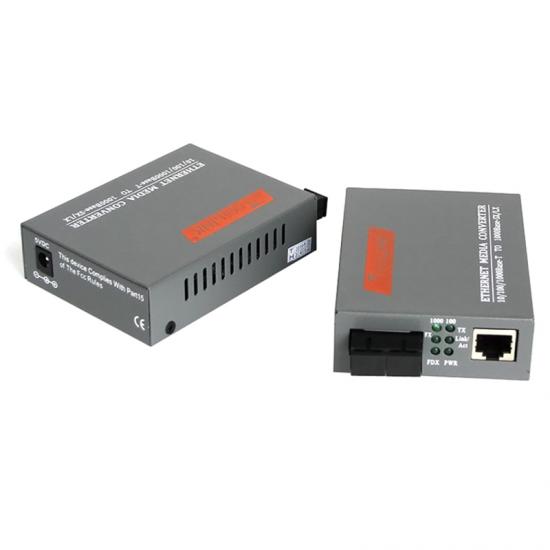

10/100M adaptive fast Ethernet optical transceiver. It can achieve two different twisted-pair cable and optical fiber transmission medium of transformation, relay base - TX 10/100 and 100 base - FX two different network segments, can satisfy the long distance, high speed and high bandwidth fast Ethernet workgroup user needs.
Features
Standard:
In conformity to IEEE 802.3 10 Base-T standard.
In conformity to IEEE 802.3u 100 Base-TX/FX standard.
Built in 128Kb RAM for data buffer.
Back pressure flow control for full duplex; IEEE802.3 X and half duplex.
Automatic identification of MDI/MDI-X cross line.
Forward 1600 bytes packets for management. Can also reach 9k bytes (optional,
Must inform us ahead).
Supports link fault pass through function.
Supports far end fault function.
Fiber connector:Choice from SC,ST,FC or LC connector for multimode and single
mode.
Built in a watchdog timer to monitor internal switch error.
LED display for link/activity,full/half,10M/100M.
Transmission distance can reach 2km for multimode and 120KM for single mode.
Support 4KV lighting protection(external power supply,Optional).Can be rack
mounted in 2U 14 slots chassis(external power supply).
Specifications
|
Size |
120x125x40mm |
|
Weight |
0.7kg |
|
Transmission rate |
100MB |
|
Fiber type |
Single Mode Single Fiber |
|
shell material |
Frosted metal |
|
Interface Type |
SC |
