Auto Test Data Transmission Analyzer

Overview

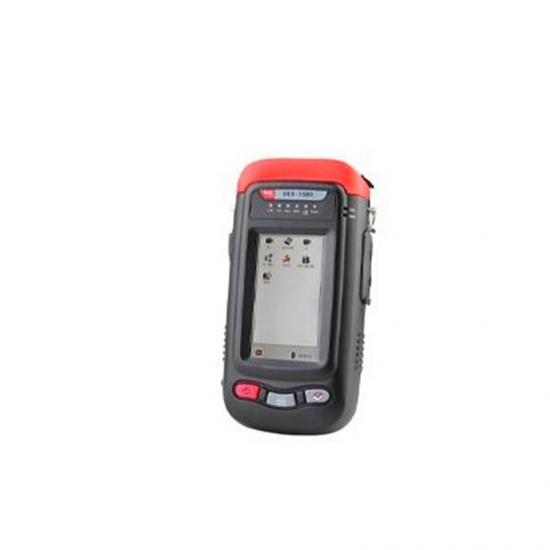

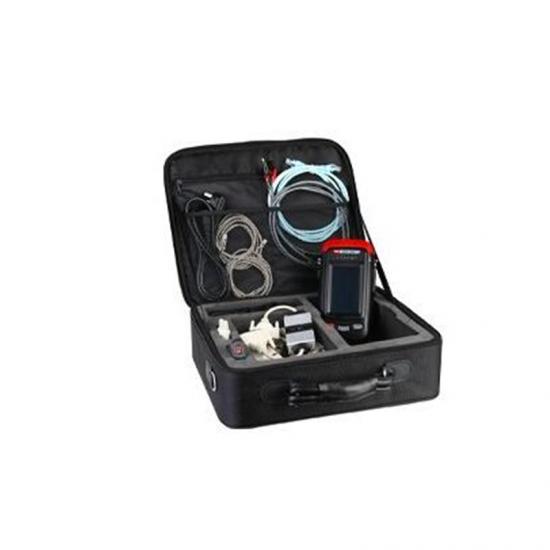

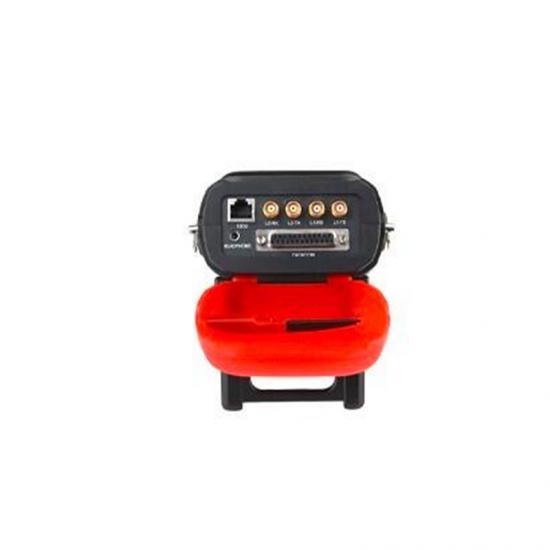

S1500 Data Transmission Analyzer, the latest tester developed by Seiko Fire, is the necessary tools for daily maintenance, troubleshooting and equipment installation and maintenance. It can be for 2M on-line monitoring as well as test from 50b/s to 2048kb/s with supported interfaces like G.703, V.24/RS232, V.35, V.36/RS449, X.21, EIA－530/530A and RS485/RS422. It also supports 2M jitter TX/RX test, 2M synchronous clock test and frame relay test.

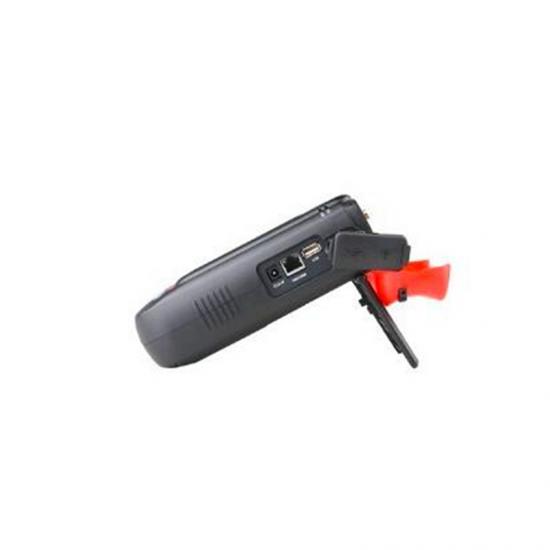

The S1500 is configured with large screen TFT color LCD with backlighting and built-in rechargeable Li battery for more than 8 hours’ working without external power supply. S1500 also supports RJ45 network interface and complete TCP/IP protocol with on-line upgrading.

This product is suitable for high-end applications like operators’ 2M equipment maintenance and overhaul and frame relay test of telecom VIP.

Functions

• G.703 E1 in-service / out of service Test
• Dual E1 ports monitoring
• Various alarming types and BER types insert
• Balance interface (75Ohm) / unbalanced interfaces(120Ohm)
• ITU-T G.821/G.826/M2100/2101 BER Analysis
• Slips analysis
• Clock slip
• Clock frequency offset test
• NX64K Test
• Frame Setting/ Analysis
• PCM / time slot detection
• Time slot data display
• Histogram display

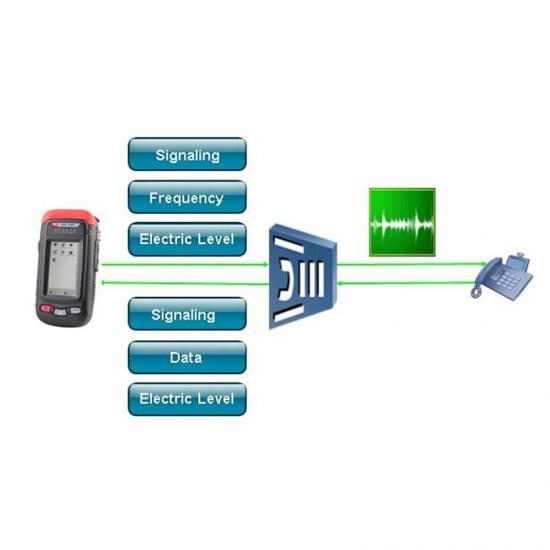

• Voice monitoring
• Auto test
• Loopback delay test
• Switching time test
• Audio Test (Optional)
• Pulse mask measurement (optional)
• E1 jitter Rx/Tx test (Optional)
• E1 synchronous clock test (Optional)
• V interface test (optional)

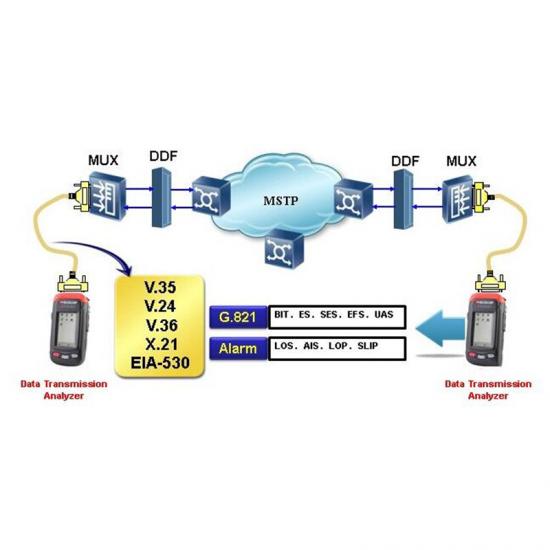

• V.24/RS232, V.35, V.36/RS449, EIA-530/530A, X.21 interface BER tests
• Various working mode setting
• ITU BER index analysis
• PING test
• IP address setting
• Ethernet connectivity test
• Frame Relay Test (Optional)
• Support E1, V.35 Port
• Support PPP/HDLC Protocol

Features

• Color TFT LCD with touch screen
• Dual E1 Test
• 2M synchronous clock input/output
• 2M clock jitter Rx/Tx test
• 2M PING test
• Frame relay test
• PC can perform remote control for tester through Ethernet
• Large capacity Li battery guarantees more than 8 hours’ working without external
• Power supply
• Large capacity digital storage

Applications

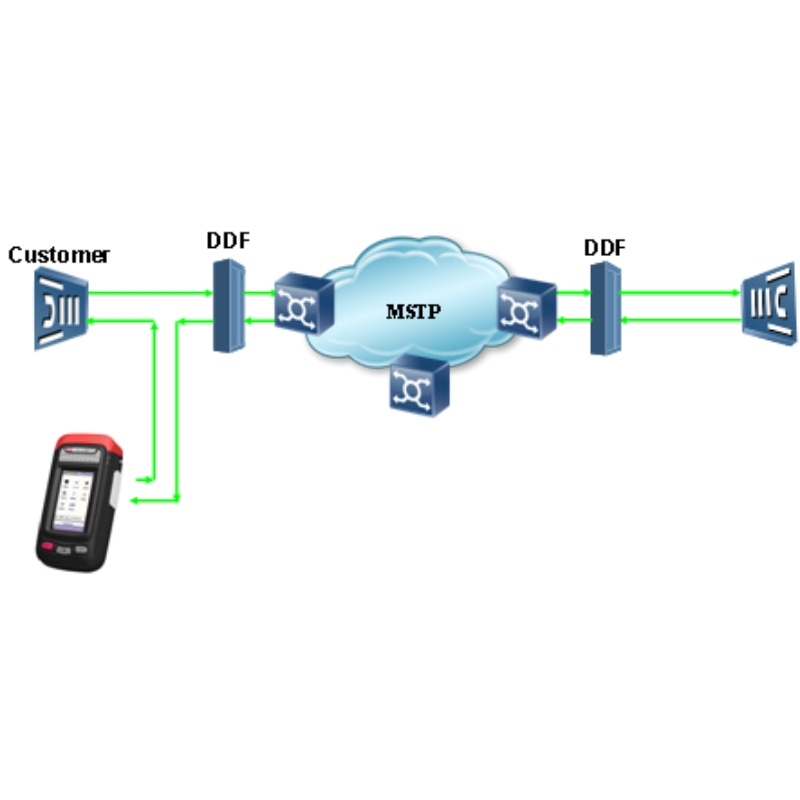

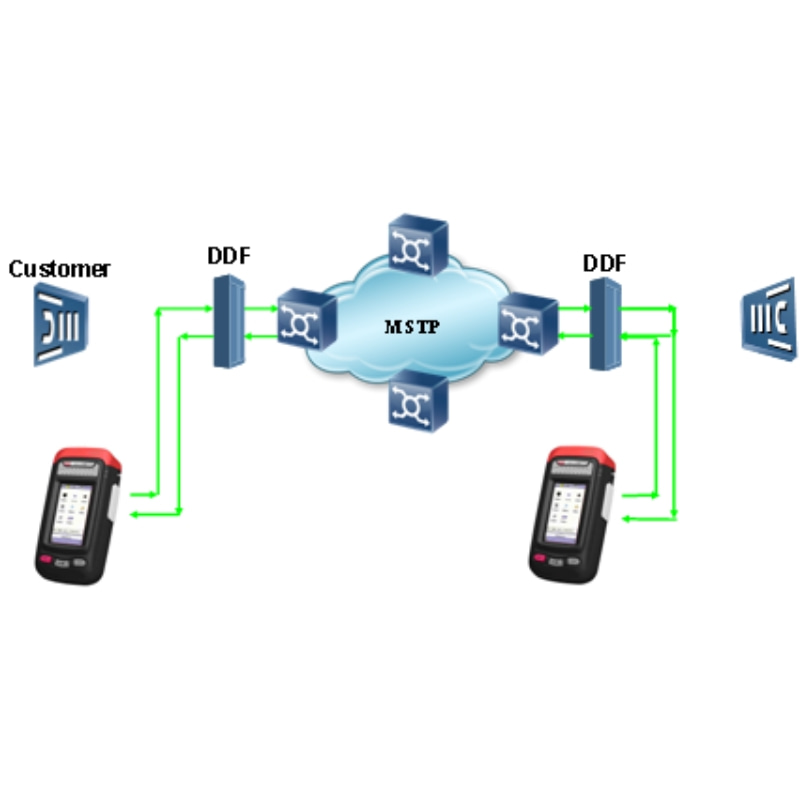

Out of service loopback Test

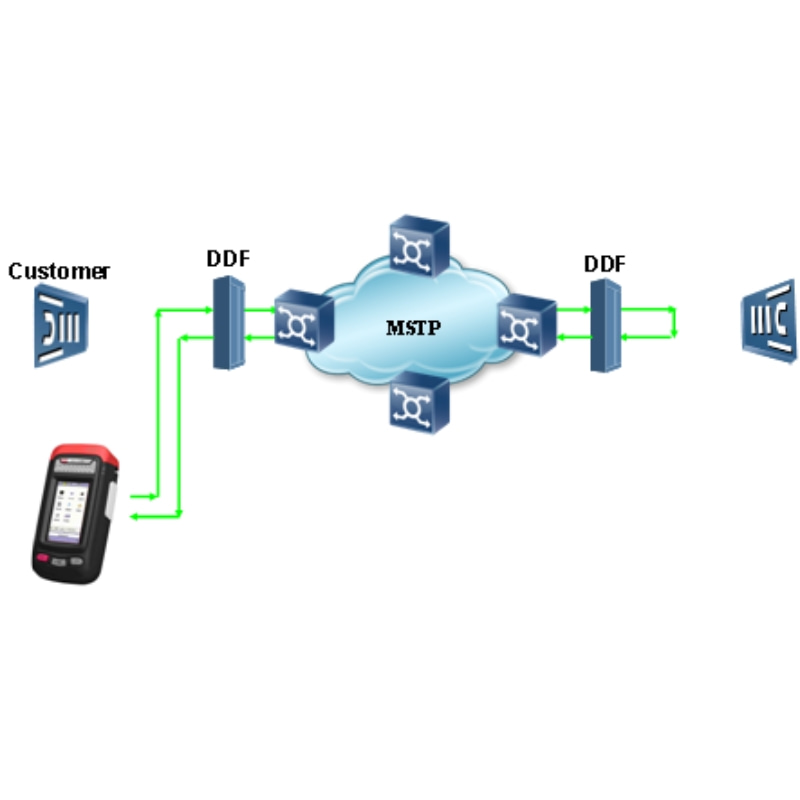

Out of service end-to-end Test

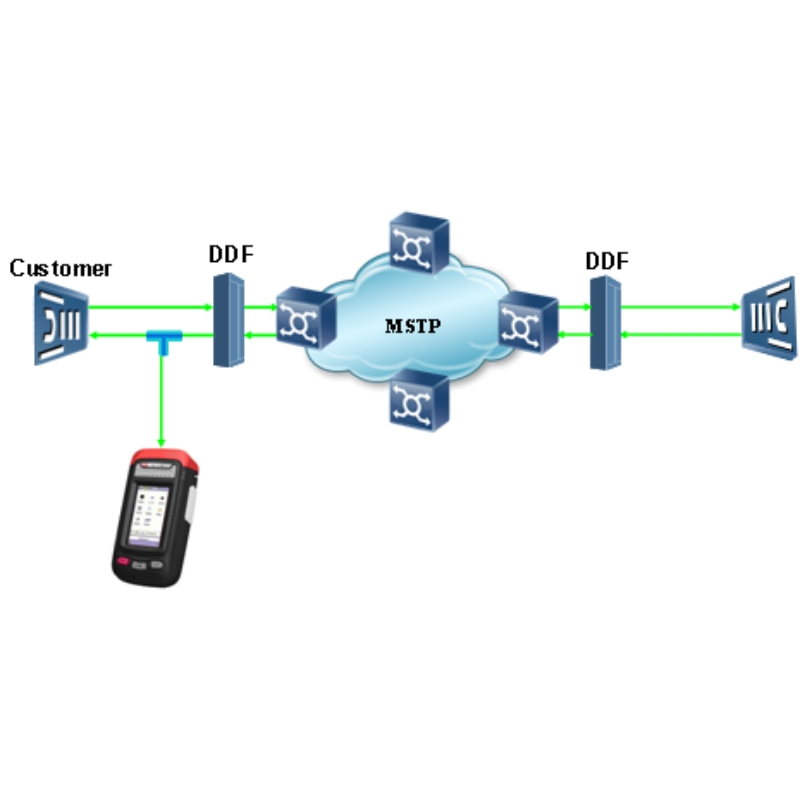

In-service Test

Throughput Test

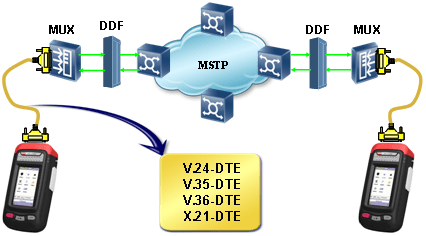

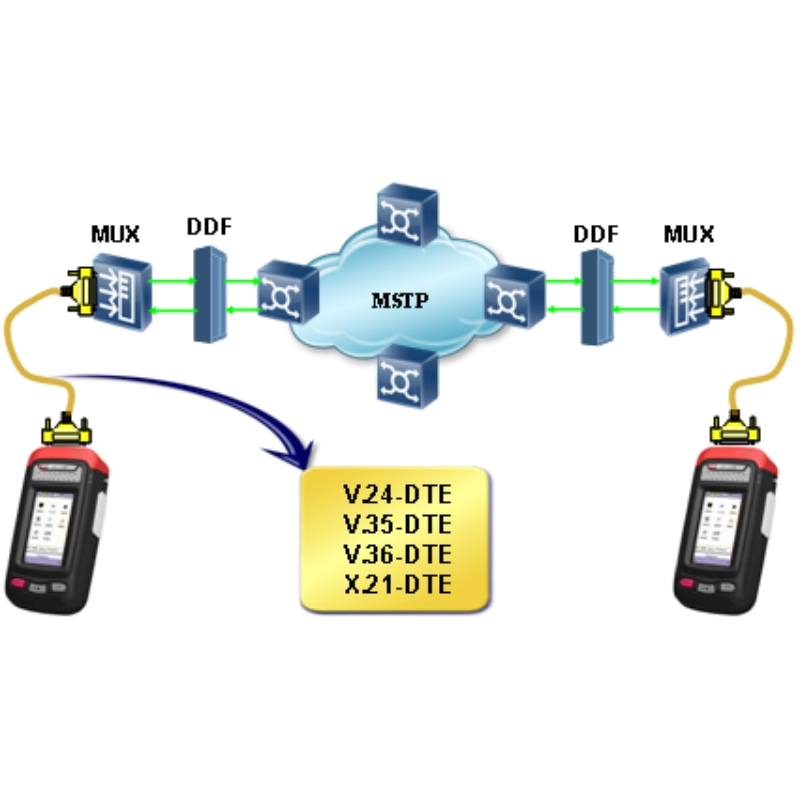

V Interface Test (Optional)

Audio Test (Optional)

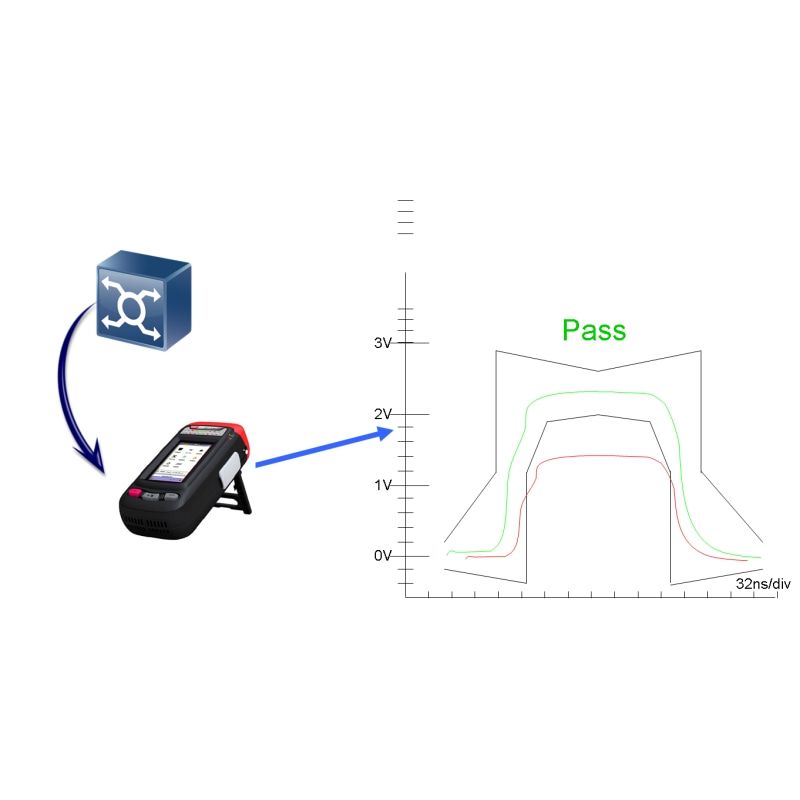

E1 Signal Template (Optional)

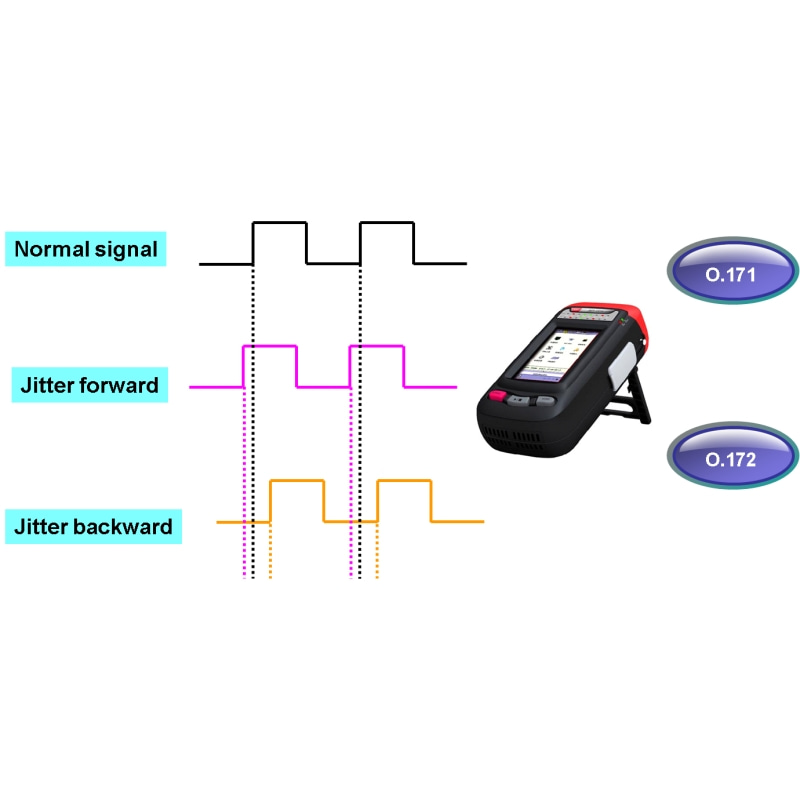

Jitter Test (Optional)

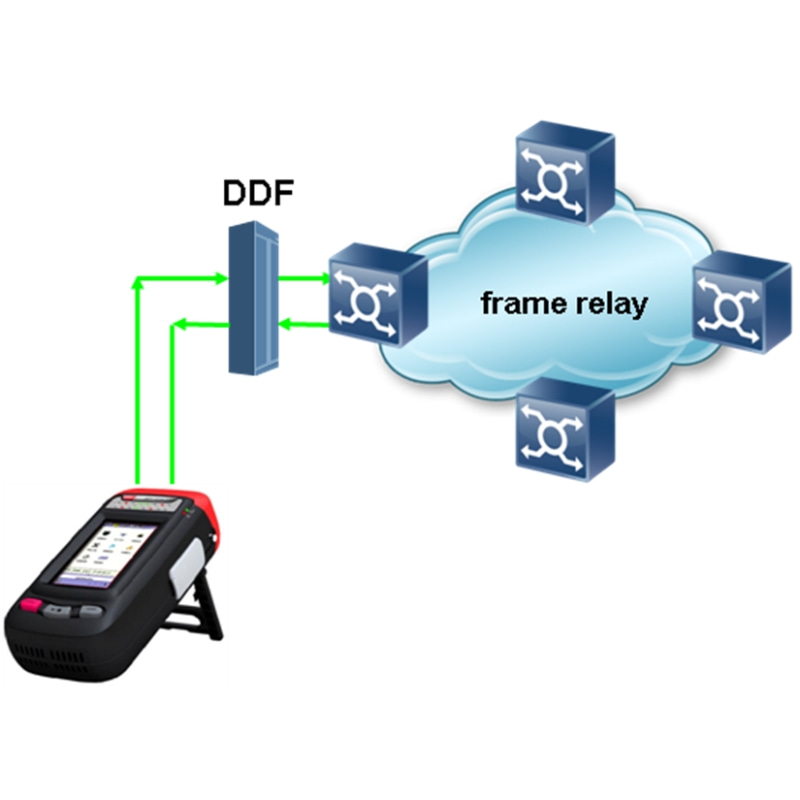

Frame Relay Test (Optional)
