Latest Optical Tester Data Transmission Analyzer

Introduction

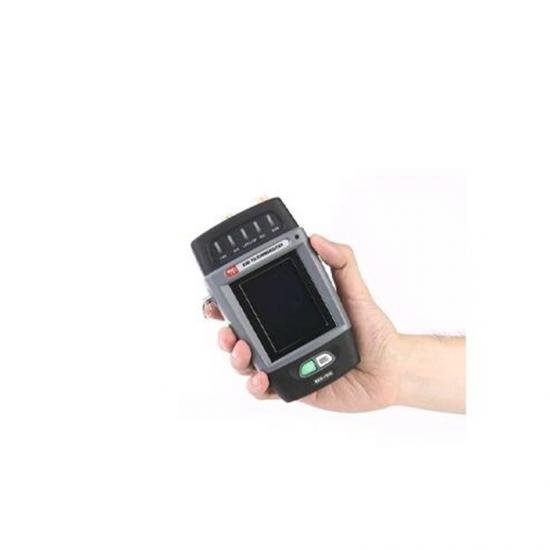

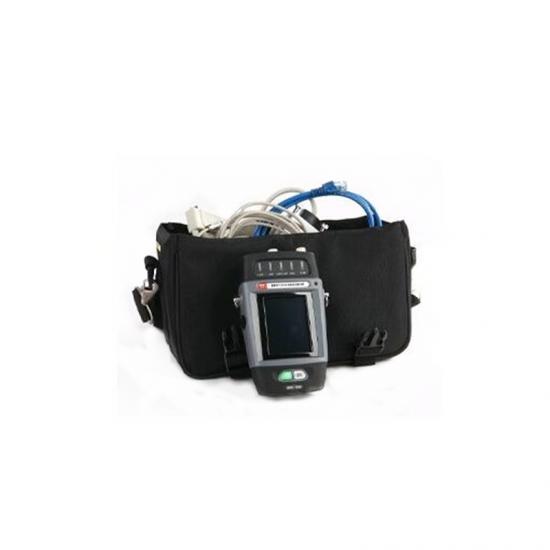

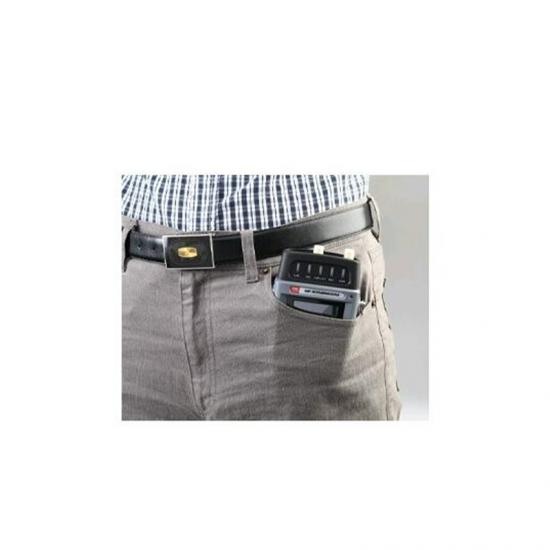

S1300 Data Transmission Analyzer is the latest compact handheld tester developed by Seikofire Technology. It
can be for E1 in-service monitoring as well as BER testing from 50b/s to 2048kb/s, which is the necessary tool for network equipment installation, troubleshooting and maintenance.

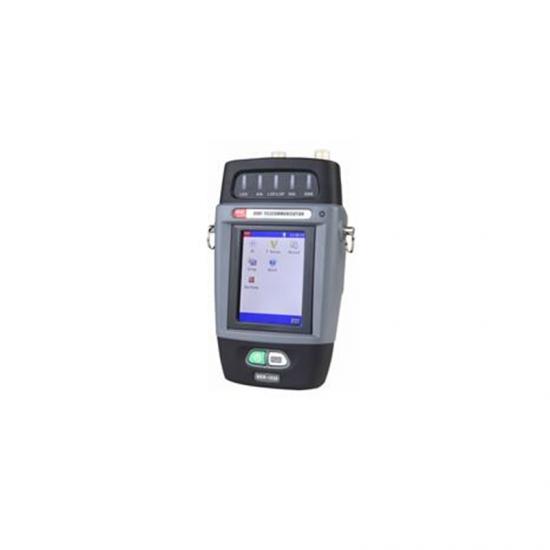

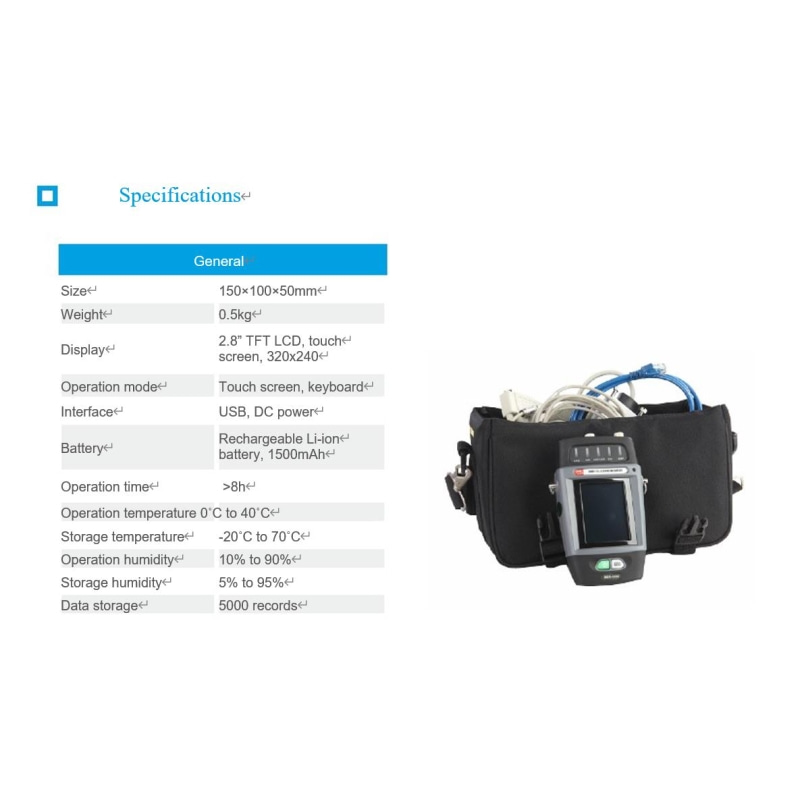

S1300 is configured with large touch screen TFT color LCD, and built-in rechargeable Li-ion battery for
more than 8 hours field operation without external power supply. S1300 also supports large capacity
records storage and online upgrade
Function
G.703 E1 testing

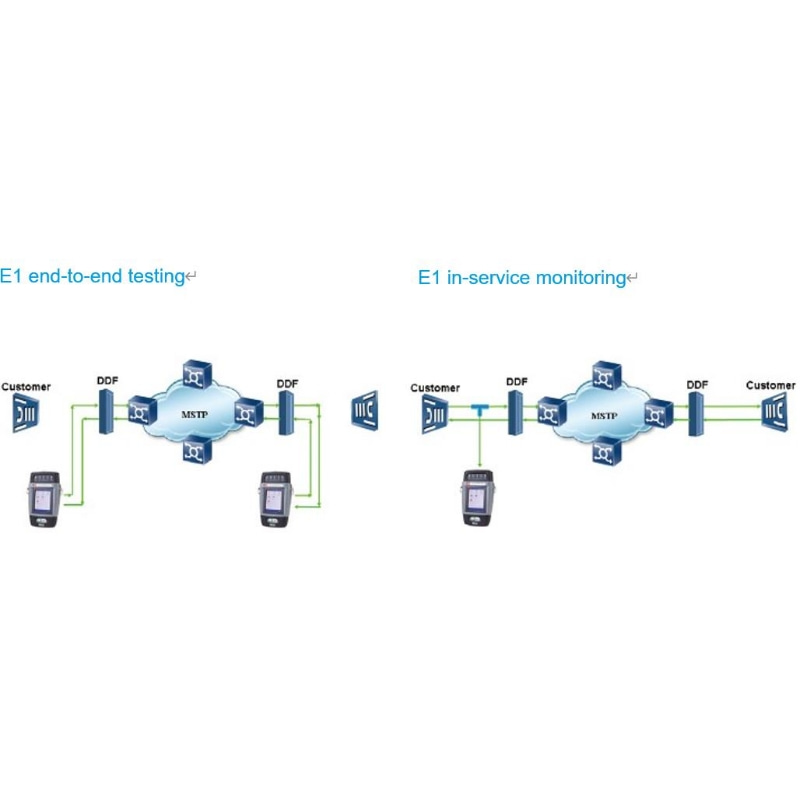

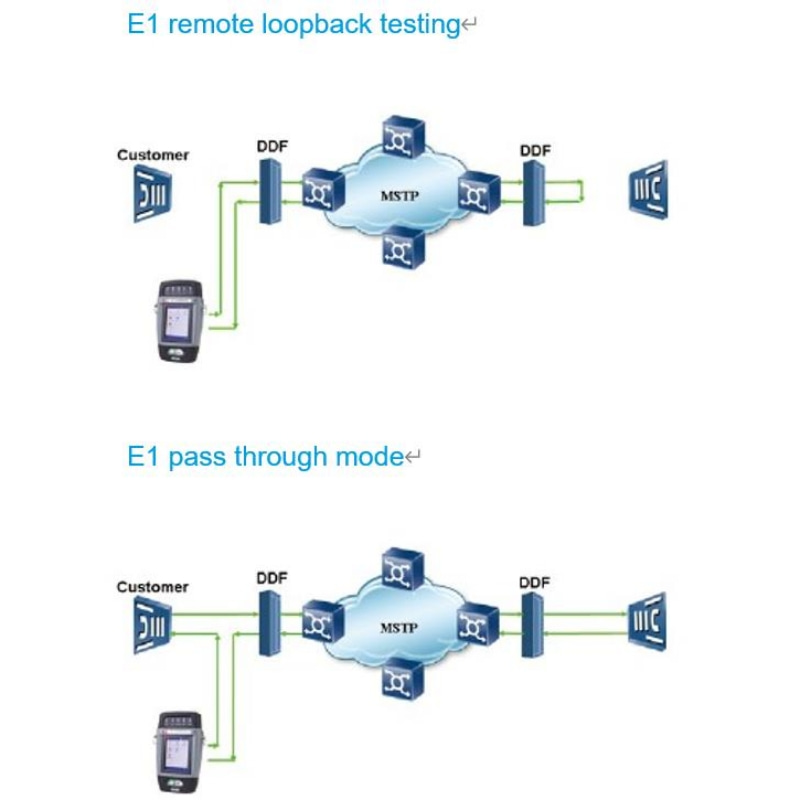

• - Out of service testing and in-service monitoring
• - Alarm generation and error insertion
• - Performance analysis according to ITU-Trecommendation
• - Pattern slips analysis
• - Clock slips analysis
• - Clock frequency offset testing
• - Nx64K testing
• - Frame setting and analysis
• - PCM, time slot detection
• - Time slot data display
• - Histogram display
• - Voice monitoring
• - Auto testing
• - Round trip delay testing
• - APS, service disruption testing

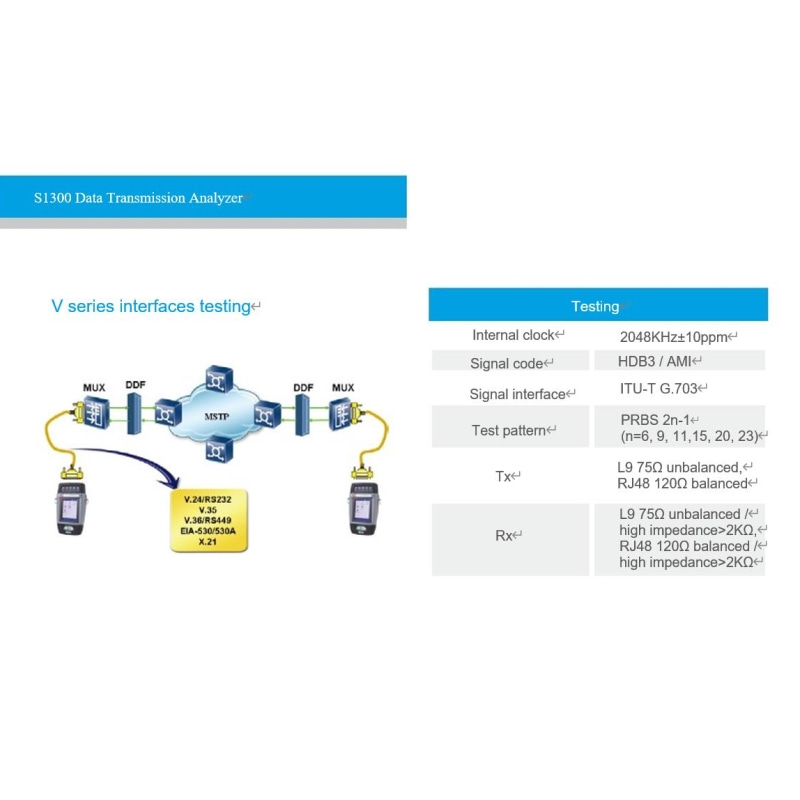

• - V.24/RS232, V.35, V.36/RS449, EIA-530/530A, X.21 interface BER testing
• - Performance analysis according to ITU-T recommendation

• Color touch screen TFT LCD
• Various errors insertion and detection, such as bit, Code, FAS, CRC
• Large capacity Li-ion battery guarantees more than 8 hours operation
• Large capacity data storage, 5000 records
• Test records can be transferred to PC via USB
• Powerful PC software E1 data management system for comprehensive management and analysis of test data
