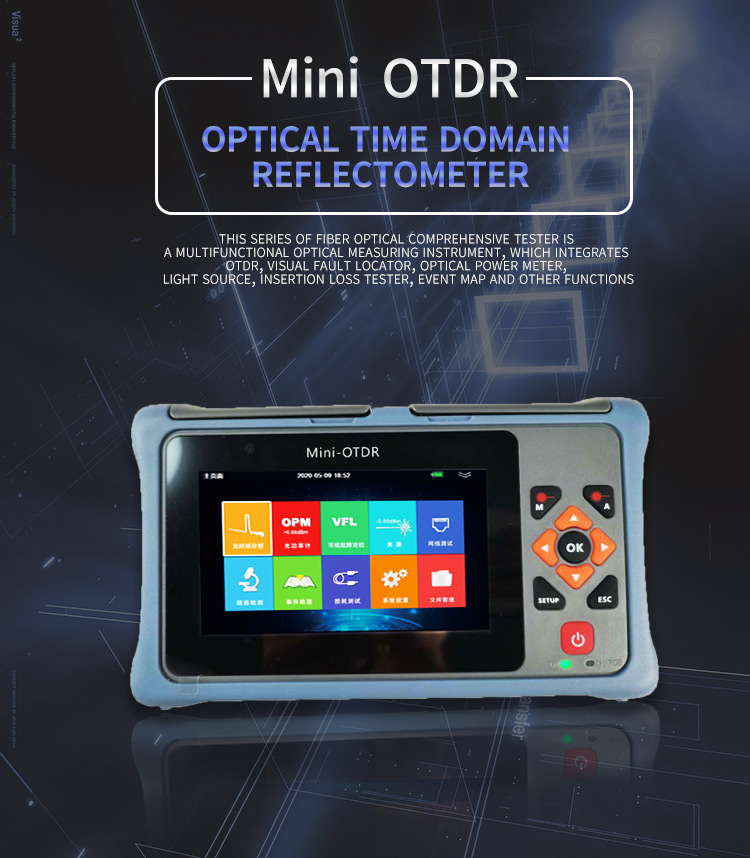

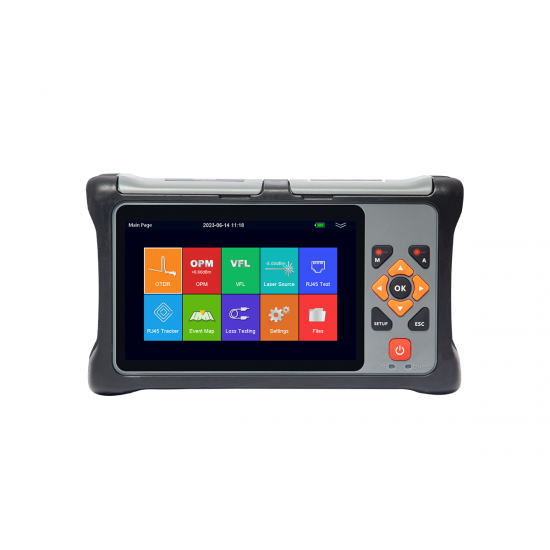

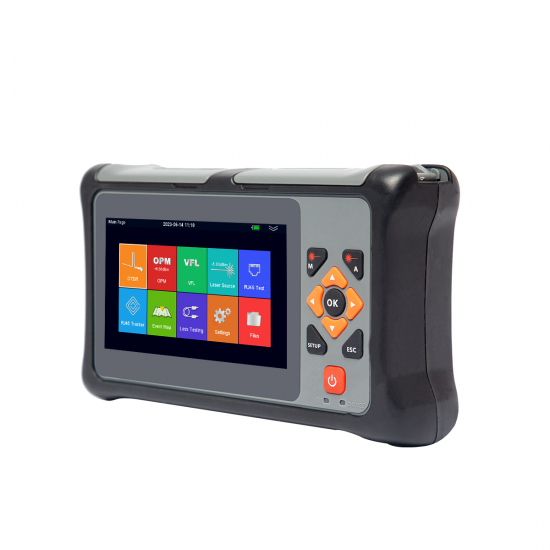

New Design Mini-Pro OTDR tester S740

Latest 9-in-1 functions mini OTDR Tester.

Cost-effective optical network analysis test equipment, with the features of lightweight, easily useable.

  • Item NO.:

    S740
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

Optical time domain reflectometer S740 is a new generation of portable and intelligent measuring instrument designed by SeikoFire Communication Technology for testing optical fiber communication system.

Instrument characteristics

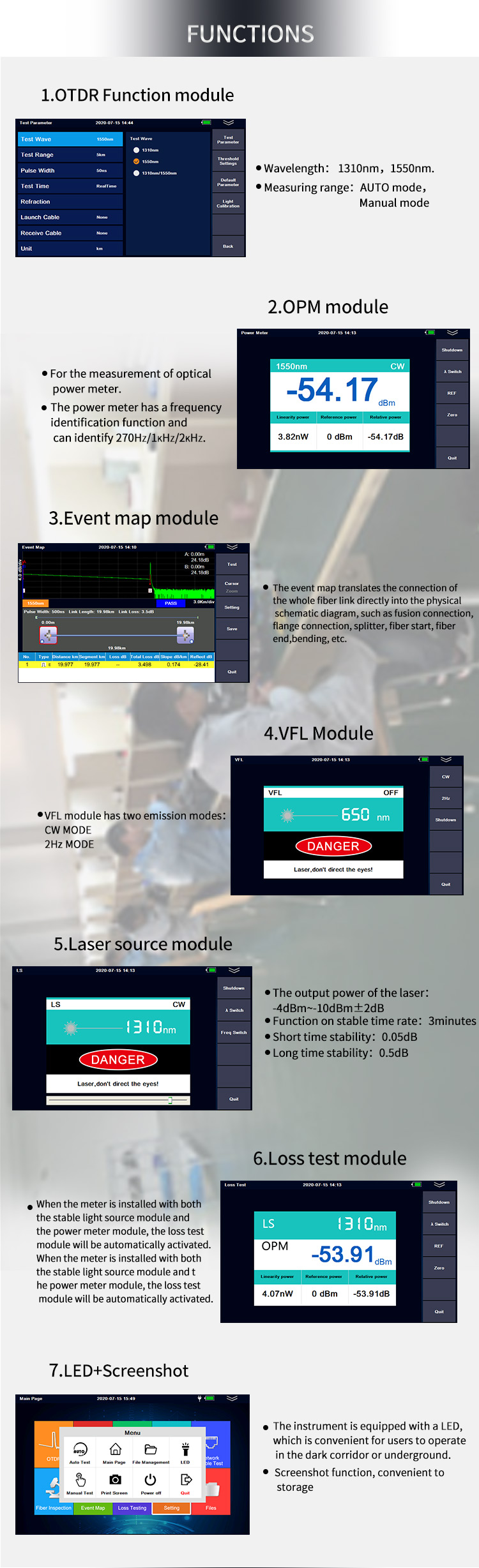

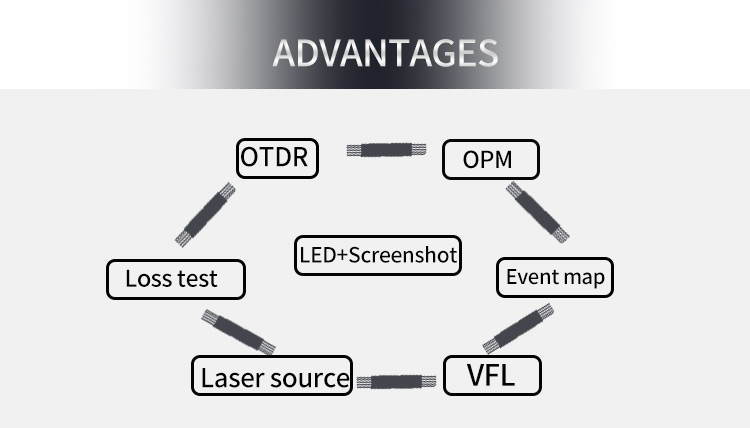

1. 9-in-1 functions

2. The 4.3-inch full-view capacitive touch-screen supports multi-touch

3. Cover plate type tempered glass panel, don't worry about screen scratch.

4. Support horizontal version, vertical version, perfect fusion of the two habits of user operations.

5. Support charging treasure charging, do not worry about the battery is not enough.

6. In line with the international standards of test data with perfect simulation software, so that your report is more simple.

7. Sink type light port design, so that the instrument light port can get better protection.

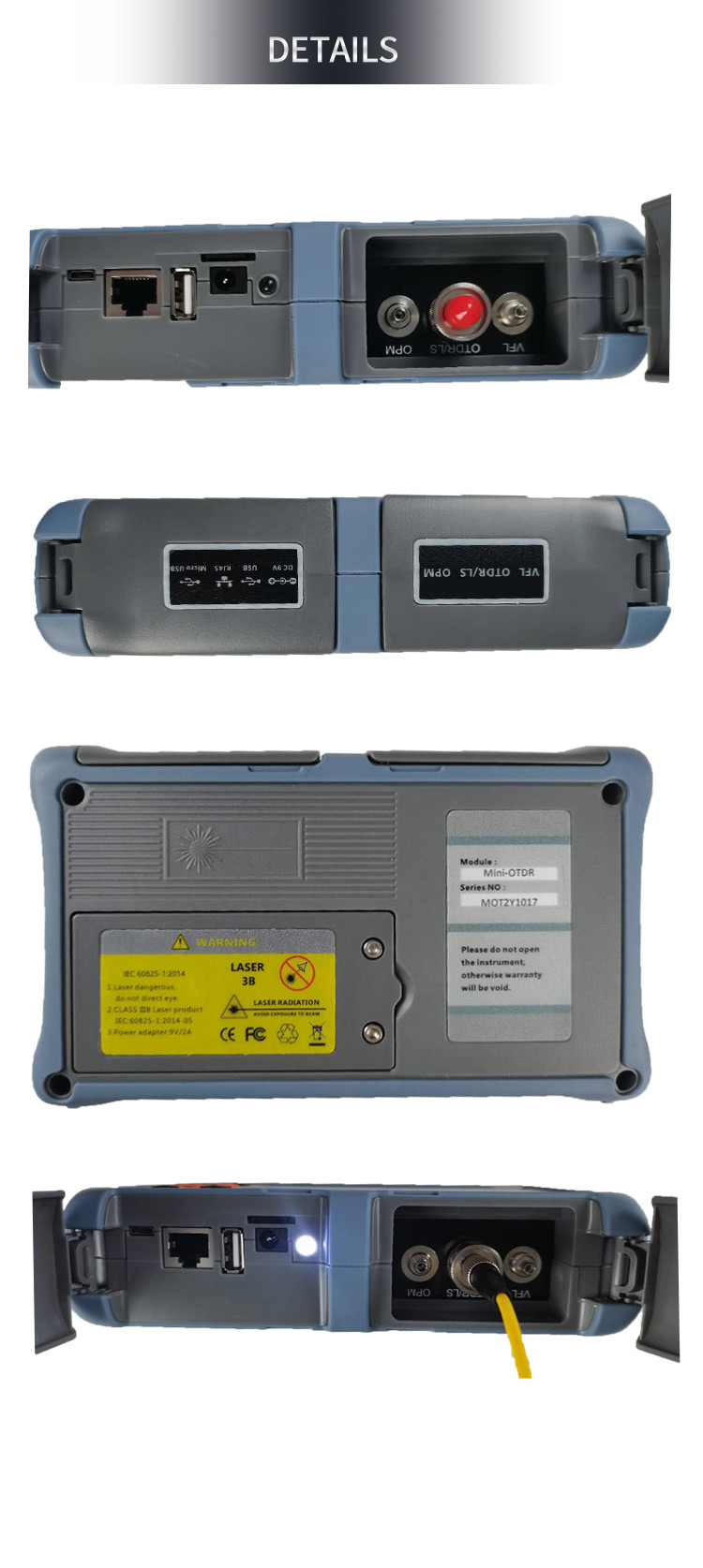

8. Support pen-driver, SD card and Micro USB export data protection.

9. Any interface supports screen capture.

Physical indicators

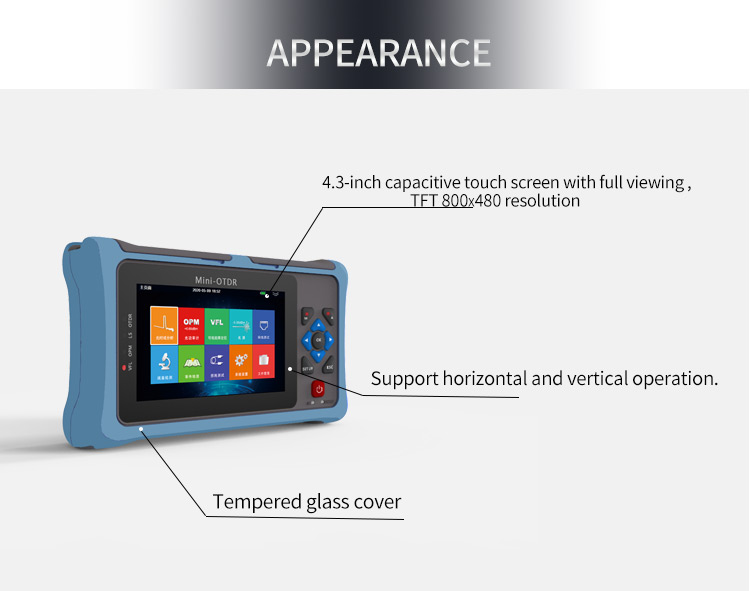

1. 4.3-inch capacitive touch screen with full viewing , TFT 800x480 resolution

2. Lithium battery: 5200mAh/ 3.7v, standby time > for 10 hours

3. Size: 175x105x45mm, weight: 560g (including battery)

4. Working temperature: -10~+55°C, storage temperature: -20~+80°C

Specifications

Measuring range

100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km/90km

Sampling resolution

Min. 0.2m

The sampling point

64,000 points

linearity

≤0.05dB/dB

Loss threshold

0.01dB

Loss resolution

0.001dB

Range resolution

0.01m

Range accuracy

±(0.5m+Range×3×10-5+Sampling resolution)

(Excluding refractive index error)

Memory

>40000

VFL

10mW, CW/2Hz

Data interface

2pcs USB (Type A×1, Micro usb×1), SD card

Screen

4.3-inch TFT-LCD (Standard distribution capacity touch screen)

Battery

3.7V/5200mAh

temperature

Working temperature: -10℃ ~ +55℃;

Storage temperature: -20℃ ~ +80℃

humidity

≤95%(No condensation)

Size/Weight

175x105x45mm/0.56kg(including battery)

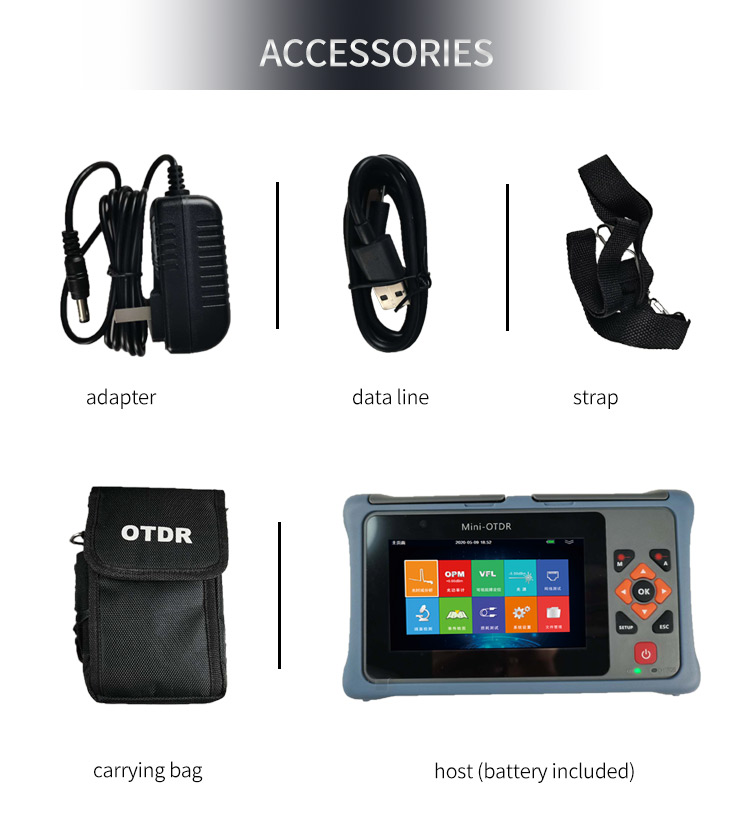

Attachment

Power adapter, lithium battery, FC adaptor, USB cable, quick guide, portable package

OPM

Type A: -10dBm ~ -70dBm; Type B: +26dBm ~ -50dBm

LS

The output power: -5dBm,

Modulation frequency: CW/270Hz/1KHz/2KHz

Network Cable test

Support network wire sequence testing and wire alignment


Module

Wavelength(nm)

Dynamic Range(dB)

Distance Scope(km)

Dual Wavelength

S740-22D

1310/1550

22/20

70

S740-24D

1310/1550

24/22

80

S740-26D

1310/1550

26/24

90

Single Wavelength

S740-20S

1550

20

70

S740-22S

1550

22

80
