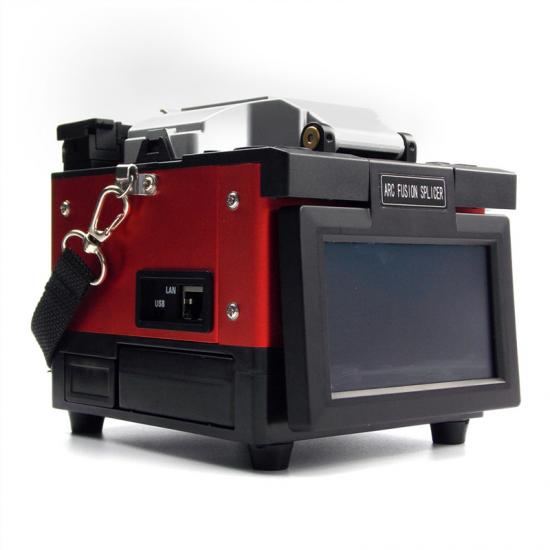

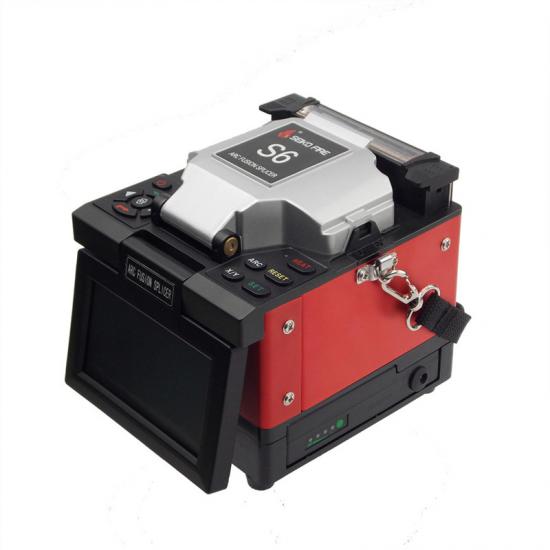

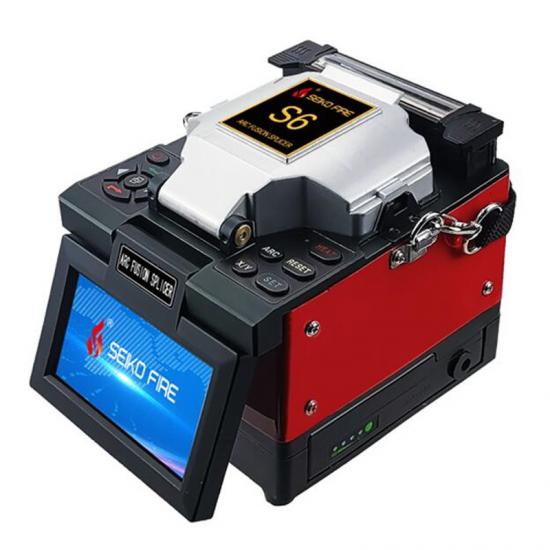

Automatic Smart Optical Fiber Fusion Splicer S6

Latest designed fiber fusion splicer, compact & light weight.

8s for splicing, 18s for tube-heating.

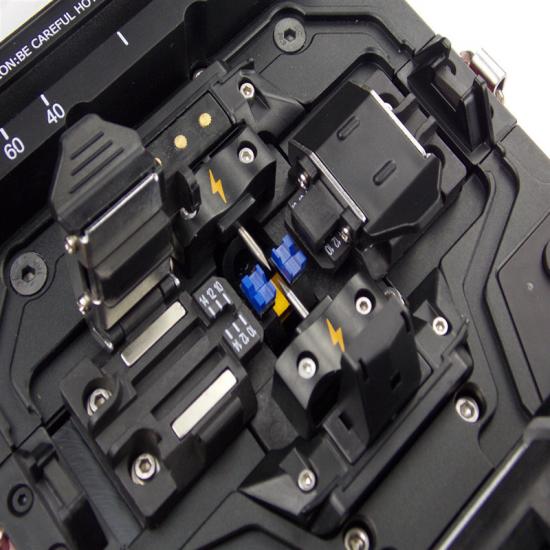

Three-in-one fiber fixture, suitable for all types of optic fibers.

  • Item NO.:

    S6
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Red
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

S6 is a totally automatic optical fiber fusion splicer with high performance and low loss, it has new fiber imagery system and digital design.Widely used in the metropolitan area network construction and FTTX fiber engineering.


Features

  • Core to core digital alignment
  • 8s for splicing, 18s for tube-heating.
  • 4.3-inch touch screen, small size, easy to carry.
  • High-power dual-LED light, convenient for night construction.
  • 5200mAh removable lithium battery, 280 cycles splicing and heating.
  • ARC calibrated by temperature and air pressure automatically
  • No mirror design, reducing maintenance workload.
  • Apply to high & low temperature, high altitude and harsh environment.


Specifications

Fiber count

Single

Applicable fiber

SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), others (like G.657)

Splicing loss

0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)

Return loss

>60dB

Operate mode

Manual, Auto

Fiber alignment

Core to core alignment

Splicing time

Typical 8s

Heating time

Typical 18s

Heat shrinkable tube

60mm, 40mm

Fiber cleaved length

8-16mm

Fiber view magnification

350X (X or Y view), 150X (X and Y view)

Display

4.3-inch touch-screen LCD

Tension test

2N

Battery capacity

5200mAh removable inner Li-battery, 280 cycles splicing and heating after one-fully charged.

Electrode life

Around 5000 ARC discharges

Interface

USB for data download and software update

Night construction

Built-inhigh-power dual-LED lights

Power supply

Adaptor, input: AC100-240V, output: DC13.5V/4.8A.

Operation condition

Temperature: -15-50℃, humidity: <95%RH (no condensation)

Working altitude: 0-5000m. Resist max. wind speed: ≤15m/s

Weight

1.95 kg (including battery)

Dimension

130mm(L)×154mm(W)×132mm(H)

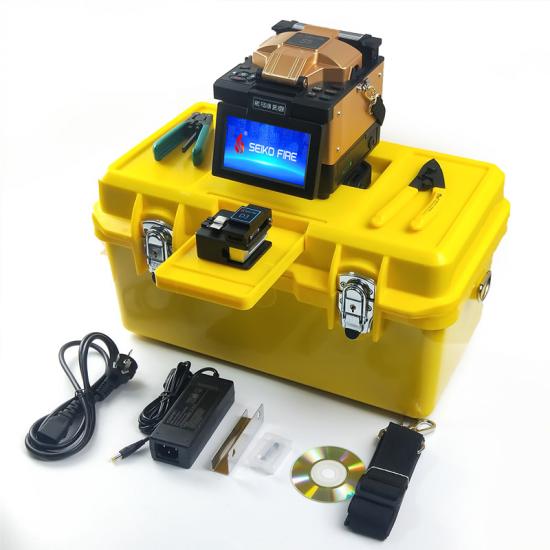

Standard Package

No

Items

Qty

1

Fusion splicer

1

2

Fiber cleaver

1

3

Fiber stripper

1

4

Drop cable stripper

1

5

AC adaptor

1

6

P.S cord

1

7

Spare electrodes

1 pair

8

Cooling tray

1

9

Manual (CD)

1

10

Carrying case

1

11

Calibration certificate

1
