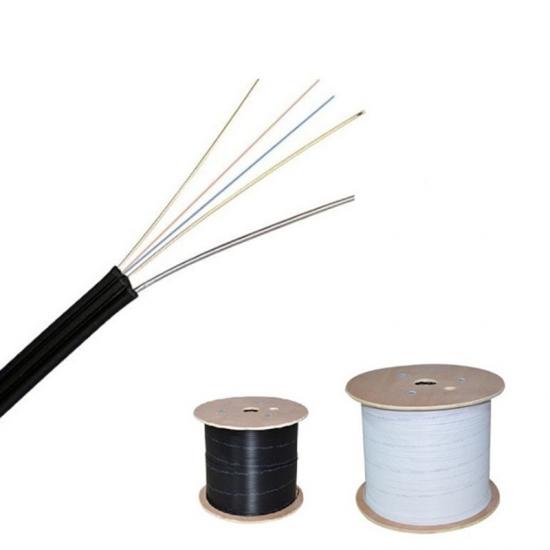

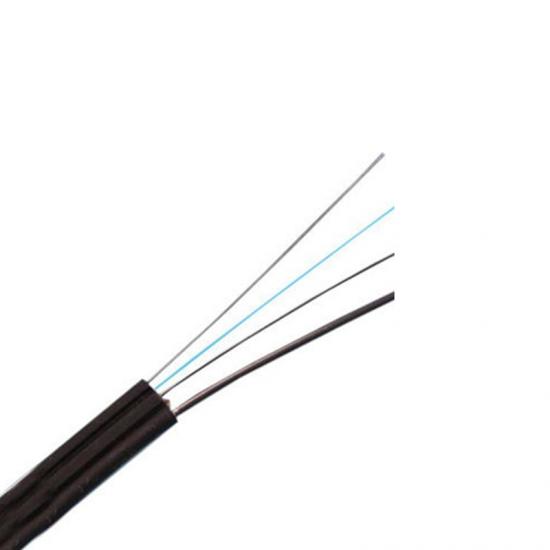

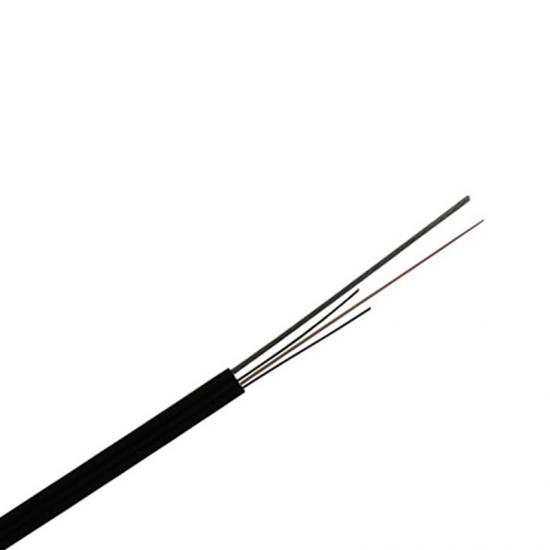

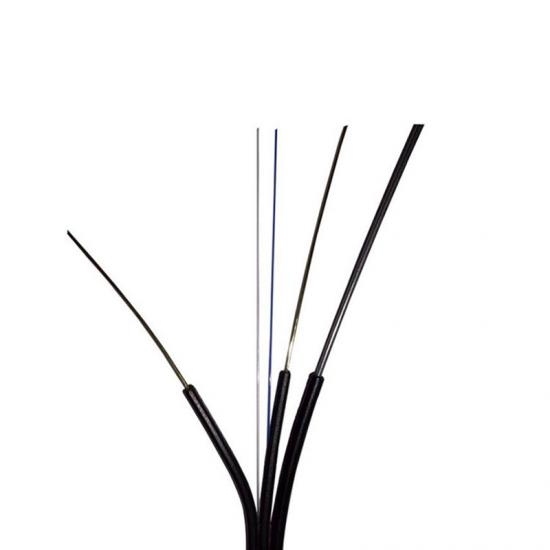

Outdoor Jacket FTTH Fiber Optic Drop Cable

G652d G657A1 Single Mode Outdoor 1/2/4/6/8/12 Core FTTH Fiber Drop Cable.

Simple structure,light weight and high practicability.


  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

The FTTH indoor cable is centered on the optical communication unit, with two parallel non-metallic reinforcing elements (FRP) placed on both sides, and finally, a black or colored low-smoke halogen-free sheath is extruded.


Features


  • Special bend-resistant fiber to provide greater bandwidth and enhance network transmission characteristics.
  • Two parallel FRPs make the cable have good compression resistance and protect the fiber.
  • The cable has a simple structure, light weight and strong practicability.
  • Unique groove design, easy to peel, easy to connect, simplify installation and maintenance.
  • Low-smoke, halogen-free flame retardant jacket, environmentally friendly.



Specifications

Fiber count

1/2/4/6/8/12

Color Of fiber

Blue Orange Green Brown

Fiber Type

G652D/G657A1/G657A2

Strength member

Steel wire/FRP/KFRP

Supporting messenger wire

1.0MM*x1 steel wire

Outer sheath

LSZH Lower smoke zero halogen frame retardant & UV Anti

Cable Diameter dimensions

2.0( Height) × 5.0W ± 0.1 mm(width)

Operation temperature range

-20 ℃ to + 70 ℃

Installation temperature range

-20 ℃ to + 60 ℃

Transport and storage temperature range

-20 ℃ to + 70 ℃

Tension Load (N)

Short term: 800N  Long term: 500N

Crush Load(N)

Long term: 1000N/100mm;  Short term: 2200N/100mm

Minimal installation bending radius

30 x OD

Minimal operation bending radius

15 x OD

Cable marking

The marking length 1meter apart , as required.
