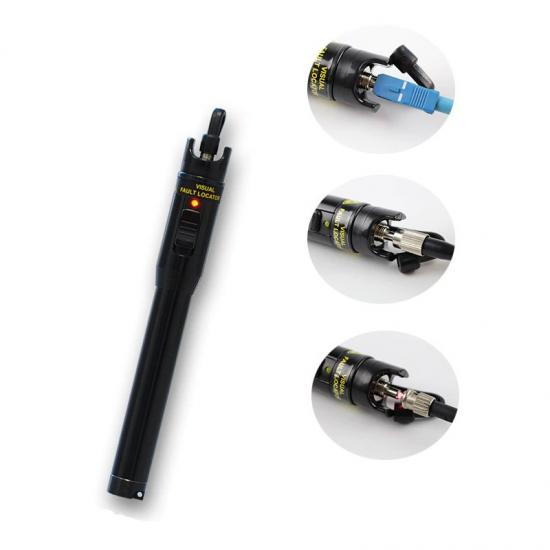

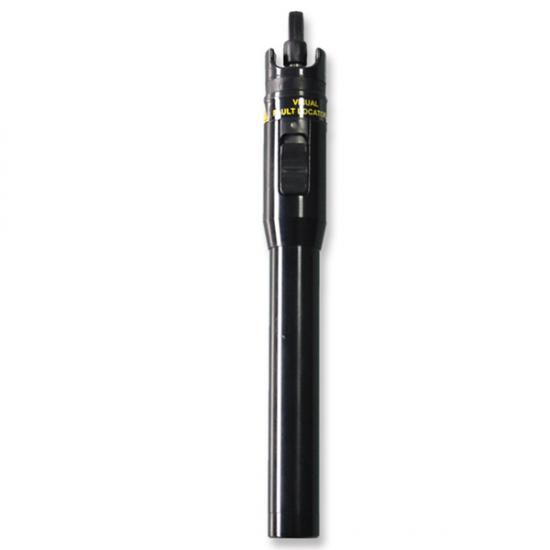

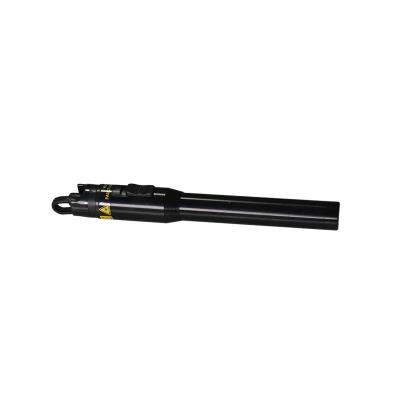

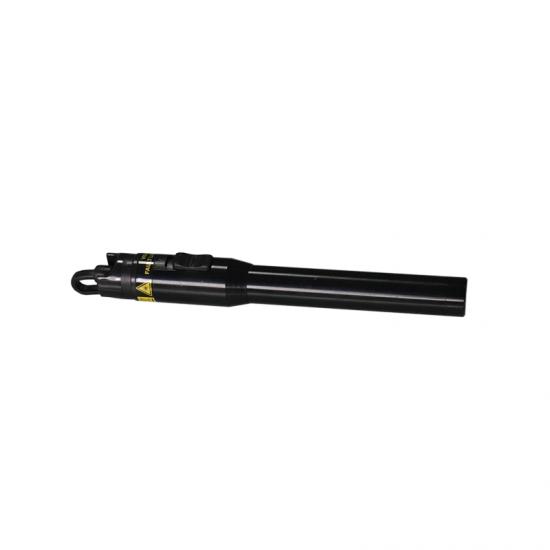

Pen Fiber Optic Visual Fault Locator VFL

Rugged and waterproof design.

Pocket size and light weight, easy to use.

  • Item NO.:

    S207
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

This is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network.


Features

  • Metal case, Rugged and durable
  • Low battery indication, to avoid leakage and wrong judgment
  • ESD protection design, Protect the LD effectively
  • Integrated case, to avoid the case intermediate broken
  • Re-changeable ceramic tube, to avoid returning to manufacturer for this small fault
  • Long battery life, up to 60 hours1mW


Specifications

Central Wavelength

650nm±10nm (635nm can be required on request)

Emitter Type

FP-LD

Output Power (mw)

1, 10, 20, 30, 50


Optical Connector

2.5mm universal connector

For 1.25mm connectors, FC (Male)-LC (Female) convertor

can be optional on customer’s requests

Operating Model

Both CW and Pulse available

Pulse Frequency

2~3Hz

Power Supply

2 AA alkaline batteries


Battery Operating Time

650nm@1mw ≥65hours

650nm@10mw≥15hours

Test with Panasonic LR6 AA ALKALINE battery

Operating Temperature ()

-10~+45

Storage Temperature ()

-40~+70

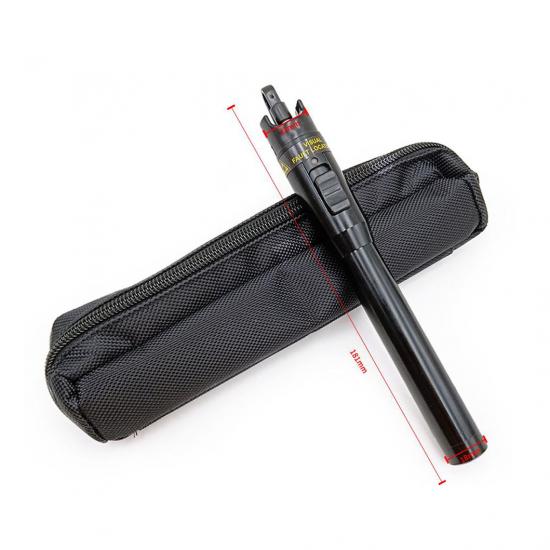

Dimension (mm)

15X210

Weight(g)

120(Without battery)
