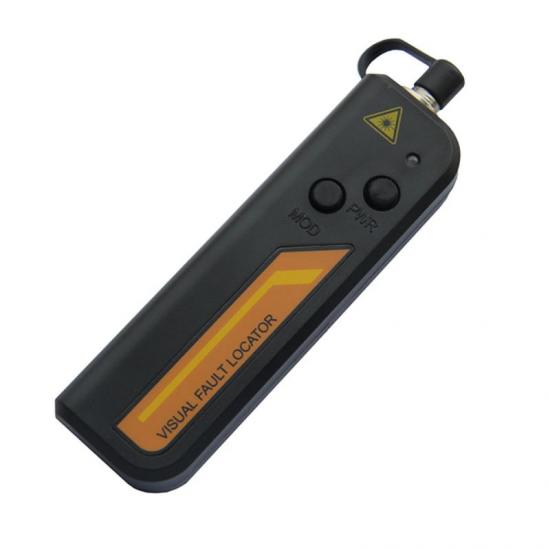

Economical Portable Visual Fault Locator S203

Fast locate the broken point.

Cheap and Quality Vfl Optical Fiber Visual Fault Locator.

Item NO.:
S203
Order(MOQ):
1
Payment:
T/T, Paypal, Credit Card, Western Union, etc.
Product Origin:
China
Color:
Standard
Shipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
Lead Time：
in 2 Working Days

Inquire Now

Product Detail

Introduction

It is one efficient and low-cost basic fiber test tool; it provides a visible way to find fiber faults and identify fibers in an optical network during and after installation.

It includes:

Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.

Finding the faults of OTDR dead zone

End-to-end visual fiber identification

Features

Constant & stable output power.
Low battery warning, reminds users to change the battery timely.
Long battery life (up to 40 hours with AAA batteries)
Pocket size and light weight, easy to use.
Re-changeable ceramic tube, to avoid returning to manufacturer for this small fault.

Specifications

Central Wavelength	650nm±10nm
Emitter Type	FP-LD
Output Power	1mw or 10mw
Optical Connector	2.5mm universal connector For 1.25mm connectors, FC-1.25mm Hybrid adaptor can be optional on customer requests
Operating Model	Both CW and Pulse(2Hz) available
Power Supply	Two AAA alkaline batteries
Battery Operating Time	650nm@1mw ≥45hours;650nm@10mw≥15hours Test with Panasonic LR6 AAA ALKALINE battery
Operating Temperature	-10~+60 (℃)
Storage Temperature	-25~+70 (℃)
Dimension (mm)	1154527
Weight	50g (without batteries)
