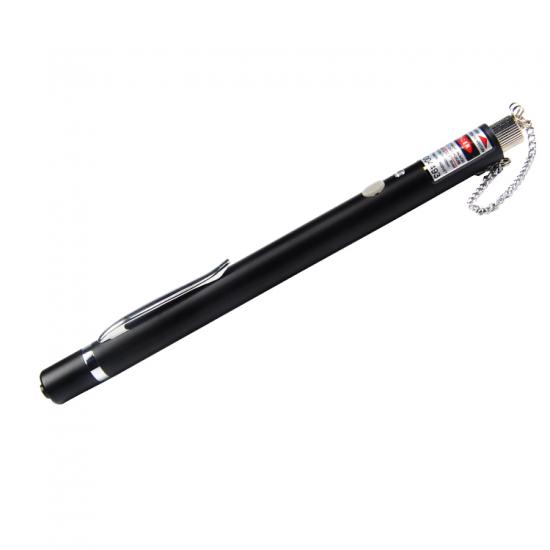

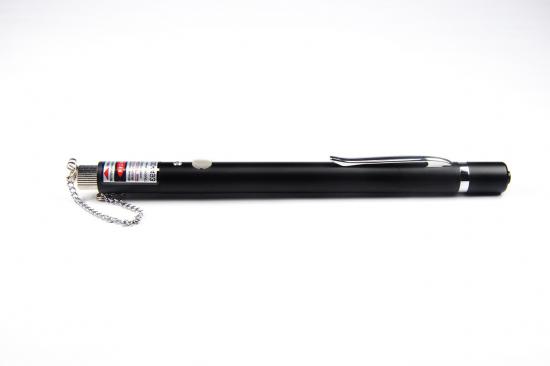

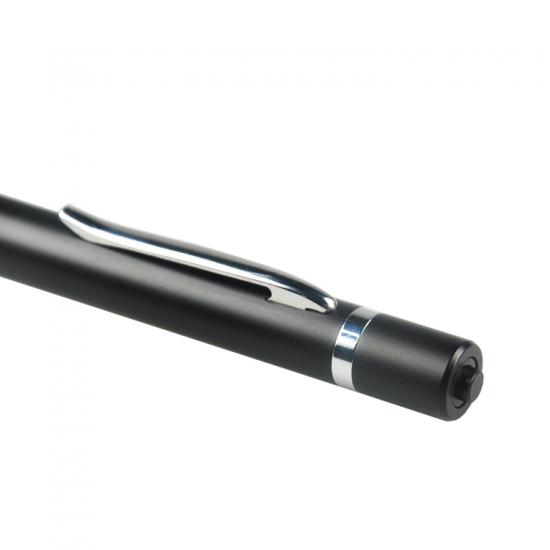

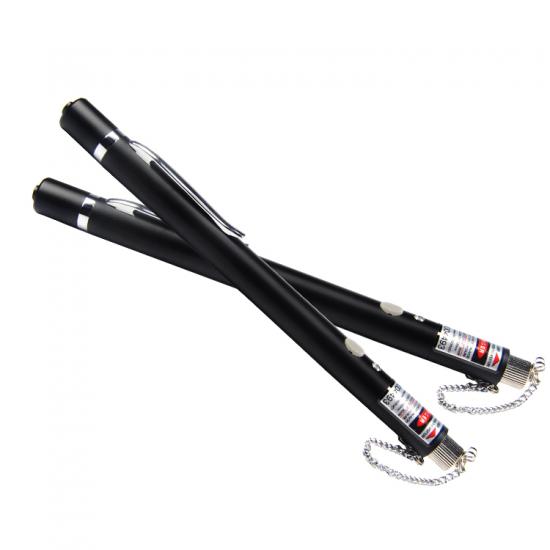

Portable Fiber Optic Visual Fault Locator S209

Long battery life

Portable and rugged, easy to use

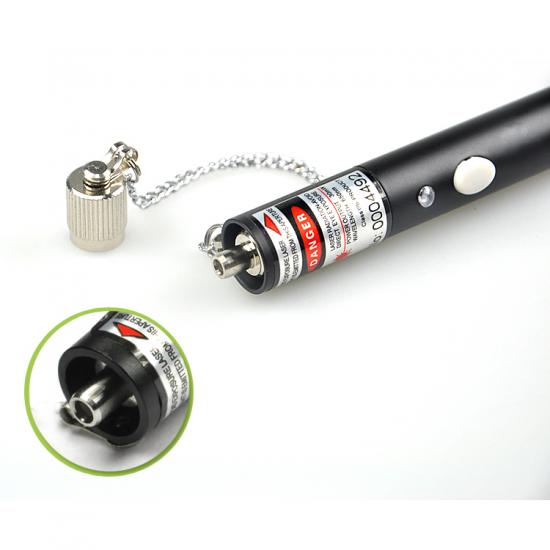

2.5mm universal connector, for 1.25mm connectors,FC (Male)-LC (Female) convertor can be provided on requests.

  • Item NO.:

    S209
  • Payment:

    T/T, Paypal, Western Union, Moneygram, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 3 Working Days
  • Product Detail

Introduction
S209 Visual Fault Locator uses the DFB-LD as the emitting component. Driven by constant current source, the indicator can emit stable red laser. The product can be used to inspect fiber failure when they connect with optical interface and be inserted into single mode or multi mode optical fiber. It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.

Applications

  • Maintenance in telecom, CATV
  • Test Lab of optical fibers
  • fiber routing and continuity checking in optical networks.
  • Other fiber optic measurements

Features

  • 2.5mm universal connector
  • Operates either in CW or Pulsed mode with constant output power
  • Long battery life (up to 60 hours)
  • Drop-resistance and dust-proof design of laser head
  • Laser case ground design prevents ESD damage
  • Portable and rugged
  • Easy to use
  • Meets CE standards including EMC, EMI, ROHS

Specifications

Model

S209

Central wavelength

650nm±10nm

Emitter type

FP-LD

Output power

5mw, 10mw, 20mw

Optical connector

2.5mm universal connector, for 1.25mm connectors

FC (Male)-LC. (Female) convert can be provided on request

Operating model

Both CW and Pulse available

Pulse frequency

3Hz to 9Hz

Power supply

2AAA alkaline batteries

Operating temperature

-20°C to 60°C

Storage temperature

-40°C to 85°C

Dimension

 -FL-005 Φ13 X167

Weight

113g (without battery)
