All in one power meter and VFL function. Most compact in Size, ideal for field operation. With wavelength memory function, boot will display the last shutdown wavelength set.

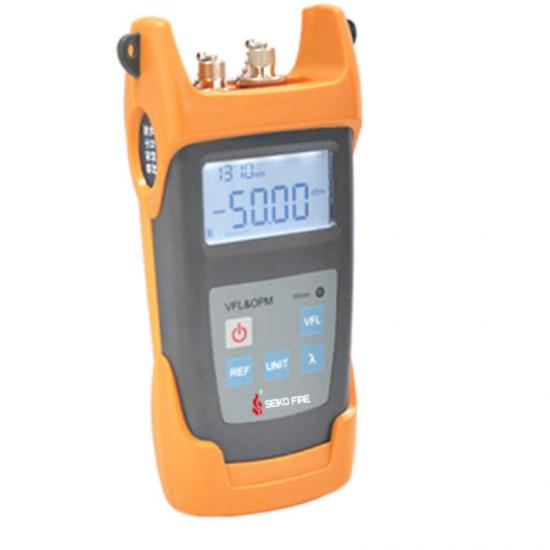

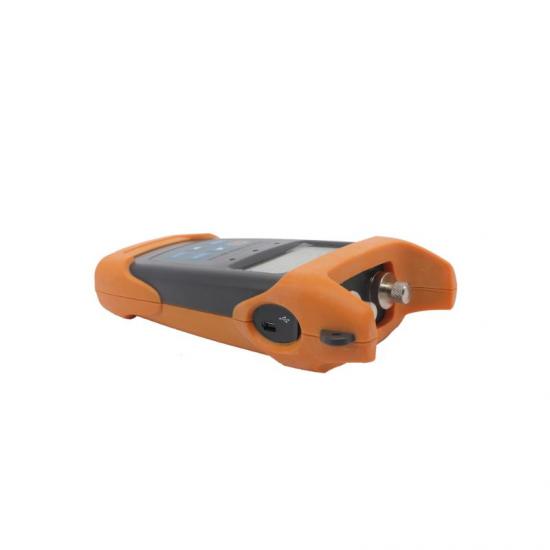

LED screen SC FC ST optic power meter with VFL function
This tester allows to perform both optical power/loss measurements and Fiber faults tracing visually.
Item NO.:
S405Order(MOQ):
1Payment:
T/T, Paypal, Credit Card, Western Union, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 2 Working DaysIntroduction
S405 Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss measurements and fiber faults tracing visually.
Features
S405 power meter and VFL is an ideal tester used in quickly mechanical splicing and FTTx networks.

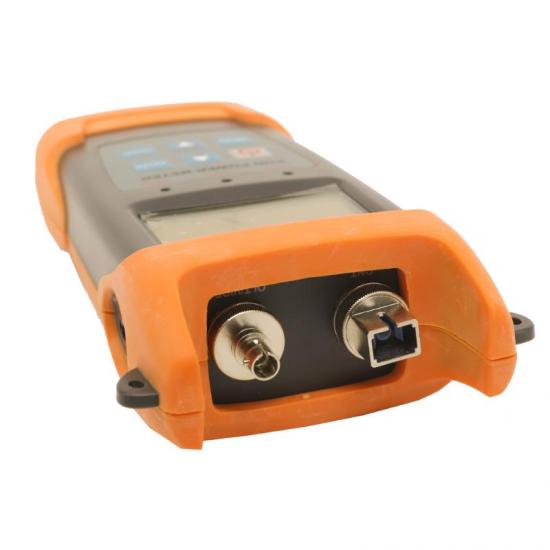

Optical port: FC, SC interchangeable supports various optical connectors.
Applications
Specifications
|
Model |
S405 |
|
Operating wavelength(Power Meter Module) |
850/1300/1310/1490/1550/1625 |
|
Detector Type |
InGaAs |
|
Output power (VFL module) |
1mw or 10mw |
|
Power Measurement Range |
-70~+6dBm/-50~+26dBm |
|
Uncertainty |
±0.5dB |
|
Resolution |
0.01 |
|
Operation temperature |
-10~+60 ℃ |
|
Storage Temperature |
-25~+70℃ |
|
Auto-off function |
Yes, Auto-off after 10minutes idle time |
|
Battery Life @ OPM |
180 hours |
|
Battery Life @ VFL |
60 hours |
|
Power Supply |
3pcs AA Batteries |
|
Weight |
700g (including batteries) |
|
Size |
192*102*50mm |
All in one power meter and VFL function. Most compact in Size, ideal for field operation. With wavelength memory function, boot will display the last shutdown wavelength set.
Product Features: 1、OLED display screen, visible under strong light 2、500mAh rechargeable lithium battery 3、Type C charging port 4、Users can calibrate and correct themselves 5、With 1000 data storage spaces 6、With upper computer software, data can be exported 7、User set memory (wavelength, unit memory) 8、Display both mW and dBm values simultaneously
Support simultaneous display of mW/dBm Support automatic shutdown/backlight switch Support wave memory when shutdown 120h working time
