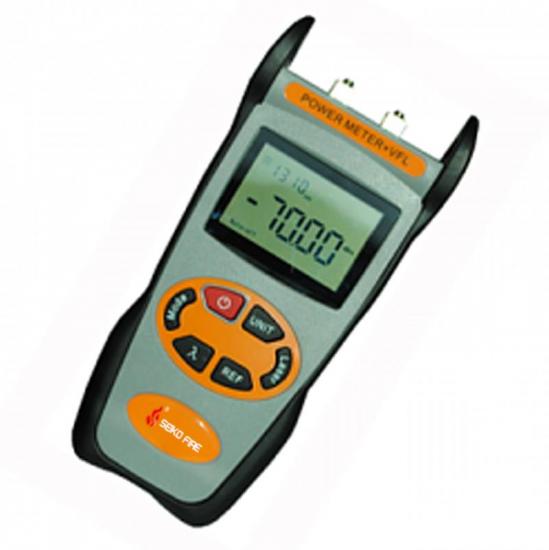

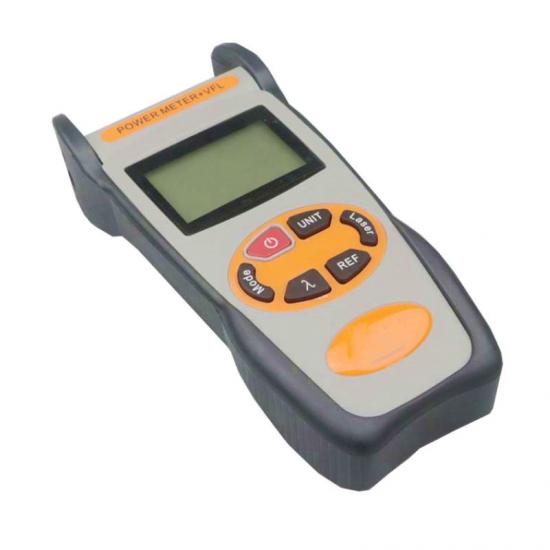

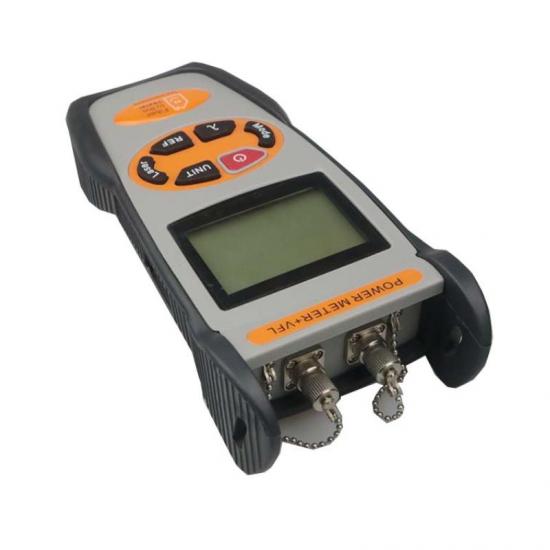

LED screen SC FC ST optic power meter with VFL function This tester allows to perform both optical power/loss measurements and Fiber faults tracing visually.
All in one power meter and VFL function.
Most compact in Size, ideal for field operation.
With wavelength memory function, boot will display the last shutdown wavelength set.
Item NO.:
S403Order(MOQ):
1Payment:
T/T, Paypal, Credit Card, Western Union, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 2 Working DaysIntroduction
S403 power meter + VFL is an ideal tester used in quickly mechanical splicing and FTTx networks.
Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss measurements and fiber faults tracing visually.
Specifications
|
Type |
S403 |
|
Operating wavelength (Power Meter Module) |
1310, 1490, 1550, 850, 1300, 1625 |
|
Detector Type |
InGaAs |
|
Output power (VFL module) |
1mw (according to the customer’s requirements) |
|
Power Measurement Range |
-70~+6dBm |
|
Uncertainty |
±0.5dB |
|
Resolution |
0.01 |
|
Operation Temperature |
-10~+60 ℃ |
|
Storage Temperature |
-25~+70 ℃ |
|
Auto-off function |
Yes, Auto-off after 10minutes idle time |
|
Battery Life @ OPM |
240 hours |
|
Battery Life @ VFL |
60 hours (1mw) |
|
Power Supply |
3pcs AA Batteries |
|
Weight(g) |
285 |
|
Size(mm) |
200 X90 X50 |
