ARC Fusion Splicer

/

Fiber Cleaver

/Original Japan CT50 Bluetooth Optical Fiber Cleaver

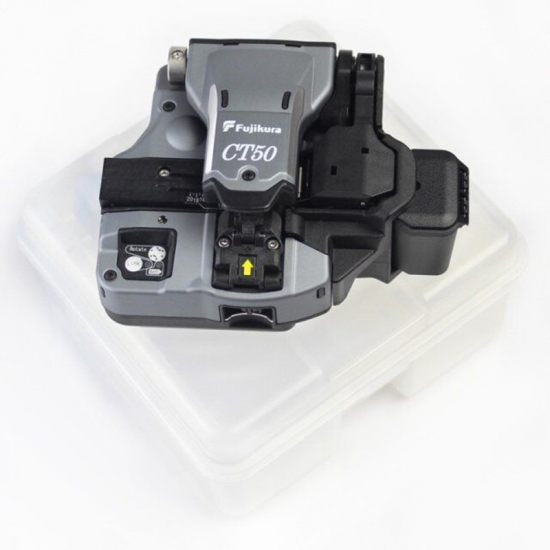

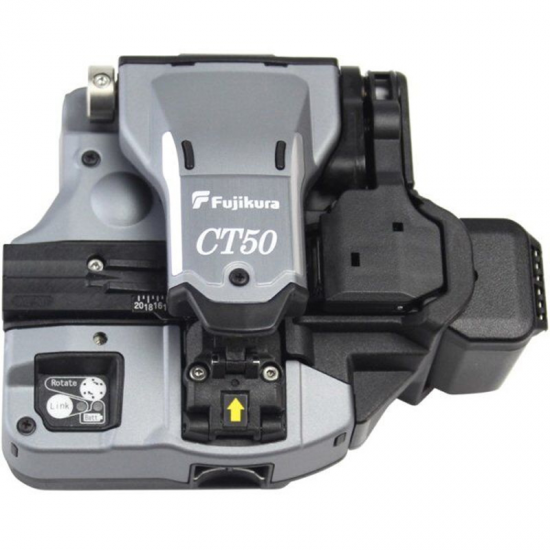

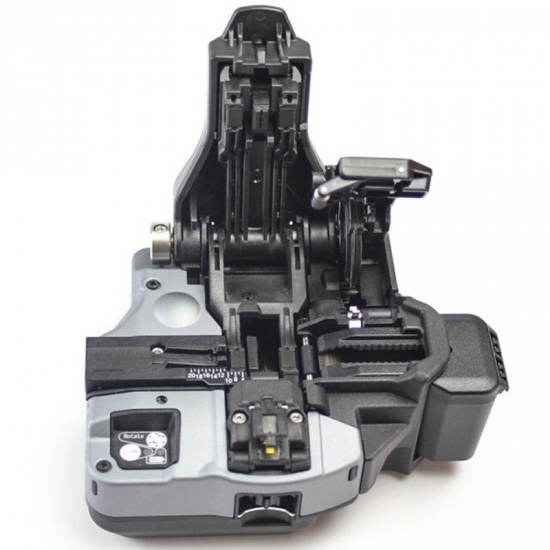

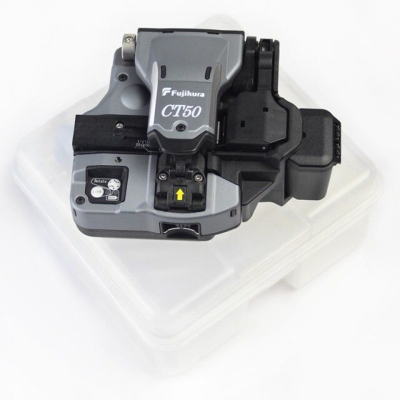

Original Japan CT50 Bluetooth Optical Fiber Cleaver

Applicable for up to 12-fiber cleaving.

Automatic cleaving blade rotation via wireless communication.

Original CT50 optical fiber cleaver for ribbon fusion splicer.

  • Item NO.:

    CT50
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    Japan
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

  Compared with other existing cutting knives, Fujikura CT50 has stronger drop impact resistance, and allows staff to replace the blade, greatly reducing processing time and maintenance costs for customers. The CT50 can automatically change the position of the cutting blade according to the cutting status of the optical fiber on the fusion splicer via Bluetooth. In addition, the CT50 can complete fiber cutting and fiber waste collection in one step.


Application

  • New High Precision Fiber Cleaver CT08/New Original Fiber Optic Cleaver
  • Used for Single Fiber Cleaving
  • Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency
  • Prevents Double Scoring of the Fibers
  • Has Superior Blade Height and Rotational Adjustment
  • Available With Automatic Fiber Scrap Collection


Features

1. Cutting angle: Typical 0.5°
2. Fiber count:Up to 12
3. Fiber diameter: 125μm
4. Coating diameter: 160um to 900um 2 to 3mm cord&drop cable)
5. Dimensions: 120W × 95D × 58 H (mm)
6. Weight: 300g
7. Blade life: 60,000 fibers (1250 fibers×16 positions × 3 heights)
8. Wireless connectivity:Wireless technical standard:Bluetooth 4.1 LE*2 OS : Andoroid 5.0 or above, iOS 8.0 or above (iPhone6 above)
9. Operation condition:0 to 95% RH and 0 to 40°C (non-dew) Storage condition:0 to 95% RH and -40 to 80°C (non-dew)
10. Resistance features*3:Dust resistance: Exposure to dust (0.1 to 500μm dia. Alumina Silicate) Rain resistance: H=10mm/hr for 10min
