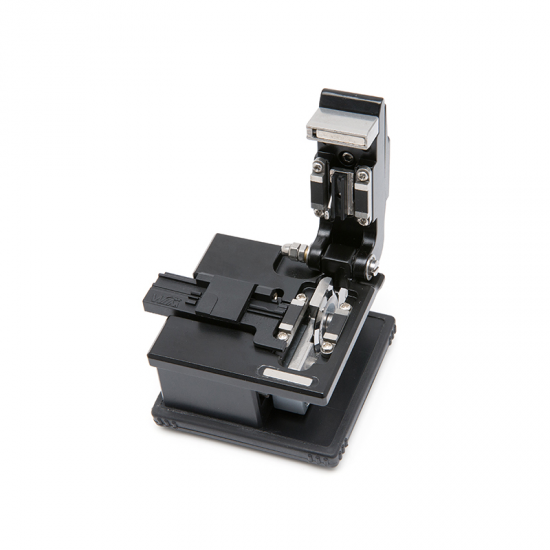

Original Factory Fiber Optical Cleaver D3

Handheld & Stable performance Fiber Optic Cleaver.

Suitable for 0.25mm~0.9mm fiber coating diameter.

  • Item NO.:

    D3
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

This D3 optical fiber cleaver can provides approximately 48,000 cleavesIt is a simple operation for the user.


Specifications

Fiber diameter

125µm

Outercoat diameter

0.25mm-0.9mm

Fiber type

Single tube fiber and Ribbon fiber (exchangeable)

Cleaved length

5-20mm

Cleaved angle

≤0.5°

blade life

48000

Mode

Semiautomatic

Fiber collector

Available

Dimension

59mm(W)×55(D)mm×49mm(H)

Weight

260g

Handheld Optical Fiber Cleaver
