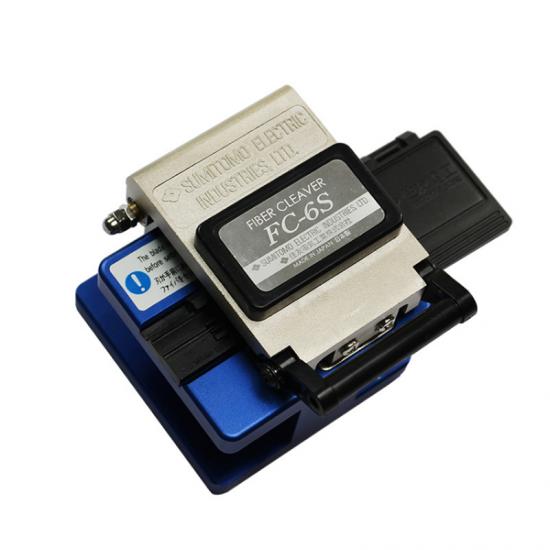

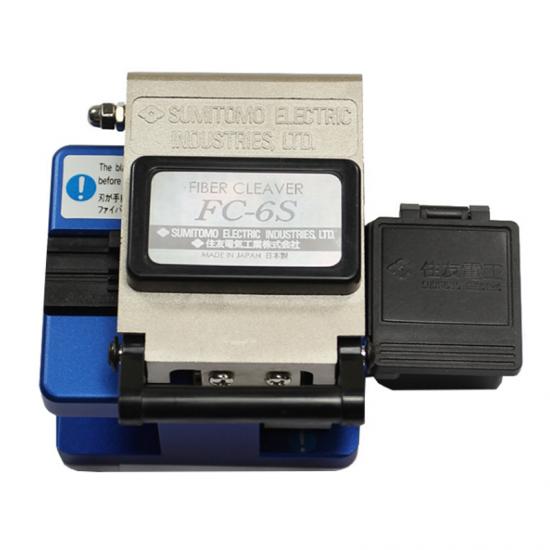

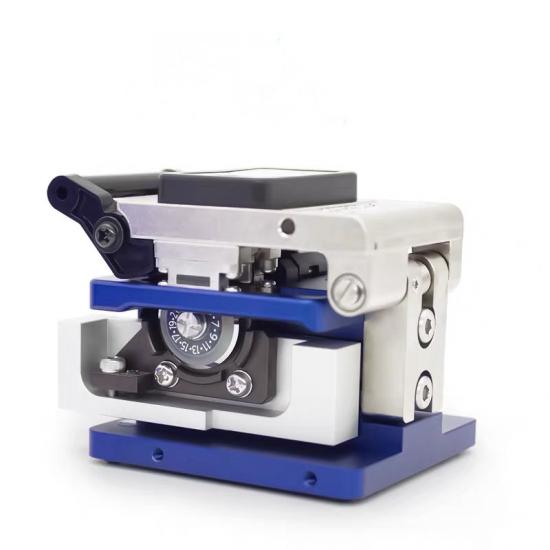

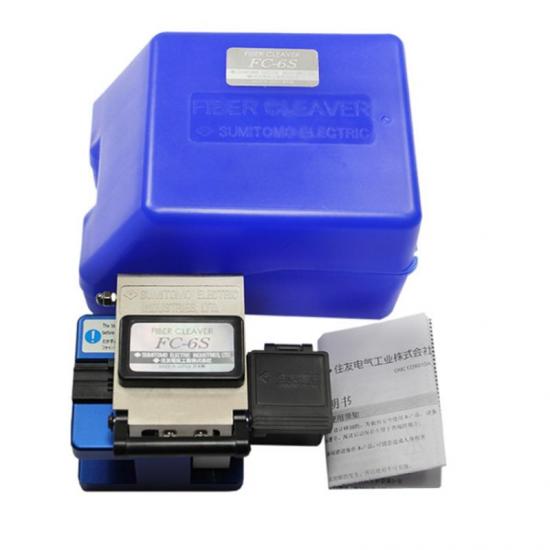

Japan Sumitomo FC-6S Fiber Optic Cleaver

Professional manufacturer, 100% tested.

Has Superior Blade Height and Rotational Adjustment.

  • Item NO.:

    FC-6S
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction
Sumitomo FC-6S high precision cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 48,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.

Features

  • Small size, lightweight, and easy handling
  • Applicable up to 12-fibre ribbon cleaving
  • Fibre collector equipped as standard
  • 2-action operation including fibre scrap collection
  • Operation: Push back blade -> Set fibre -> Close body
  • Blade speed and anvil speed are mechanically controlled
  • Blade life:60000 fiber

Specification

Applicable fibers

Silica optical fiber

Bare fiber diameter

125µm

Cleaving angle

0.5 degrees at single fiber

Blade positions

3 height and 12 rotating positions

Blade life

60,000 fibers (5000 x 12 positions)

Dimensions

102W × 82D × 46H (mm)

Weight

430g
