Laser Nozzle Competitive Price Fiber Laser Equipment Parts for Laser Cutting Head

Sell Various Kinds of Laser Cutting Nozzles, Widely Suitable for Raytools/ Precitec /WSX/OSPRI /Han's /BOCI and Other Laser Cutting Heads

Product Feature:

High efficiency cutting:

Matched with laser tube cutting machine, efficient cutting

Smooth without blocking slag:

Smooth cutting, high finish, high concentricity, one-time processing

Copper material, excellent quality:

(1)Excellent thermal conductivity:

It has good electrical and thermal conductivity, excellent plasticity, and is easy to laser tube cutting machine processing.

(2)Better corrosion resistance:

Due to the presence of aluminum in copper, this alloy is more resistant to corrosion and is suitable for products stored or used in humid environments or containing acidic gases for a long time.

Available in a variety of models：

(1)It has two kinds of structure, single layer and double layer

①single layer：Suitable for cutting pipes using nitrogen and air as auxiliary gases.

②double layer：Suitable for cutting pipes using oxygen as an auxiliary gas.

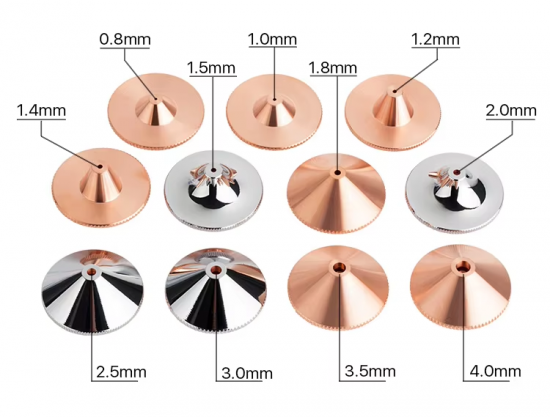

(2)With a variety of calibers, complete specifications, widely used

Inquire Now

Product Detail

How do I choose between single/double layers?

Single-layer nozzles are usually used for cutting aluminum plate,copper plate with nitrogen air as auxiliary gas;
Double-layer nozzles are usually used for oxidative cutting, cutting carbon steel with oxygen as auxiliary gas.

Diameter	Single/Double	Specification	Thread	Caliber

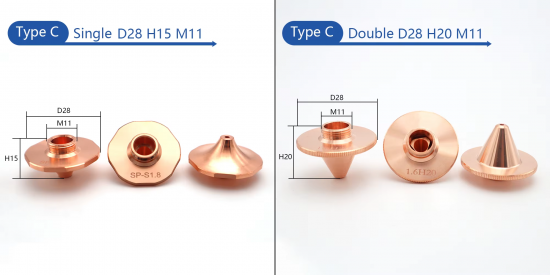

28mm	Single	D28*H15	M11	0.8-10
28mm	Double	D28*H15	M11	0.8-10

Brand	Specifications	Diameter	Height	Thread	Single/ Double	Caliber
Precitec	Common	28mm	15mm	M11	Single	0.8-6.0
	Common	28mm	15mm	M11	Double	0.8-6.0
	Fast	28mm	15mm	M11	Double	0.8-6.0
	HSG	28mm	15mm	M11	Single	0.8-6.0
	HSG	28mm	15mm	M11	Double	0.8-6.0
	Booster	28mm	15mm	M11	Single	1.0-5.0
	Raised	28mm	15mm	M11	Single	1.0-5.0
	Raised	28mm	15mm	M11	Double	1.0-5.0

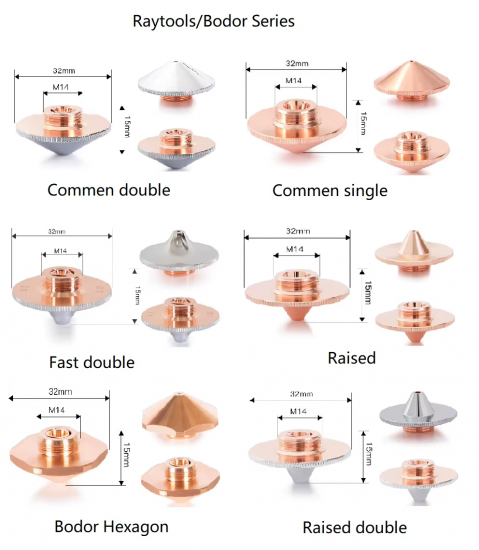

Raytools	Common	32mm	15mm	M14	Single	0.8-6.0
	Common	32mm	15mm	M14	Double	0.8-6.0
	Raised	32mm	15mm	M14	Single	1.0-5.0
	Raised	32mm	15mm	M14	Double	1.0-5.0
Bodor	Hexagon	32mm	15mm	M14	Single	0.8-6.0
Bodor	Hexagon	32mm	15mm	M14	Double	0.8-6.0
WSX	Common	28mm	15mm	M11	Single	0.8-6.0
	Common	28mm	15mm	M11	Double	0.8-6.0
	Fast	28mm	15mm	M11	Double	0.8-6.0
	Booster	28mm	15mm	M11	Single	1.0-5.0
	Raised	28mm	15mm	M11	Single	1.0-5.0

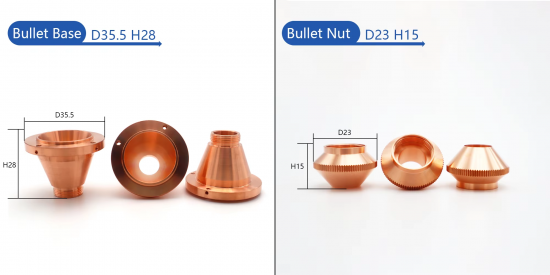

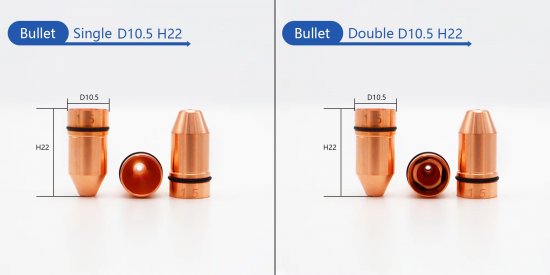

	Bllet	10.6mm	22mm		Single	0.8-2.5
	Bllet	10.6mm	22mm		Double	0.8-2.5
Trumpf	EAA	25mm	15.5mm	M12	Single	0.8-4.0
	EAB	25mm	15.5mm	M12	Single	0.8-4.0
	EAU	25mm	15.5mm	M12	Double	3.0-10.0
	EAQ	25mm	15.5mm	M12	Double	6.0/7.5/9.5
	EAK	25mm	15.5mm	M12	Double	3.0-10.0
	OLD	24mm	10mm	M8	Single	0.8-4.0
Bystronic	HK	14mm	17mm	M10	Single	0.8-6.0
Bystronic	NK	14mm	17mm	M10	Double	0.8-6.0
