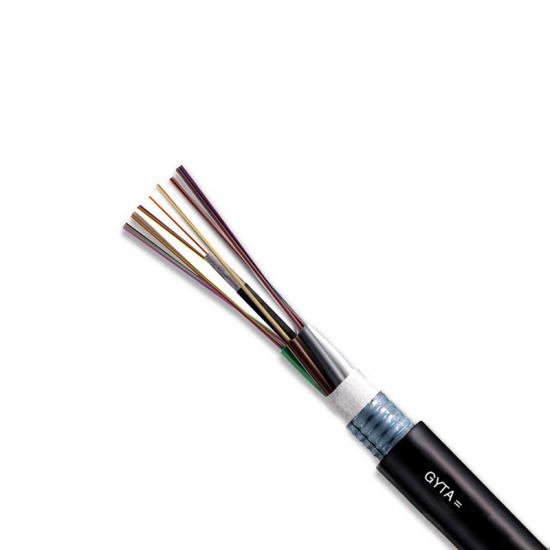

Aluminum Tape GYTA Fiber Optic Cable 8 Cores

100% cable core filling.

Special tube filling compound ensure a critical protection of fiber.

  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

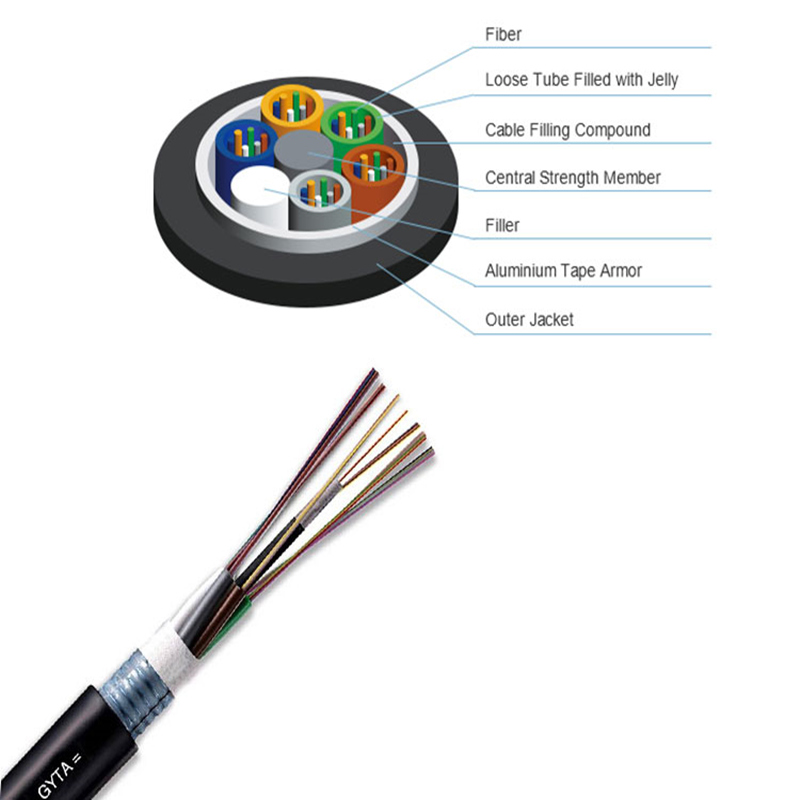

The structure of GYTA cable is to insert 250μm fiber into the loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the core is a metal reinforced core. For some cores, a layer of polyethylene (PE) is required to be extruded outside the metal reinforced core. The loose tube (and the filling rope) is twisted around the center reinforcing core into a compact and round core, and the gap in the core is filled with a water blocking filler. The plastic coated aluminum strip (PL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.


Product name: Outdoor Fiber Optic Cable GYTA
Color: Black Fiber Optic Cable
Use scope: overhead or buried
To strengthen the steel wire: Bronze phosphating wire
Some Fiber Optic Cable: 4~288cores Fiber Optic Cable
Skin material: sheath
Allow the flattening force: 1000 n/10 cm
Temperature characteristic: storage temperature -40℃~+70℃
Installation temperature: -20℃~+70℃


Features

  •  Has good mechanical properties and temperature characteristics.
  • The loose tube material itself has good water resistance and high strength.
  • The tube is filled with a special grease to protect the fiber.
  • The specially designed compact cable structure effectively prevents the casing from retracting.
  • The PE jacket has excellent UV radiation resistance.
  • The following measures are taken to ensure the waterproof performance of the cable.
  • Single wire center reinforcement core.
  • The loose tube is filled with a special waterproof compound.
  • Full core filling.
  • Plastic coated aluminum tape (APL) moisture barrier.

Specifications

Cable model

Number of fibers

Number of casings

Number of filled ropes

Cable diameter

 (mm)

 Cable weight

(Kg/Km)

 Allowable tensile force long/short Term(N)



Allow crushing force long/short Term(N)

 Bending radius static / dynamic

 (mm)

 GYTA-2~6 cores

2~6

 1

 4

9.7

90

 600/1500

300/1000

10D/20D

 GYTA-8~12 cores

 8~12

 2

9.7

90

 600/1500

300/1000

10D/20D

 GYTA-14~18 cores

 14~18

9.7

90

 600/1500

300/1000

10D/20D



GYTA-20~24 cores

 20~24

 9.7

90

 600/1500

300/1000

10D/20D



GYTA-26~30 cores

26~30

9.7

90

600/1500

300/1000

10D/20D



GYTA-32~36 cores

32~36

10.2

104

 1000/3000

300/1000

 10D/20D



GYTA-38~48 cores

 38~48

11.0

117

 1000/3000

300/1000

 10D/20D

Stranded Loose Tube Outdoor Fiber Optic Cable
