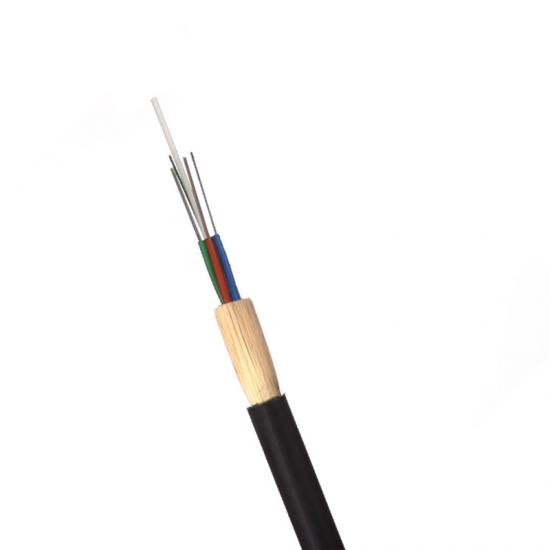

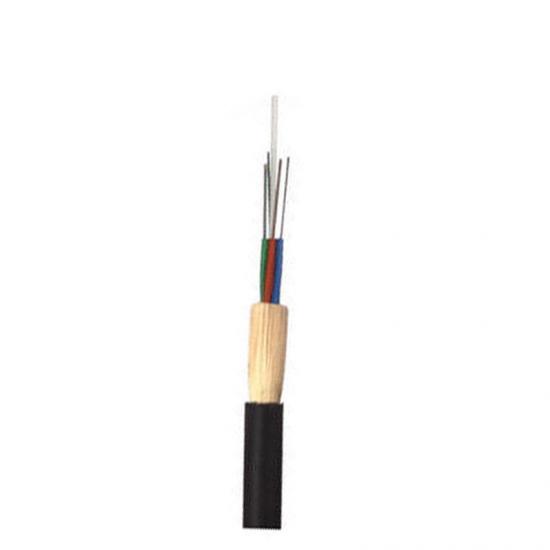

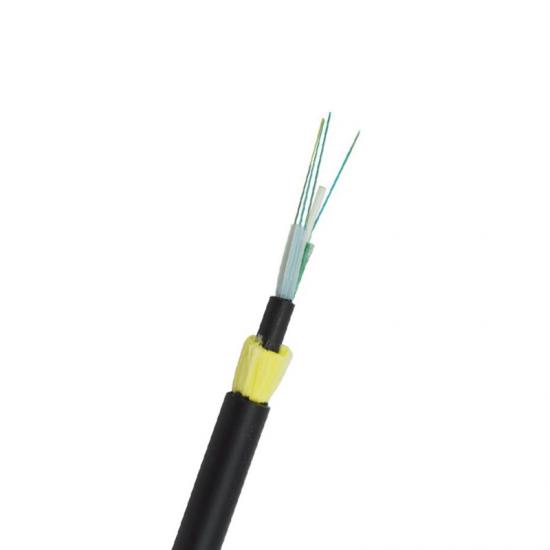

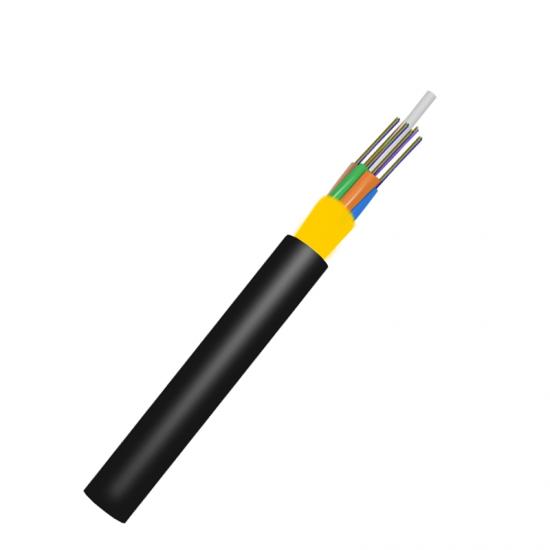

All-Dielectric ADSS Fiber Optic Cable

With excellent tensile properties and temperature characteristics.

Life expectancy is greater than 30 years.

  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

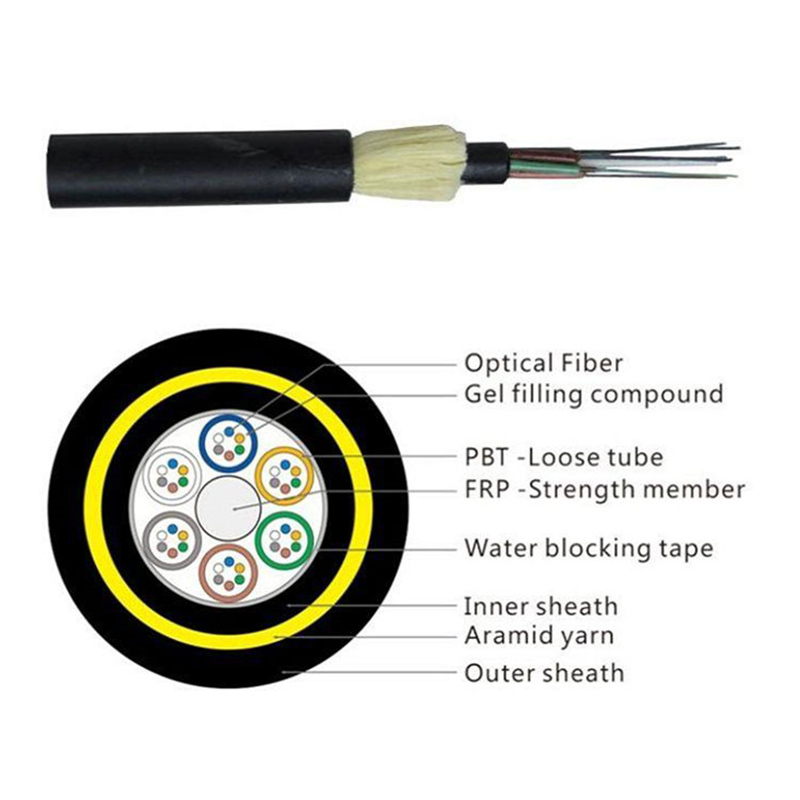

The ADSS cable is loosely wound and the 250μm fiber is placed in a loose tube made of high modulus material. The loose tube is filled with waterproof compound. The loose tube (and the filling rope) is twisted around a non-metallic center reinforcing core (FRP) into a compact core with a gap between the core and a water-blocking paste. The outer core of the cable is extruded into a polyethylene (PE) inner sheath, and then the reinforced aramid is twisted, and finally a polyethylene (PE) outer sheath or an electrical tracking (AT) outer sheath is extruded.

Features

Can be erected continuously.

With AT sheath, it has excellent resistance to electric tracking.

Light weight and small cable diameter reduce the impact of ice, wind and load on towers and supports.

Large span with a maximum span of more than 1000m.

Excellent tensile and temperature properties.

Life expectancy can be up to 30 years.

Specifications



G.652

G.655

50/125μm

62.5/125μm

Attenuation (+20°C)

@850nm





≤3.0 dB/km

≤3.0 dB/km

@1300nm





≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km





@1550nm

≤0.22 dB/km

≤0.23dB/km





Bandwidth (Class A)

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥600 MHz·km

Numerical aperture







0.200±0.015NA

0.275±0.015NA

Cable cut-off wavelength

≤1260nm

≤1480nm
