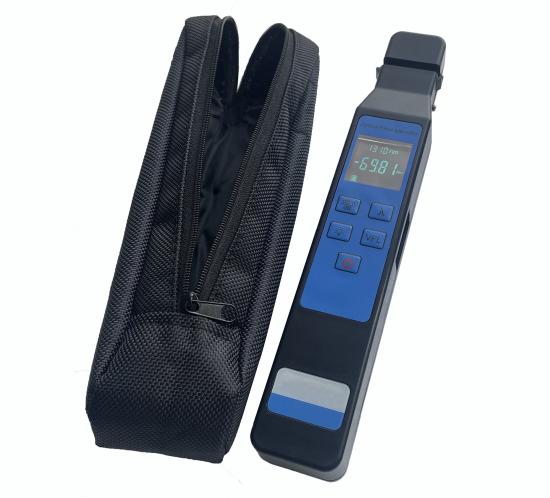

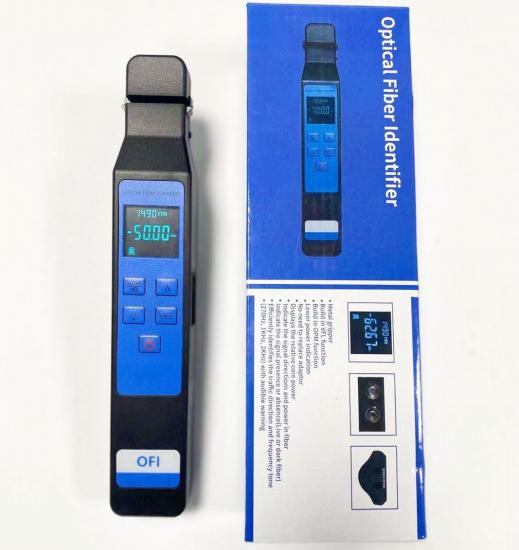

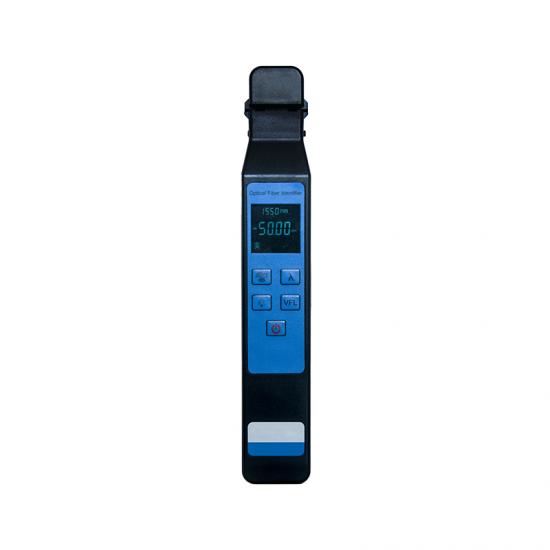

3-In-1 Function Optical Fiber Identifier S507

Build in VFL and OPM function

Indicate the signal direction and power in fiber
Efficiently identifies the traffic direction and frequency tone

Item NO.:
S507
Payment:
T/T, Paypal, Credit Card, Western Union, etc.
Product Origin:
China
Color:
Standard
Shipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
Lead Time：
in 2 Working Days

Inquire Now

Product Detail

Introduction
Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function and power meter function.. Using the macro bending technology on line for nondestructive testing, It can measure the signal direction and power and avoid mis-operation resulting in interrupted lines. ---Macro bending measurement. Macro bends are the use of fiber-optic bending leak out when the weak optical signal, optical signal to detect the direction and intensity. Does not damage optical fiber, without interrupting communications, and direct detection of 2.5mm bare fiber, 0.9mm and 2.5mm fiber casing tight.
Features

Build in 10 mW VFL function
Build in OPM
Metal gripper,no need to change the adapter *Low battery monitoring function
Tone identification, Optical Fiber Identifier can detect optical signals in the tone signal fixed load, 270Hz, 1KHz and 2KHz, to identify a specific optical fiber, can quickly find the necessary fiber

Technical Specifications

User instructions

(1) Insert the fiber to the adapter head, push the button up to lock clamp.

(2) When optical signal passes the fiber, the LED illuminator will indicate the traffic ’ s

direction with intermittently audible tone and the relative core power will be also

displayed in digital format.

(3) If no optical signal passes the fiber, the LED illuminator is dead and the “LO” will be

displayed in the relative core power position.

(4) Fiber identifier can also detect the presence of 2KHz, 1KHz and 270Hz modulated

tone with the continuously audible tone.

Battery Power Indication

(1) When the LED indicator is red, the battery power is full.

(2) When the LED indicator is flicker, the power is too low and the instrument cannot

work properly and you have to replace the battery.

Warranty and Service

Caution: Repair the tester in the field is prohibited.

18 months warranty for Optical Fiber Identifier.

We warranty that each of Optical optical fiber identifier will be free from defects in

material and workmanship for 18 months. This warranty covers the original user only

and is not transferable. Should the device fail at any time during this warranty period, we

will, at its sole discretion, replace, repair or refund the purchase price of the product.

This warranty is limited to defects in workmanship and materials and does not cover

damage from accident, neglect, contamination, mis-use or abnormal conditions of

operation or handling.
