High sensitivity large operation scope. Battery supply, convenience for outside work.
Smart Switchable Power Supplies.
Support various removable optical output connectors.
Item NO.:
S100Order(MOQ):
1Payment:
T/T, Paypal, Credit Card, Western Union, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 2 Working DaysIntroduction

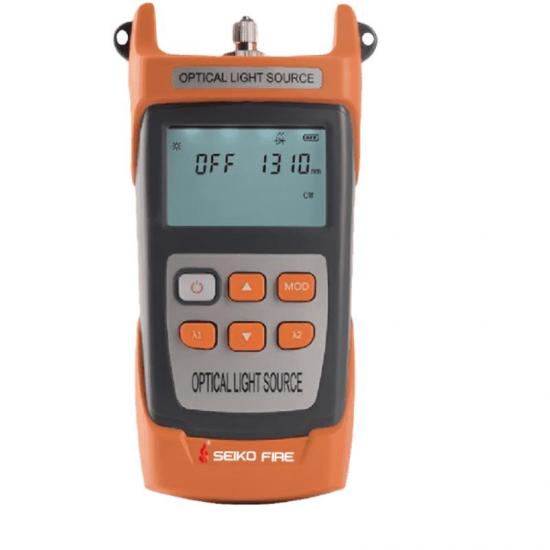

Light Source S100 is advanced two-color integrated mold process for extra durability, Top dustproof over protects the fiber output connector.
Features
Specifications
|
Center wavelength |
850/1300(MM) |
1310/1550(SM) |
|
Optical Connector |
FC/SC/ST |
|
|
Wavelength |
850/1300/1310/1490/1550/1625/1650nm |
|
|
Power stability (dB) |
0.02 |
|
|
Laser type |
FP-LD |
|
|
Output power |
≥-5dBm |
|
|
Short-term stability |
±0.05dB/15min |
|
|
Long-term stability |
±0.15dB/8h |
|
|
Way of working |
CW, 270Hz/1kHz/2kHz |
|
|
Operating temperature |
-10~+60℃ |
|
|
Storage temperature |
-30~+70℃ |
|
|
Working humidity |
5%~95%RH |
|
|
Continuous working time |
≥80h |
|
|
Structure size |
100mm×50mm×186mm |
|
|
Power |
Three section 5 batteries/Lithium battery (optional) |
|
|
Instrument net weight |
240g |
|
