Portable FTTH Fiber Optic Toolkit S22

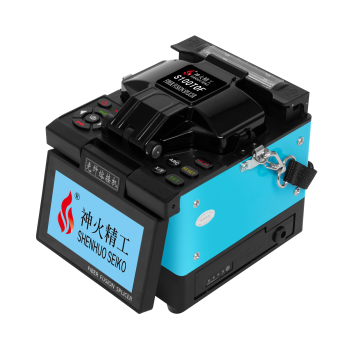

S400 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~500um) with  S400 LDF Specialty Fiber Fusion Splicer. Specifications Model S400LDF Applicable fiber SM(Single mode); MM(Multi mode); DS; NDZS Dimension Weight 2.4KG (including battery) Return loss >60dB Electrode life Typical 3000 times discharge Fiber diameter Cladding diameter:125~500μm Heat-shrinkable tube 60mm、40mm and a series of miniature tube Data storage 10000 groups data records and 100 group images Typical heating time 20seconds (60mm heating tube) Tension test Typical 2N Typical splice time 8-10 seconds Typical splice loss 0.02dB(SM); 0.01dB(MM); 0.04(DS); 0.04(NZDS) Cutting length 8~16mm(Coating diameter

Excellent anti-jamming capability. Precise positioning and sounding. Suitable for the detection of various underground metal pipelines.

Long battery life Portable and rugged, easy to use 2.5mm universal connector, for 1.25mm connectors,FC (Male)-LC (Female) convertor can be provided on requests.

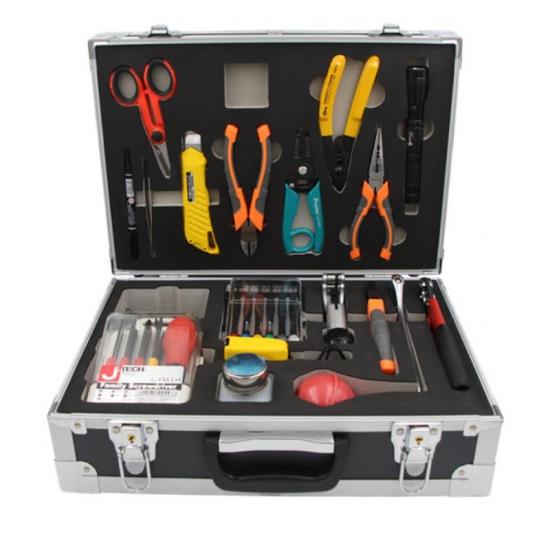

Tool kits for cabling instruction. It includes all the most frequently need tools and supplies required for cable sheath removal and fusion splicing

Simple structure, reliable, easy to operate features Adjustable site-seats can be applied to all kinds of coated fibers.

Suitable for fiber optic connector cleaning. Easy for management and operation.

Upgraded high accuracy fiber identifier S506 integrates VFL and LED lighting function,It is one of the necessary tools for fiber maintenance.Fiber identifier can detect any position of the single mode and multi mode fiber.

Low insertion loss ,high return loss. Improve the flexibility of optical wiring design as well as reducing the time required for fiber termination.
