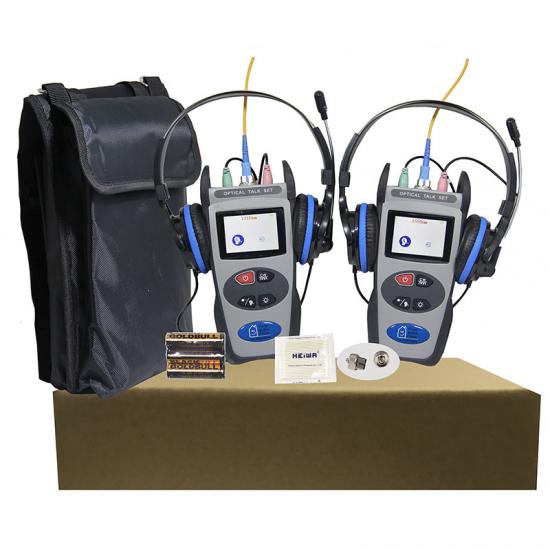

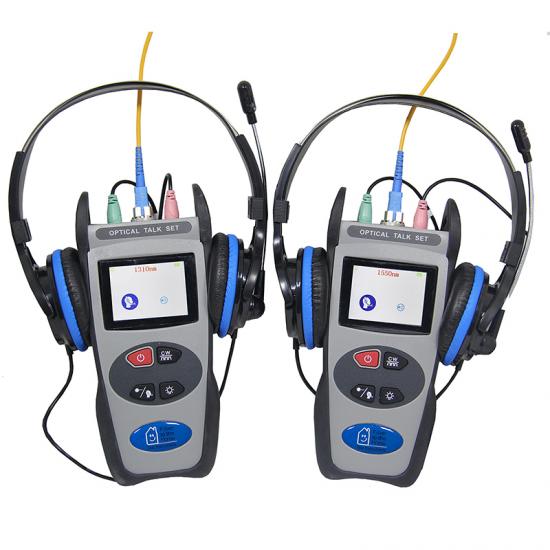

High flexibility Optical Talk Set S601

Comfortable hand feelings, and nice outside looking.

High quality conversation connection and low background noise.

The user can easily operate on this optical tester.


  • Item NO.:

    S601
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

S601 is one intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source.

It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and telecommunication network.

It can carry out full-duplex communication with high quality connection and not be affected by distance.


Features

  • Full-duplex digital communication with high quality conversation connection and low background noise.
  • Together with optical clip-on coupler, enables on line communications available
  • Combining functions of both a digital optical phone call and a stabilized light source.
  • Large LCD display with backlight
  • Low battery power indication
  • Laser source have the modulation of 270Hz, 330Hz, 1KHz, 2KHz.


Specifications

Type

S601

Wavelength(nm)

1310(A)/1550(B)

Fiber type

SM

Dynamic range(dB)

45

Distance(km)

120

Laser Device type

FP-LD

Output adjustment(dB)

1

Output power(dBm)

-5-15

Output stability(dB,30min,20℃) ¹

<0.05

Modulation

CW, 270Hz, 330Hz, 1KHz, 2KHz

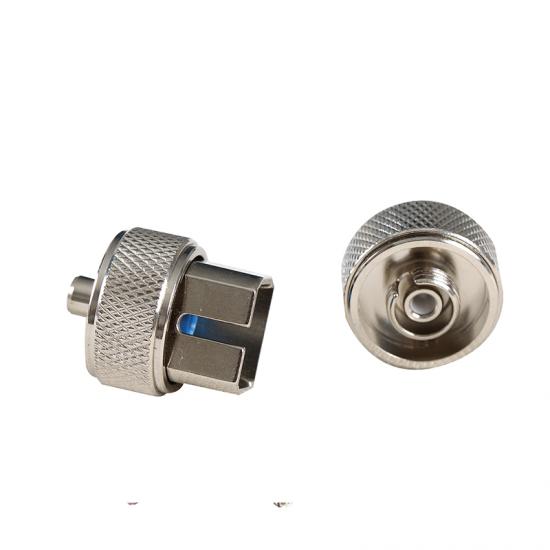

Connector type

FC/PC

Battery

3*AA,1.5V

Battery operation time(h) ²

30(Talk set function),50(laser source function)

Work temperature (℃)

-10+60

Storage temperature (℃)

-25+70

Dimension(mm)

161×90×44

Weight(g)

225


Remark:

1.Laser source in modulation, may influence the stability of the output power, this is the normal case.

2.The battery operation time is defined under the back light off, if the backlight on, the operation time may shorter.
