/Secondhand yokogawa AQ1200 OTDR

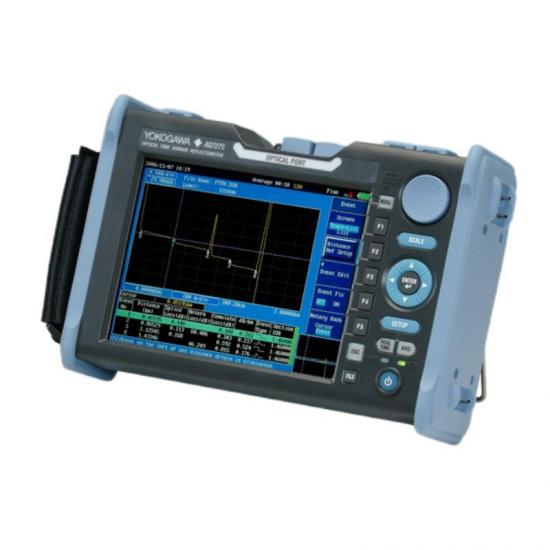

Secondhand yokogawa AQ1200 OTDR

The reflectometer operation is comfortable and efficient due to the easy to use software, pass/fail analysis and the ability to save configuration setups. A quick 10-second startup helps to minimize operation time.
  • Item NO.:

    AQ1200
  • Payment:

    T/T, Paypal, Western Union, Moneygram, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 3 Working Days
  • Product Detail

Features

  • Compact and lightweight handheld device.
  • Wavelength: 1310/1550 nm (single-mode), 850/1300 nm (multimode).
  • Dynamic range: 40/38 dB (SM), 22.5/24 dB (62.5GI), 21/22.5 dB (50GI).
  • Short Dead Zone: 0.8 m/1 m.
  • Pass/Fail analysis.
  • Displays up to eight digits of the relative one-way direction between two arbitrary points on the trace.
  • Displays one-way loss in steps of 0.001 dB to a maximum of 5 digits.
  • Displays the one-way loss, loss per unit length, and splice loss between any arbitrary points on the trace.
  • Measures return loss and total return loss of a fi ber cable or between two arbitrary points on the trace.
  • Battery power supply, 6 hours battery life.
  • USB interface.
  • Internal memory and USB storage.
  • 8.4-inch color TFT LCD.
  • Standards:
    • Laser: Class 1 M (IEC 60825-1:1993 + A2:2001); 21CFR1040.10.
    • Safety: EN61010-1.
    • Emission: EN61326-1 Class A; EN55011 Class A Group 1.
    • Immunity: EN61326-1 Table 2.

Optical Time Domain Reflectometer
Applicable fiber Single-mode: SM (ITU-T G.652)
Multimode: GI (62.5/125µm, 50/125µm)
Wavelength 1310/1550 nm (± 25 nm), 850/1300 nm (± 30 nm)
Dynamic range 40/38 dB (SM)
22.5/24 dB (62.5GI)
21/22.5 dB (50GI)
Event dead zone 1 m (max.) @ 850/1300 nm
0.8 m (max.) @ 1310/1550 nm
Attenuation dead zone 7 m (typ.) @ 1310 nm, 8 m (typ.) @1550 nm, 6 (typ.) @ 850 nm, 10 (typ.) @ 1300 nm
Light source –5 dBm or more (±0.1 dB)
Optical power monitor –50 dBm to –5 dBm (±0.5 dB)
Distance range 500 m, 1 km, 2 km, 5 km, 10 km, 20 km, 50 km, 100 km @ 850/1300 nm
500 m, 1 km, 2 km, 5 km, 10 km, 20 km, 50 km, 100 km, 200 km, 300 km, 400 km, 512 km @ 1310/1550 nm
Pulse width 3 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 µs, 2 µs, 5 µs @ 850/1300 nm
3 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 µs, 2 µs, 5 µs, 10 µs, 20 µs @ 1310/1550 nm
Horizontal Axis Parameters
Sampling resolution 5 cm, 10 cm, 20 cm, 50 cm, 1 m, 2 m, 4 m, 8 m, 16 m, 32 m
Readout resolution 1 cm (Min.)
Sampling Points Up to 50,000
Group refractive index 1.30000 to 1.79999 (0.00001 step)
Units km, kf or miles
Vertical Axis Parameters
Vertical axis scale 0.2 dB/div, 0.5 dB/div, 1 dB/div, 2 dB/div, 5 dB/div, 7.5 dB/div
Readout resolution 0.001 dB (Min.)
Data Storage
File Formats Read: SOR, TRD, TRB, SET (AQ7270/75)
Write: SOR (Telcordia), SET, CSV, BMP, JPG, PNG
Storage Capacity Internal: ~1000 waveforms; External via USB
General
Display 8.4-inch color TFT LCD (640 × 480)
Power supply Battery: 10.8 V, 2100 mAh
AC power adapter: 100 to 240 V, 50/60 Hz
Battery operation 6 hours
Recharge Time 5 hours
Power consumption 70 W (max.)
Interface USB 1.1; LAN (optional)
Operating Temperature 0°C to +45 °C
Size 287 × 197 × 85 mm
Weight 2.8 kg
