The reflectometer operation is comfortable and efficient due to the easy to use software, pass/fail analysis and the ability to save configuration setups. A quick 10-second startup helps to minimize operation time.
Item NO.:
81CPayment:
T/T, Paypal, Western Union, Moneygram, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 3 Working Days

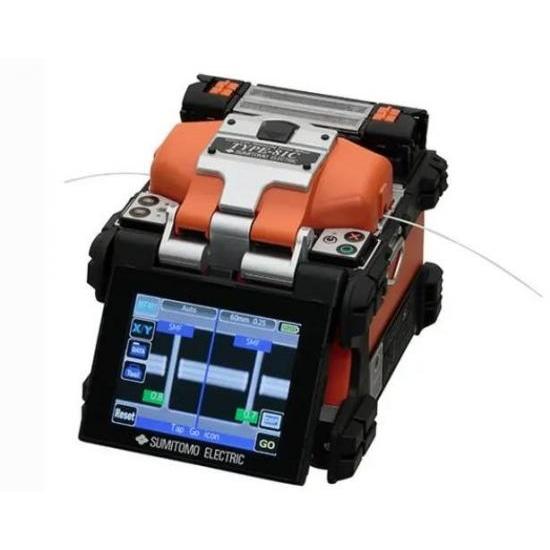

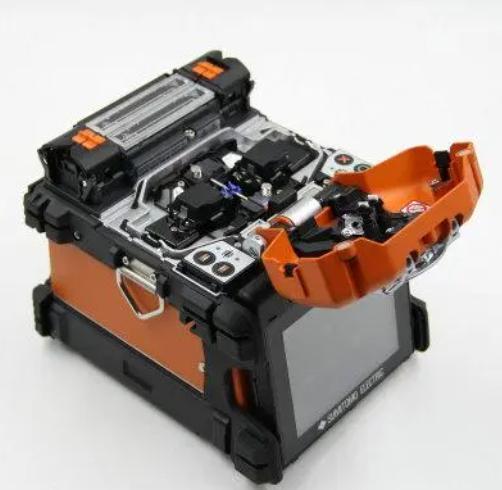

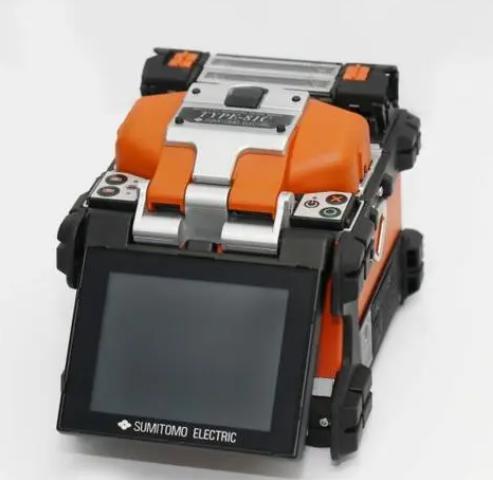

Sumitomo TYPE-81C is advanced electronic design, which accommodates the built-in dual heating system and simultaneous operation, makes the faster fusion splicer available on the market by reducing the bottle neck of “heater wait time”. With an individual heater cycle time of only Approx.28 seconds (60mm Fiber protection sleeves) and a splice cycle of only Approx.7 seconds (Quick mode), the TYPE-81C improves splicing efficiency and productivity dramatically, thereby reducing labor time and costs while increasing project and customer service turn-up.
Features
Compact & Lightweight with only 2.1 kg weight including battery
Ultra fast splicing (7 sec.)
Ultra fast heating (28 sec.)
Dust-free, water resistant and shock-proof.
Touch-screen operation
Specification
|
Applicable fibers |
SMF(ITU-T G.652),MMF(ITU-T G.651),DSF(ITU-TG.653),NZDSF(ITU-T G.655),BIF(ITU-T G.657),EDF |
|
Fiber diameter |
Cladding diameter:80-150μm;Coating diameter:100-1000μm |
|
Cleave length |
5~16mm |
|
Splice loss |
0.02dB(SMF),0.01dB(MMF),0.04dB(DSF),0.04dB(NZDSF) |
|
Typical splicing time |
7sec.(Qulck mode) ,7.5sec.(SMF standard mode),8sec.(Auto mode). |
|
Fiber view&magnification |
Two CMOS cameras observation,320X(zoom:700X) for X or Y single axis view,for both X&Y dual axis view |
|
Attenuation splicing |
0.1dB to 15dB in 0.1dB increments. |
|
Monitor |
4.1'' touch screen color LCD display |
|
Weight |
1.8kg(without batter),2.1kg(with battery) |
|
Monitor |
3.5 inch TFT color LCD monitor |
|
Power supply |
AC input:100~240V,DC input:10~15V ,.Battery module:Li-ion 11.1V,4600 mAh (BU-11). |
|
Dimension |
120mm(W)×154mm(D)×130mm(H) |
|
Operating condition |
Altitude 0~6000m,Temperature:-10~+50C,Humidity:0~95%,wind velocity up to 15m/s. |
Sumitomo Type-81C Fusion Splicer Packing List:
|
NO |
ITEM |
QTY |
REMARKS |
|
1 |
Main unit |
1Pcs |
Main Body |
|
2 |
Battery module |
1Pcs |
Accessories |
|
3 |
Power supply module |
1Pcs |
Accessories |
|
4 |
Power cord |
1Pcs |
Accessories |
|
5 |
Cooling tray |
1Pcs |
Accessories |
|
6 |
Spare electrode |
1Pcs |
Accessories |
|
7 |
Operating CD manual |
1Pcs |
Accessories |
|
8 |
Quick reference guide |
1Pcs |
Accessories |
|
9 |
Carrying case with worktable |
1Set |
Accessories |
|
10 |
Hand strap |
1Set |
Accessories |
|
11 |
USB Cable |
1Set |
Accessories |
