Optional SC FC OTDR Launch Cable

Compact and rugged packaging.

Case can house up to 500-1,000 meters of fiber.

Standard boxes along with custom configurations for OTDR applications.

Item NO.:
SCB1
Order(MOQ):
1
Payment:
T/T, Paypal, Western Union, Moneygram, etc.
Product Origin:
China
Color:
Standard
Shipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.

Inquire Now

Product Detail

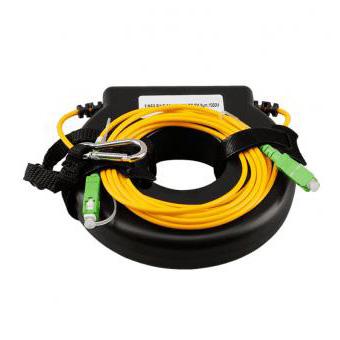

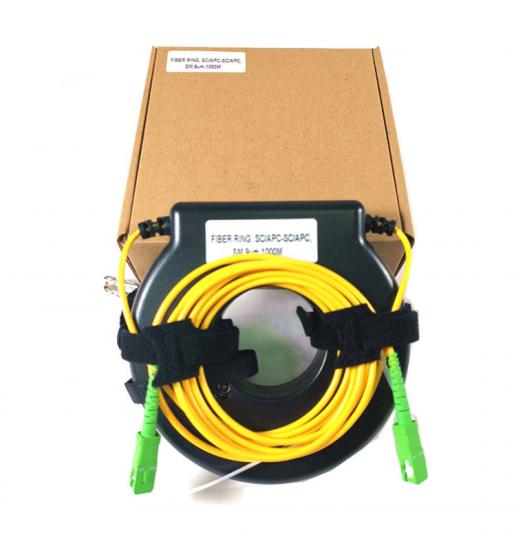

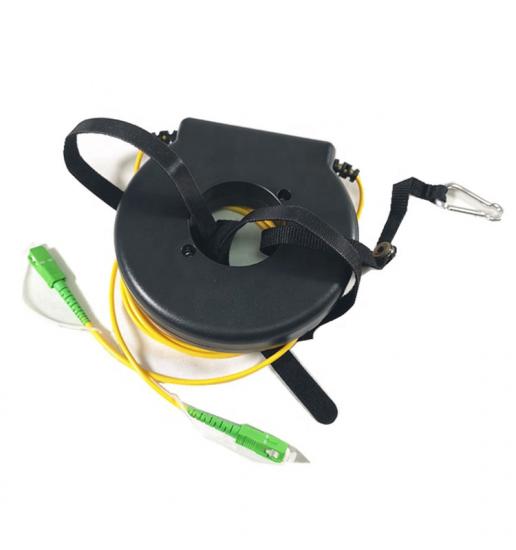

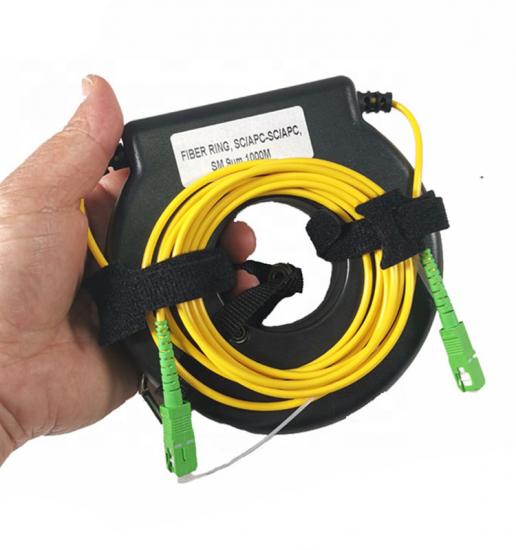

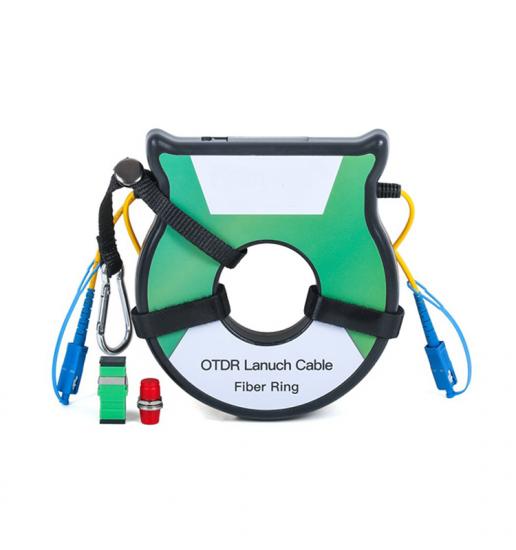

Launch Fiber Ring

SC/FC/LC connectors are selectable as well as the UPC and APC polishing mode.Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber Ring is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty

Feature & Application

Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
Compound Latch for positive seal and easy opening with locking feature.
Nonmetal construction will not dent, corrode, or conduce electricity
Water and dust proof allowing the unit to be taken into almost any environmen
Auto Purge Valve for changes in altitude and temperature

Specifications

Dimensions(mm)	Diameter 6.25 ", Height 1.25"
Fiber Length(m)	100 to 1000
Fiber Types	Singlemode 9/125, Multimode 62.5/125, Multimode 50/125 OM2, Multimode 50/125 OM3
Lead Length	2 Meters, 3mm buffer
Insertion Loss	<0.3dB/km typical, <0.5dB/km max
Back Reflection (RL):	UPC: <-50dB, APC: <-60dB
Mating Reliability	<.2dB
Storage Temp.	-40° to +85° C
Humidity	0 to 95%, non-condensing
Weight	5 oz.

Related Tags : Reliable OTDR Test Extension Line Cheap OTDR Launch Cable Box FTTH OTDR Dead Zone Eliminator OTDR Test Patch Cord SC OTDR Test Extension Cord
