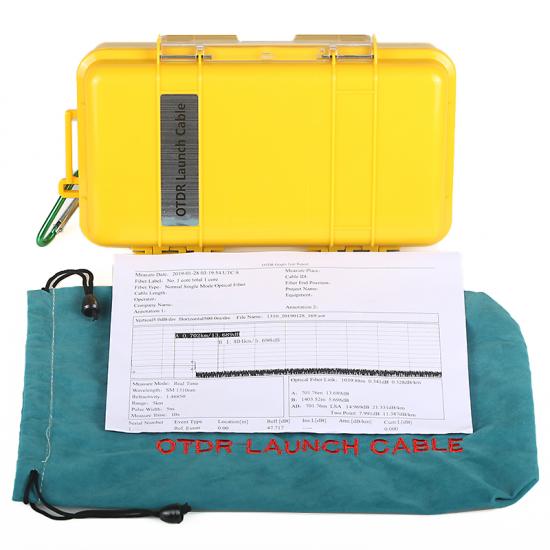

Boxed OTDR Launch Cables UPC/APC

OTDR test extension Cable.
Mainly used to make up the OTDR test blind area, the middle of the optical fiber without any fusion joint, small size, light weight, easy to carry.

  • Item NO.:

    SCB2
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Western Union, Moneygram, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Product Detail

Introduction

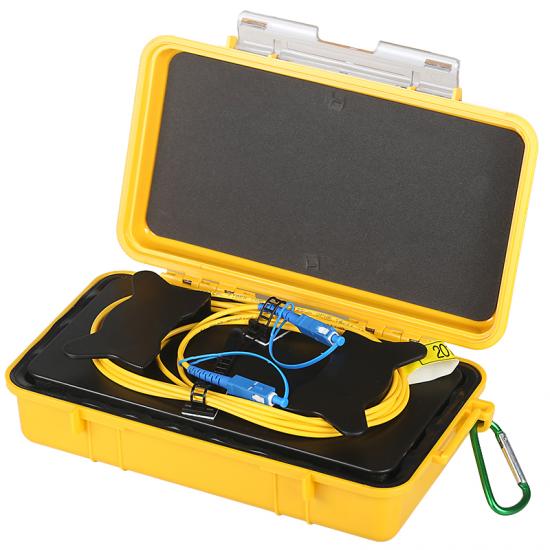

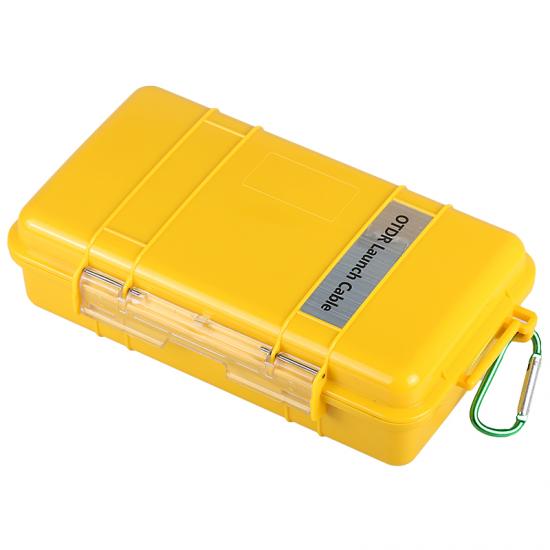

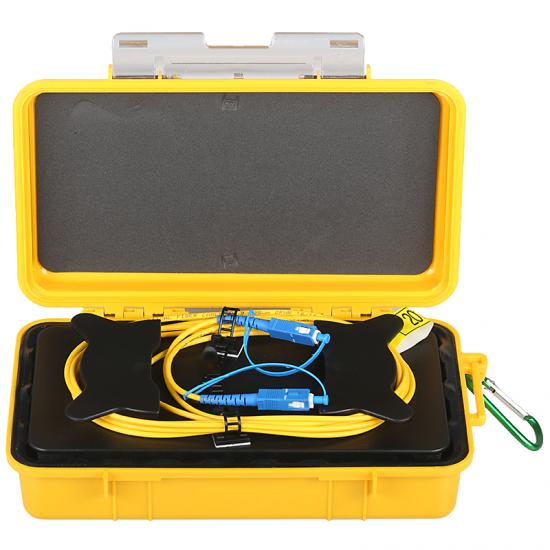

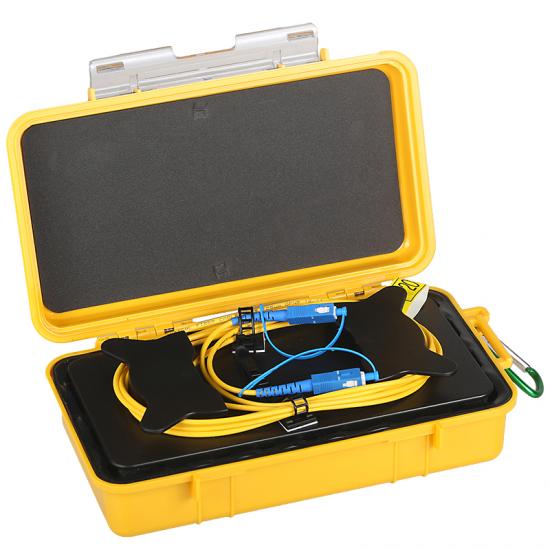

      OTDR Launch Cable box is mainly used to make up the dead zone of OTDR test. There are no fusion joints in the center of optical fiber, small size, light weight and easy to carry. The loss is less than or equal to 0.5dBm/km. It has excellent sealing properties, waterproof and anti-fouling. Come with a plastic box to conveniently store the OTDR launch cable.


Features

  • Use as a pulse suppressor, OTDR launch box, delay line, product demonstrations, training, calibration.
  • Solid internal housing protects spool and leads
  • Leads wrap in the same direction for quick, easy access and storage.
  • Karabiner Clip included allows unit to be attached to equipment straps, belts and rack mounts.
  • Light weight, easy to carry, small/low profile design portable for field use.
  • Measures only 6.25" x 1.25"
  • Single-mode 9/125, Multimode 62.5/125, Multimode 50/125 OM2 and Multimode 50/125 OM3
  • Custom length configurations available


Specification

Dimensions(mm)

Diameter 6.25 ", Height 1.25"

Fiber Length(m)

100 to 1000

Fiber Types

Singlemode 9/125, Multimode 62.5/125, Multimode 50/125 OM2, Multimode 50/125 OM3

Lead Length

2 Meters, 3mm buffer

Insertion Loss

<0.3dB/km typical, <0.5dB/km max

Back Reflection (RL):

UPC: <-50dB, APC: <-60dB

Mating Reliability

<.2dB

Storage Temp.

-40° to +85° C

Humidity

0 to 95%, non-condensing

Weight

5 oz.



Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Water-Proof SM MM 1000m Fiber Rings
Optional SC FC OTDR Launch Cable

Compact and rugged packaging. Case can house up to 500-1,000 meters of fiber. Standard boxes along with custom configurations for OTDR applications.

Fiber Laser Repair
Laser Source S400 LDF Large Diameter Fiber Fusion Splicer

S400 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~500um) with  S400 LDF Specialty Fiber Fusion Splicer. Specifications Model S400LDF Applicable fiber SM(Single mode); MM(Multi mode); DS; NDZS Dimension Weight 2.4KG (including battery) Return loss >60dB Electrode life Typical 3000 times discharge Fiber diameter Cladding diameter:125~500μm Heat-shrinkable tube 60mm、40mm and a series of miniature tube Data storage 10000 groups data records and 100 group images Typical heating time 20seconds (60mm heating tube) Tension test Typical 2N Typical splice time 8-10 seconds Typical splice loss 0.02dB(SM); 0.01dB(MM); 0.04(DS); 0.04(NZDS) Cutting length 8~16mm(Coating diameter

Outdoor SC Ethernet Media Converter

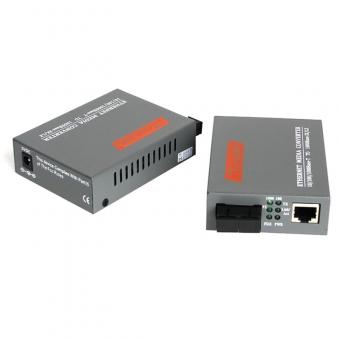

Multi Mode Dual Fiber Optic Media Converter

High speed and high bandwidth fast Ethernet workgroup user needs. Ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.

OPM Fiber Power Meter
Smart FTTX Optic Power Meter S305

Pocketsize, Lightweight and Easy-to-use. Apply to maintenance in Telecom & CATV, Fiber Optic Lab Testing etec.

fiber optic hot stripper
SH-R403 Handheld fiber optic hot stripper

The main function of  this productis to remove the coating layer of optical fiber. The removal speed is fast and efficient, and the coating layer is not damaged after removal.

Latest Pon Optical Power Meter
Stable Optic Fiber PON Power Meter S316

Designed for PON network construction and maintenance. It can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network.

Fiber Laser Repair

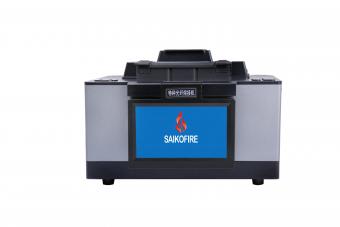

S500M Large Diameter Fiber Fusion Splicer
