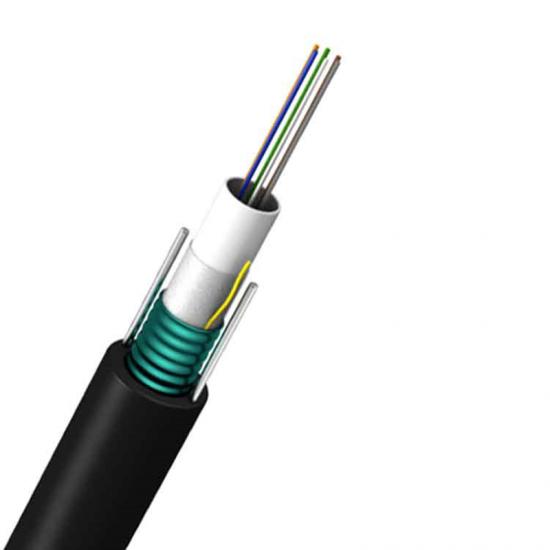

Armored GYXTW 4 6 12 Core Aerial Central Tube Fiber Cable

Covers the general requirements and performance of cable for GYXTW.

Offered including optical characteristics, mechanical, characteristics and geometrical characteristics and etc.

  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

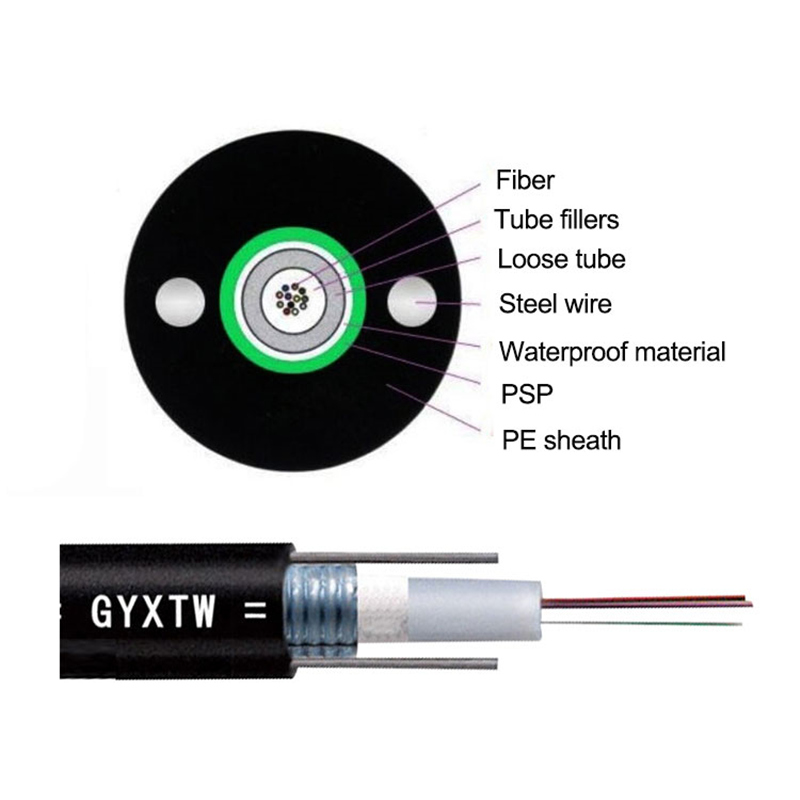

GYXTW central bundle tube cable is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.

Features


  • Has good mechanical and temperature properties.
  • The loose tube material itself has good hydrolysis resistance and high strength.
  • The tube is filled with a special grease to provide critical protection to the fiber, good pressure resistance and softness.
  • Double coated steel strip (PSP) improves the moisture resistance of the cable.
  • Two parallel wires ensure the tensile strength of the cable.
  • Small diameter, light weight and easy to lay.
  • Long delivery length


Specifications

Cable model

Fiber Cores

Diameter

(mm)

Weight

(kg/km)

Allowable stretching

force Long/short term

(N/100mm)

Allowable crushing

Force Long/short term

(N/100mm)

Bending radius

Static/dynamic

(mm)

GYXTW-2~12

2~12

10.6

124

1000/3000

1000/3000

10D/20D

GYXTW-14~24

14~24

12.5

149

1000/3000

1000/3000

10D/20D

GYXTW-26~36

26~36

14.0

190

1000/3000

1000/3000

10D/20D

GYXTW-38~48

38~48

15.0

216

1000/3000

1000/3000

10D/20D

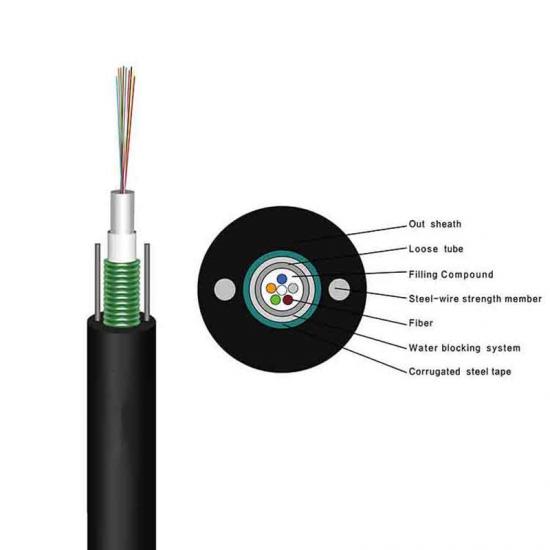

Overhead Duct Buried GYXTW 10 Core Fiber Optic Cable

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

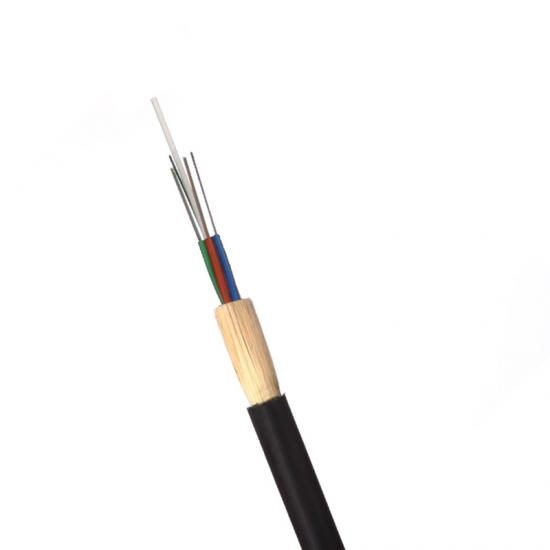

Double Mode 36 Core Fiber Optic Cable ADSS
