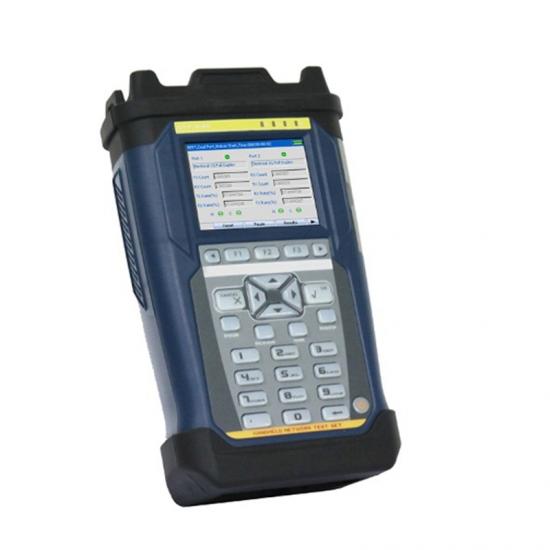

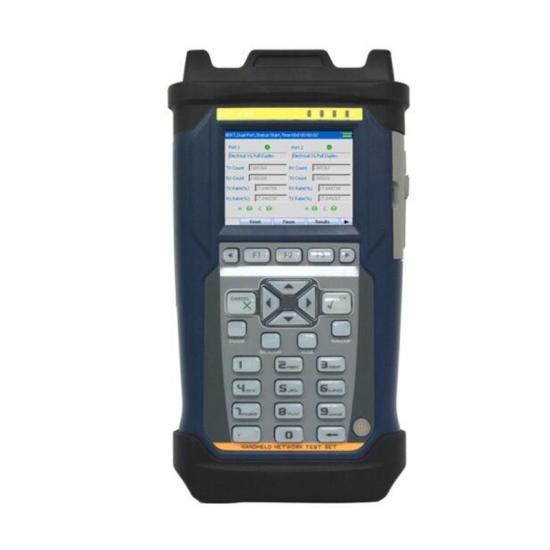

Handheld Gigabit Ethernet Test Set

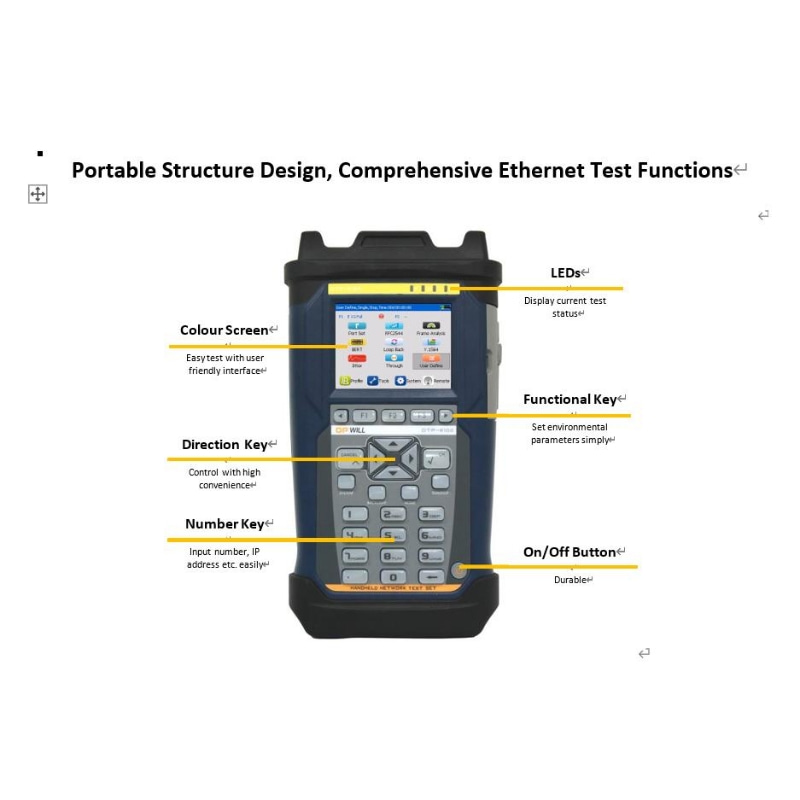

Compact and durable, specialized for outdoor field test.

User friendly interface, with high resolution colour touch screen.

Fast boot up technology.

High quality, but reasonable price.

Support comprehensive Ethernet test functions from installation and commission to operation and maintenance.

  • Item NO.:

    S6126
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

S6126 Handheld Gigabit Ethernet Test Set is designed and manufactured by SeikoFire, which is specialized in one Gigabit Ethernet network deployment and comprehensive test, and compatible with indoor laboratory and outdoor field environment.

It can fully meet Ethernet standard, support the latest version of ITU-T; Y.1564; IETF RFC2544; IETF RFC3393; IEEE 802.3; IEEE802.1 standards or recommendations and so on

Features

· Support full-duplex 10/100/1000 Mbps Ethernet data stream;

· Support RFC2544 (Includes: Throughput, Frame loss, Back-to-back; and Latency);

· Support Y.1564 (Optional);

· Support RFC3393;

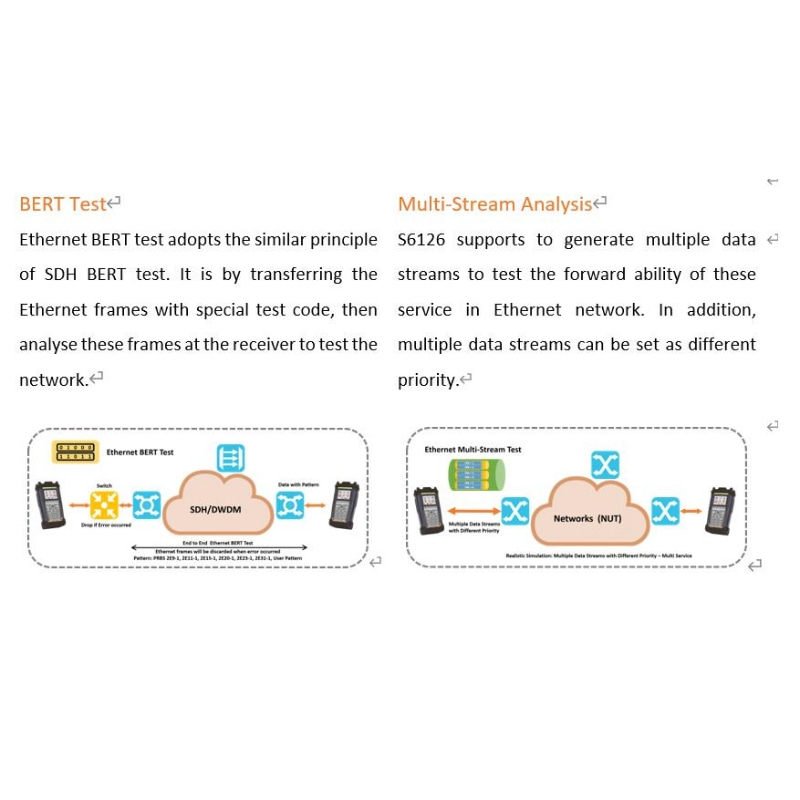

· Support L1/L2/L3/L4 BERT test;

· Support to generate 8 data streams in maximum (MAC address, VLAN label, MPLS, IPV4/IPV6 address,    Payload, and Bandwidth);

     · Support to set flow priority according to CoS and ToS/DSCP;

· Support filter and package capture online;

· Support to verify SLA automatically by RFC2544 and Y.1564;

· Support dual-port through function;

· Support SDT (Service disruption test);

· Support 3 layer CoS configuration to verify Metro Ethernet service;

· Support to display test result graphically, easier to view;

     · Specialized for One Gigabit Ethernet installation; operation; maintenance; and troubleshooting, or IP    service.

General Specification

User Interface

Screen

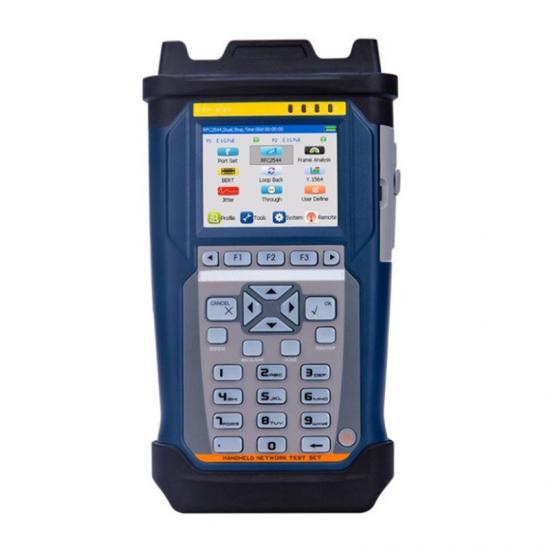

3.5 inch TFT touch screen (320×240);

Other Interface

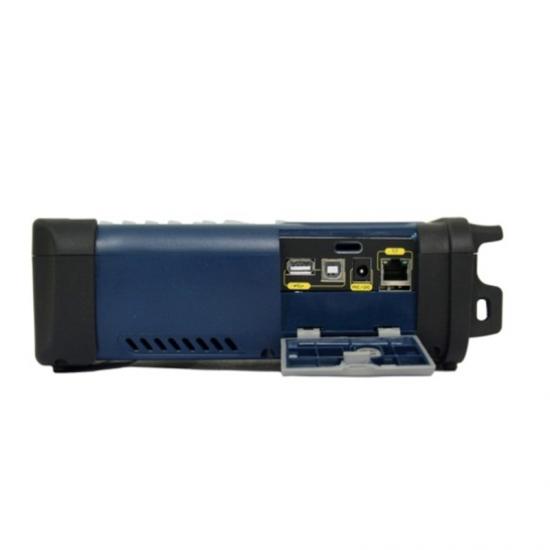

USB

· USB2.0, type A,1;

· USB2.0 type B, 1;

Ethernet

10/100M Base-T, RJ45;

Storage

128M;

Physical Specifications

Size

80(H)x 135 (W) x 250(D) mm;

Weight

1.1kg;

Temperature

· Operating: -10°C to 50°C;

· Storage: -40°C to 70°C;

Relative Humidity

0% to 95% (non-condensing);

EMC

· EN55022/CIPSR22;

· EN61000-3-2;

· EN55024;

Battery and Power Supply

Battery

· Rechargeable Li-Lon battery;

· Working time: 8 hour;

· Charging time: <3 hours (typical: 25°C);

Power Supply

· Input: 100-240V AC, 50-60Hz, 2A;

· Output: 15V DC, 2A.

Technical specifications

Ethernet

Port

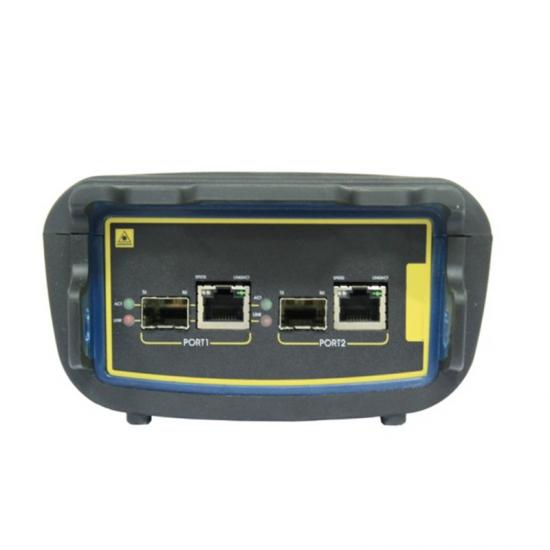

· Electrical interface: 2 ports, 10/100/1000M Base-T;

· Optical interface: 2 ports, 100/1000M Base-X;

User select-able optical module: 850nm, 1310nm, 1550nm.

Ethernet Feature

Auto negotiation, full and half duplex, flow control;

Configuration

Monitor/generate, pass-through;

Encapsulation

Ethernet type II, IEEE802.3 with 802.2, IEEE802.3 with SNAP;

Configuration, Monitoring, and Generation

Traffic Generation

· Variable line rate traffic generation, up to full line rate;

· Traffic generate mode: continuous, burst, ramp, n-frame, n-burst, n-ramp;

· Adjustable frame size: 38 bytes to 16000 bytes;

· Frame size: constant, iMAX, random;

· User-defined traffic mix of unicast and broadcast frames;

· Fixed or increment MAC/IP identifier;

· User programmable DSCP/TOS byte;

·  Configurable IP and Ethernet source and destination addresses (support IPv4 and IPv6 addressing);

·  User programmable TCP/UDP address;

·  Generate pause frames, respond to pause frames;

·  Answer incoming ARP, Ping requests (ON/OFF);

Stacked VLAN

· Up to 3 user-settable VLAN tags;

· Parameters per VLAN tag:

· Ethernet type II 0x8100 (802.1Q), 0x88a8 (802.1ad), 0x9100, 0x9200, or 0x9300;

· User-defined VLAN ID, CFI, VLAN priority;

Multi stream

Number of streams: up to 8 streams per port can be activated;

Error Injection

FCS, IP check sum error, CRC4 error, bit error;

Alarm generation

No link;

Result, Monitoring and Generation

Status

· Link status, interface type, jabber detected, frames present, MPLS/VLAN, speed, full or half duplex, signal present, bit rate of incoming Ethernet signal, auto negotiation complete;

· Link partner abilities: speed/duplex;

· Indicators of utilization, throughput, error-ed frames;

· Signal level indication for optical Ethernet interfaces;

Performance Statistics

Utilization, throughput, frame rate;

Frame Statistics

· Total frames, total testing frames, total not testing frames, uni-cast/multicast/broadcast frames, number of pause frames;

· Total VLAN frames;

· Total MPLS frames;

· Total error-ed framed, number of oversized, normal, and runt frame, number of FCS error-ed;

Frame Distribution Statistics

· Total valid/frames, <64, 64-127, 128-511, 512-1023, 1024-1518, >1518;

Multi stream

Display information per steam:

· Frame loss count/rate, throughput, latency, packet jitter, frames and bytes received and transmitted;

Transmit Statistics

Total frames, unicast/multicast/broadcast;

Filter

Filter condition support:

· Source and destination MAC/IP, IPv6, VLAN ID and VLAN Priority, MPLS, IP TOS, TCP/UDP source and destination port, Ethernet type and IP protocol;

BER Test and Service Disruption Test

BER Test

· Generation and detection of test pattern, count of errors in received test pattern;

· Pattern generation: layer 1 to layer 4;

· Frame loss count and frame loss seconds;

· BER measurement results;

· Test pattern: PRBS9, PRBS11, PRBS15, PRBS20, PRBS23, PRBS31, CRPRJ, JTPAT, SPAT, 32bits user defined;

Error Injection

FCS, IP check sum error, UDP/TCP check sum error, bit error;

Service Disruption Test

Service disruption test activated as part of BER test:

·  Max/avg service disruption test, resolution: 0.1us;

·  Number of service disruption;

Loopback and Pass Though

Loopback Test

· Layer 1 to layer4 loopback test;

· Advanced loopback test:

· Packet loss setting: percentage, packet count, time;

· Loopback drop enable: protocol loss, protocol pass, control, CRC error, IP/TCP/UDP error;

Pass Through Test

· Pass through monitoring function between 2× 1GE electrical or 2×1GE optical ports;

· Advanced pass through test;

· Packet loss setting: percentage, packet count, time;

· Pass through drop enable: protocol loss, protocol pass, control, CRC error, IP/TCP/UDP error;

RFC3393

Jitter Test

· G.711, G.723.1, G.729 and so on VoIP packet jitter test;

· Jitter result: hits, min, max, current, average;

RFC2544

RFC2544 Test

· Switch/router test and single ended network test mode:

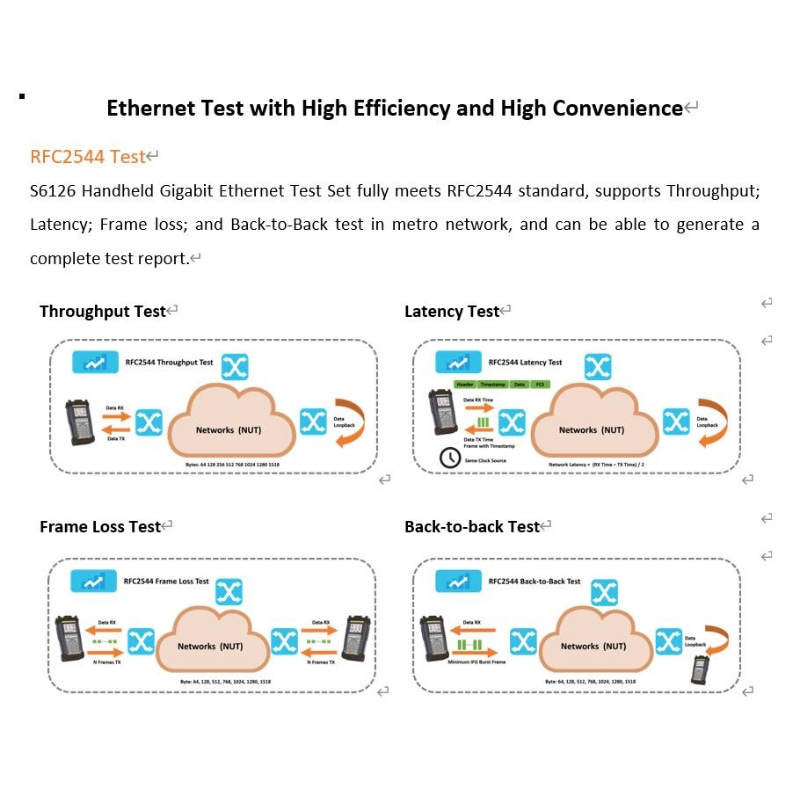

· Throughput, frame loss, latency, back-to-back;

· End-to-end network test mode (2 units in local-remote setup):

· Throughput, frame loss, back-to-back;

Service Activation Test (Y.1564)

Service Activation Test

ITU-T Y.1564 Service Activation Test:

· Up to 8 services per port;

· Colour-aware and non-colour-aware in combinations;

· Test modes: one-way (uni-or bi-directional, symmetrical, or asymmetrical), round-trip;

Service Activation Test

· Verification against service acceptance criteria: information rate, frame transfer delay, frame delay variation, frame loss rate, availability;
