Fiber Coating Machine,optical fiber recoater

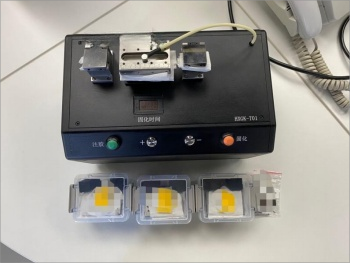

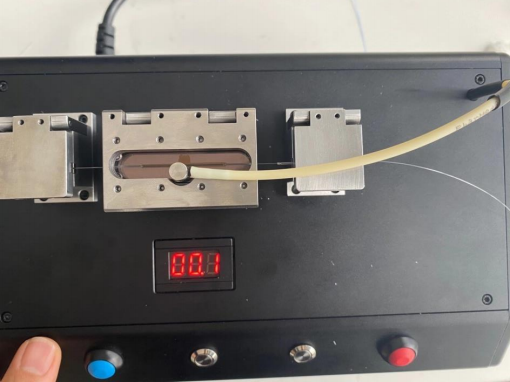

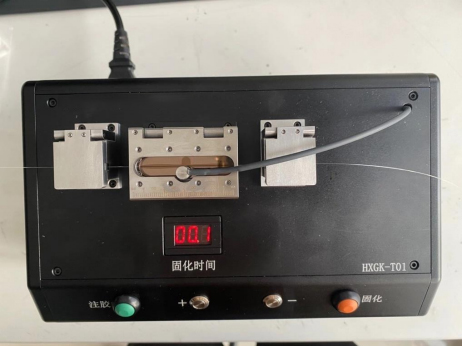

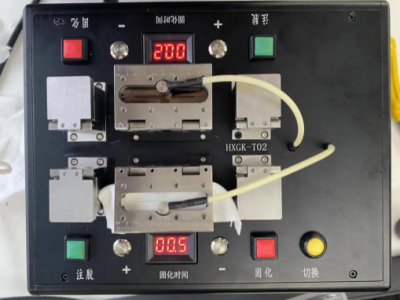

T0X series optical fiber recoater is the latest high-precision optical fiber recoater, including four types (HXGK-T01---HXGK-T04), suitable for various types of ordinary fiber, ribbon fiber and polarization maintaining fiber.

Products are well-crafted with stable quality and easy to operate. They have a wide range of applications in scientific research, fiber optic sensing, fiber optic gyroscopes, optical switches, fiber optic lasers, fiber optic communications, etc. They are designed as multi-functional coating machines for fiber optic recoating repair.

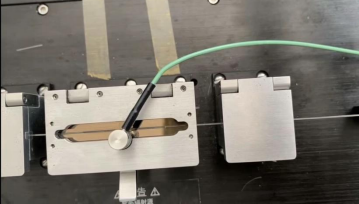

The coating length of this optical fiber recoater is 50 mm or 100 mm (customizable type), used to repair the outer coating layer of fusion-spliced optical fibers, to restore the physical and optical characteristics of the fibers, and to enhance the flexibility of the fibers to protect the bare fiber and fusion point.

  • Item NO.:

    SH-T0X
  • Payment:

    T/T, Paypal, Credit Card, western Union, etc.
  • Product Detail


Model

SH-T0X

Size

249×155×175mm

Usage

Semi-automatic

power supply

220V 50/60Hz

Glue injection system

Convenient resin storage and pressure injection pump design for quick filling or replacement of resin

Injection method

Semi-automatic button injection

Injection speed

0.0015ml/s

injection volume

0.006ml

Suction port pressure

-85KPa-110KPa

Light

LED light

Recoating time

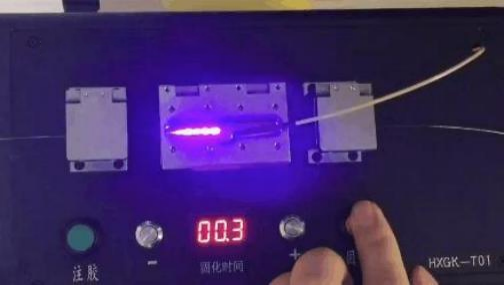

Glue injection time 6-10s, high refractive glue curing time 1s, low refractive glue curing time 7s.

Reoating cycle

60s

Mold type

quartz

Mold cleaning

It must be cleaned after each application

Operating environment

Temperature 0-40 degrees, humidity within 90%, no condensation

Storage environment

Temperature -40-60 degrees, humidity within 90%, no condensation

Applicable scope

Fiber within 900um in diameter

Recoating diameter

180um200um280um300um430um600um700um860um900um (Optional) Other customizable options.

Recoating length

Recoating length 4-50mm adjustable; 100mm extension module can be customized

UV-curable materials



Compatible with high and low refractive index recoating materials, adapt to all kinds of curable acrylic recoating materials, users can replace it at will

Weight

5KG
