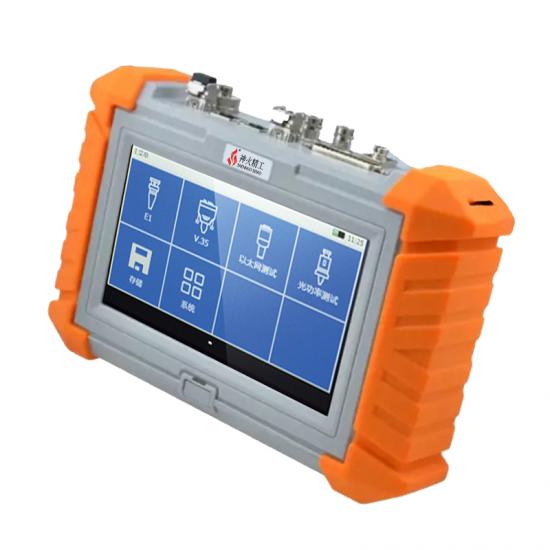

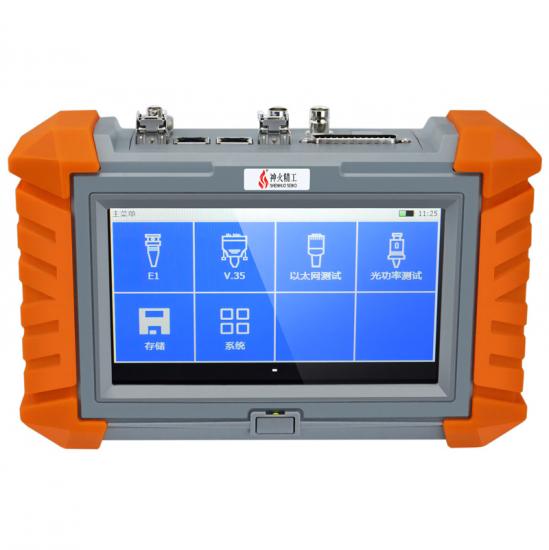

Integrated Ethernet Datatester S181

Introduction

S181 is a multifunctional hand-held integrated Ethernet data tester equipped with various physical interfaces for tests on E1,V.35 and 10M/100M/1000M Ethernet.It isportable and easy to operate. The result of PASS or FAlL is directly displayed on screen; saving time for both engineeers and workers in construction, on-site installation and maintenance.

Features

•10M/100M/1000M Ethernet Test
• High Speed IP Ping test
• Provide RFC2544 (throughput, latency, bit loss rate, back-to-back) function tests
• Optoelectronic interface supports 850m/1300m/1310nm/1550nm wavelengths
E1/V.35Test

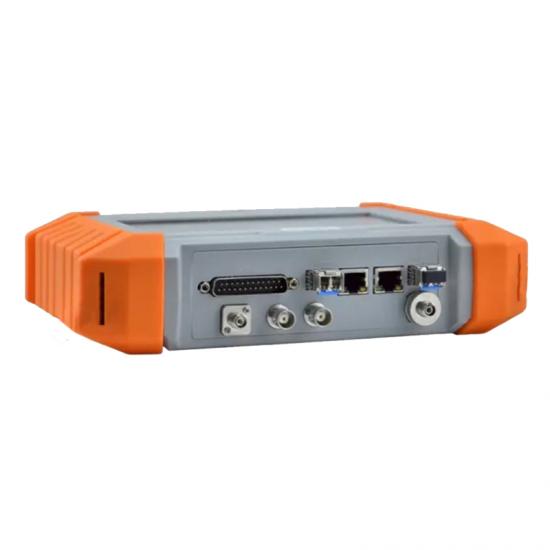

• Provide E1, V.35 interface
• Support BERT error feature testing (G.821, G.826, M.2100)
• Support Frame Relay, HDLC, PPP protocol testing
• Support E1 Ping & loopback Ping test
• Automatic detect destination IP address (HDLC/PPP/FR)

Specification

10/100/1000M Ethernet part

Ethernet main tests

● Dual Optoelectronic interfaces, automatic reccgnition for 850nm/1300nm/1310nm/1550nm

●10/100/1000M network service

● DHCP automatic/manual acquaintance of IP address

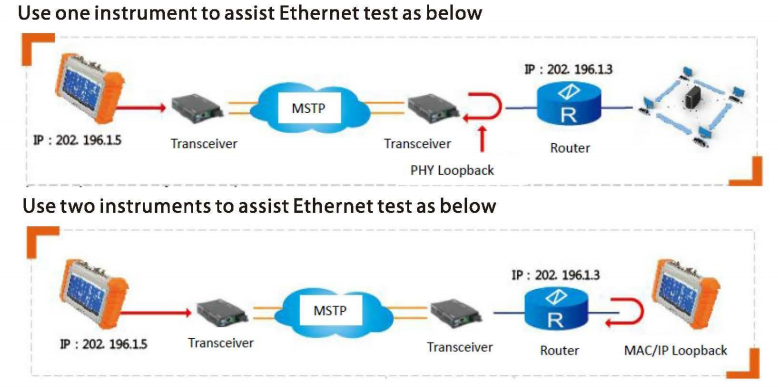

●RFC2544(throughput,latency,bit loss rate,back-to-back) function tests with routing equivalent loop back

●Full Speed PING with routing equivalent loop back

● Tracert Function

● ARP Scan

E1 Part

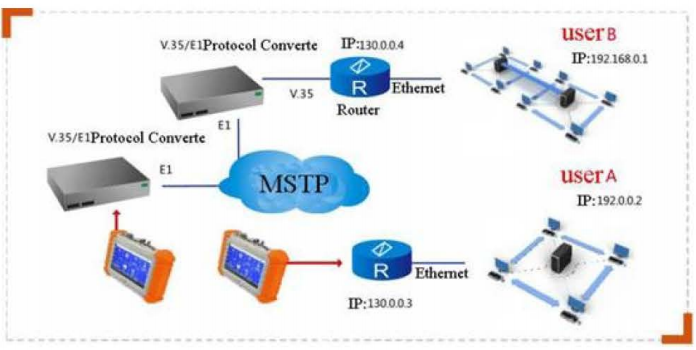

E1 interface Error test and IP Ping (PPP/HDLC/frame relay)test illustration

Specific Indicators

●Test rate:2.048Mbps,N(continuous)and M(discontinuous)x64Kbps(N&M=Ito31)Insert/remove Nor M x 64kbps

● Line Code:HD83&AMI

● Frame type: Non-framing,PCM-30,PCM-30c,PCM-31,PCM-3Ic,conform to ITU-G.704

● Online,offline test function

Transmitting end

● Clock source,internal clock:2.048MHz±5ppm

●Reception:the received signal is locked

● Line Code:HD83&AMI

● Pulse waveform:conform to ITU-TG.703

● Error insertion: BIT,CODE,BIT+CODE;single or 1xl0-1 to 1x10-7 rate

Receiving end

●Frequency range:2.048Mbp±8000bps

● Input sensitivity:0-43dB

●Return loss performance conform to ITU-TG.703,jitter resistance

● Conform to ITU-TG.823

V.35 Part

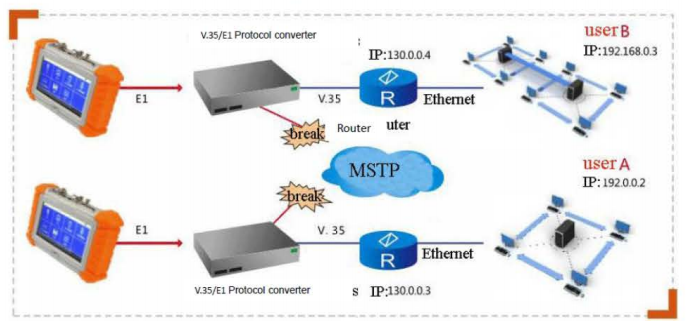

V.35 interface Error test and IP Ping(PFP/HDLC/frame relay)test illustration

Test rate:Nx64Kbps(N=1-31)

●Using V.35,DCE/DTE access mode&V.224 Synchronous test mode to test pattern PRBS:2n-1,n=9,11,15,20,23,in accordance with ITU-T0.152

● Testing of BERT bit error characteristics in accordance with G.821 analysis

● Provide V.35 monitoring

● Support PPP, HDLC two-tier routing protocol analysis

● Automatic detect router IP address

● Fast traffic IP PING function and loopback PING
