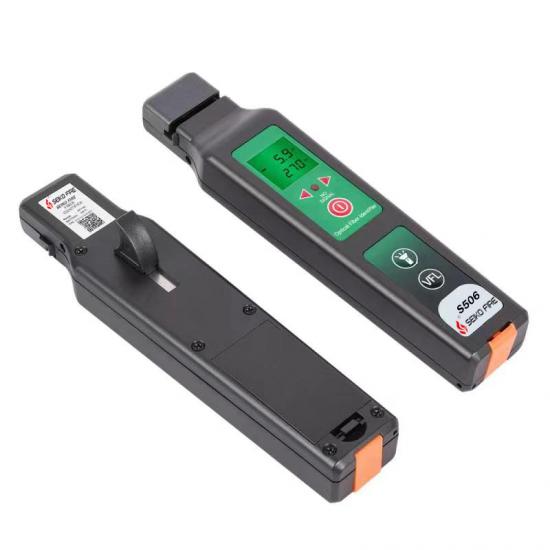

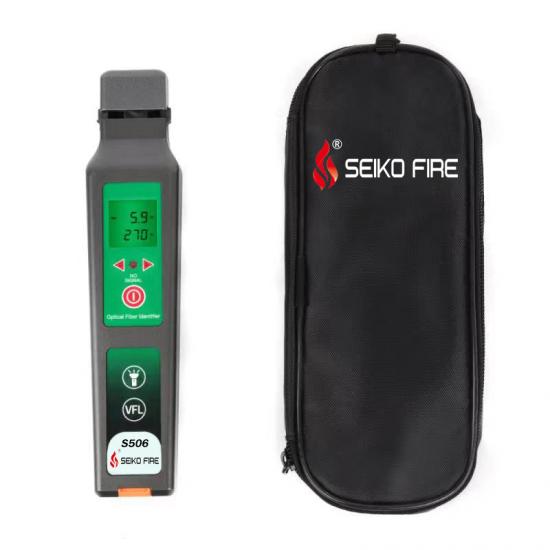

Optical Fiber Identifier with VFL S506

Upgraded high accuracy fiber identifier S506 integrates VFL and LED lighting function,It is one of the necessary tools for fiber maintenance.Fiber identifier can detect any position of the single mode and multi mode fiber.

  • Item NO.:

    S506
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

Upgraded high accuracy fiber identifier S506 integrates VFL and LED lighting function,It is one of the necessary tools for fiber maintenance.Fiber identifier can detect any position of the single mode and multi mode fiber.

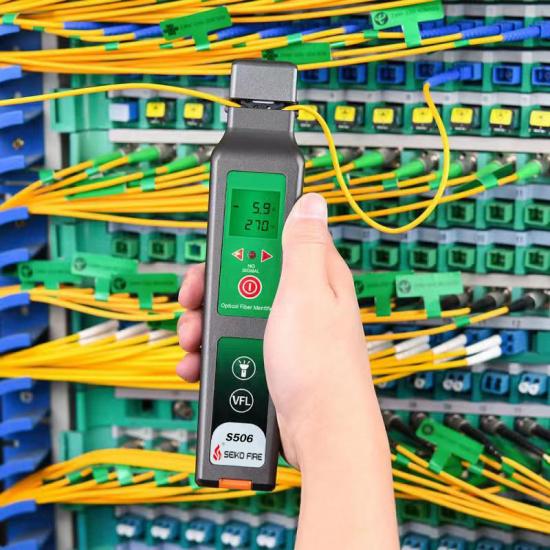

With the fiber identifier to identify the fiber on the line, you can identify the fiber power and 3 kinds of signal frequencies, and there will be a buzzer sound when identifying the frequency.Display the signal direction via left and right direction light and to make prompt judgment.VFL adopt 2.5mm universal connector and output power is up to 10mW,It can detect fiber break or bending problems within 10km,and it supports pulse and continuous wavelength operation.And it equipped with LED light,convenient for you to work in the dark.


Features

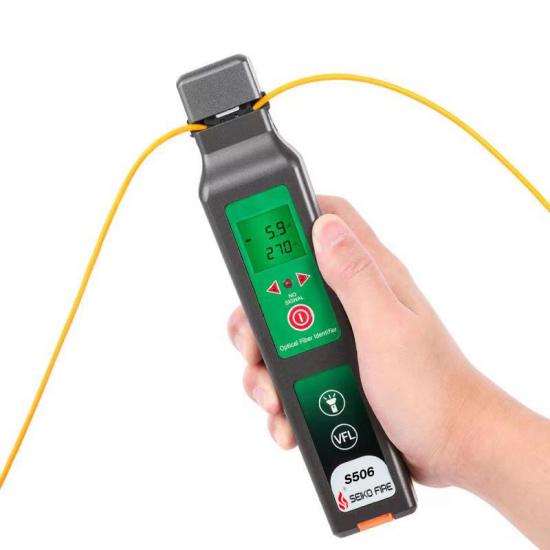

Universal back clip design,suitable for 0.25/0.9/2.0/3.0 fiber

* LED backlight display, suitable for various environment and no auxiliary lighting required

* Testing sensitivity -40dBm to 10 dBm

* Strong and stable light source, strong penetrating power

* Be equipped with LED light,more convenient to work in the dark

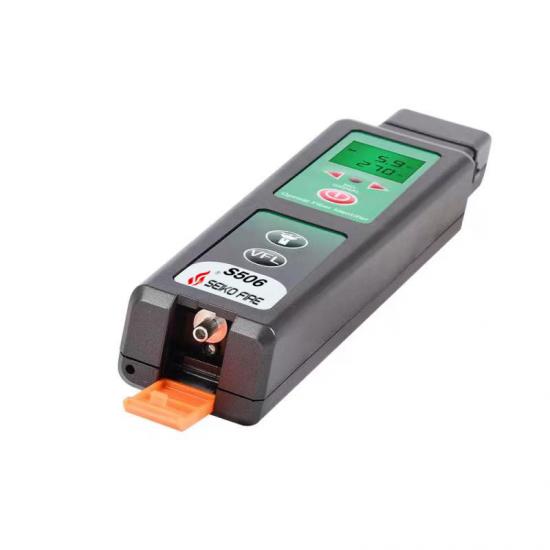

* Built-in VFL, 2.5mm universal connectors,strong stability,testing distance is up to 10KM.


Specifications

Model

S506

Wavelength recognition range

800nm to 1700nm

Signal Recognition Type

CW,270 Hz ± 5%,1 kHz ± 5%,2 kHz ± 5%

Detector Type

φ1mm InGaAs 2 pcs

Adapted fiber type

Universal Holder for φ0.25(Bare Fiber),φ0.9,φ2.0,φ3.0 Cable

Signal Direction

Left & Right LED

Optical Power Reading Range

-40 dBm to 10 dBm

Signal Frequency Range

270Hz,1kHz,2kHz

Power Type

AA*2

Operating Temperature Range

-10 to 60

Storage Temperature Range

-25 to 70

Dimension

219mm*45mm*28mm

Weight

235g

VFL function

Power range

10mW

Testing distance

8-10km

Wavelength range

650nm

Laser Type

LD

Led flashlight

Yes
