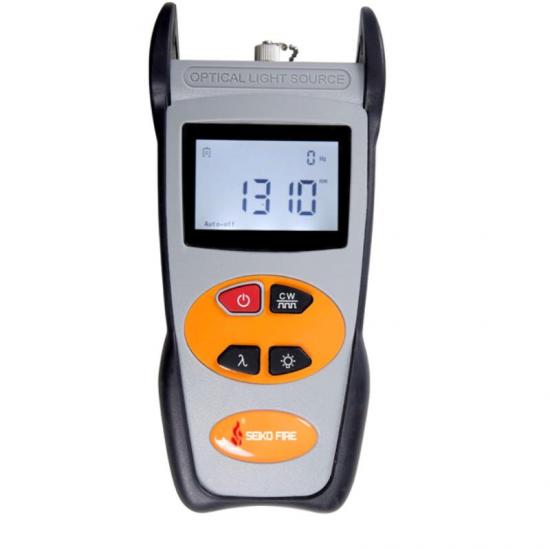

New Portable Light Source S102

High sensitivity large operation scope.

Battery supply, convenience for outside work.

  • Item NO.:

    S102
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

Optical light source is one of the latest self developed test instrument. It can provide 2 to 5 wavelength output according to the specific requirements including the 650nm red source, 1310/1550nm wavelength for the single mode fiber and 850/1300nm wavelength for the multimode fiber or other wavelengths according to customer needs. Together with optical power meter, it acts as a perfect solution for the fiber optic network work.


Features


  • Tone generation, 270HZ, 1KHZ, 2KHZ;
  • Output power value is shown on LCD display;
  • Intelligent backlight control (light intensity can be adjusted properly
  • According to ambient light, which greatly reduced power consumption);
  • AA alkaline for power supply;
  • Low battery indication.



Specifications

Operating wavelength(nm)

1310/1550 (others specify on requests; Max wavelength is 5)

Applicable fiber

SM, MM

Laser type

FP-LD (others specify on requests)

Maximum Output Power(dBm)

-7(can be adjustable, others specify)

Stability (dB, 15min, 20)

±0.1

Stability (dB, 30min, 20)

±0.05

Modulation (Hz)

CW, 270, 1K, 2K

Fiber Port

FC/PC or FC, SC, ST interchangeable

Alkaline Battery

3XAA, 1.5V

Battery Operating time(h)

45

Operation Temperature ()

-10+60

Storage Temperature ()

-25+70

Outline sizemm

200 X90 X50

Weight(g)

285
