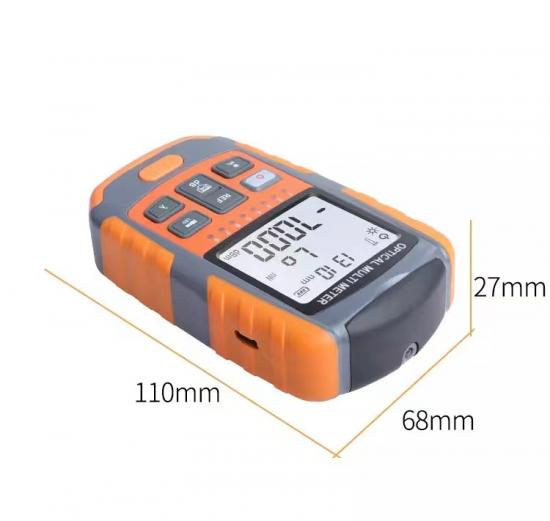

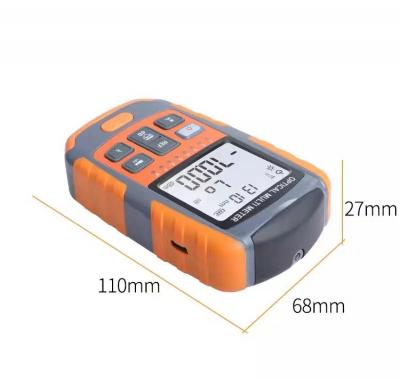

Mini Optical Multimeter S406

All in one power meter and VFL function. Most compact in Size, ideal for field operation. With wavelength memory function, boot will display the last shutdown wavelength set.

LED screen SC FC ST optic power meter with  VFL function This tester allows to perform both optical power/loss measurements and Fiber faults tracing visually.

Product Features: 1、OLED display screen, visible under strong light 2、500mAh rechargeable lithium battery 3、Type C charging port 4、Users can calibrate and correct themselves 5、With 1000 data storage spaces 6、With upper computer software, data can be exported 7、User set memory (wavelength, unit memory) 8、Display both mW and dBm values simultaneously

Special wavelength OTDRs are reliable instruments used to measure the characteristics of optical fibers with large core diameters.This series of products are compact, light transmission quality and achieves the measurement results after the results processing,archiving, printing. The person who installs and maintains the fiber optic cable by looking at the "incident point"of fiber optic test graph to point out these irregularities in the fiber, locate the positions, measure the attenuation and the uniformity of damage and attenuation.

Precision fiber optic stripping tool capable. Lightweight and compact

S400 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~500um) with  S400 LDF Specialty Fiber Fusion Splicer. Specifications Model S400LDF Applicable fiber SM(Single mode); MM(Multi mode); DS; NDZS Dimension Weight 2.4KG (including battery) Return loss >60dB Electrode life Typical 3000 times discharge Fiber diameter Cladding diameter:125~500μm Heat-shrinkable tube 60mm、40mm and a series of miniature tube Data storage 10000 groups data records and 100 group images Typical heating time 20seconds (60mm heating tube) Tension test Typical 2N Typical splice time 8-10 seconds Typical splice loss 0.02dB(SM); 0.01dB(MM); 0.04(DS); 0.04(NZDS) Cutting length 8~16mm(Coating diameter<250 μm );16mm (Coating diameter 250~1000 μm) Fiber magnification X or Y single fiber image:300X, X and Y double image 150X Operating condition Temperature:-10C--+50°C; Humidity:<95%(Noncondensing); Altitude:0-5000m, Wind: max, 15m/s Power supply AC adapter,inputAC100-240V(50/60HZ)，output: DC13.5V/4.5A； Battery capacity：5200mAh Li-battery,11.1V

Latest designed fiber fusion splicer, compact & light weight. 8s for splicing, 18s for tube-heating. Three-in-one fiber fixture, suitable for all types of optic fibers.

Designed for PON network construction and maintenance. It can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network.
