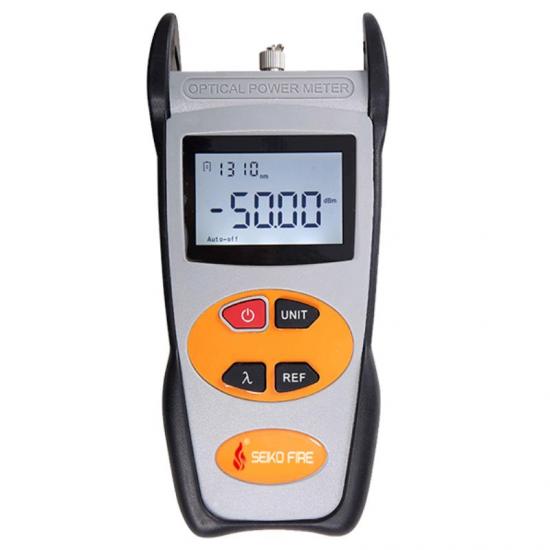

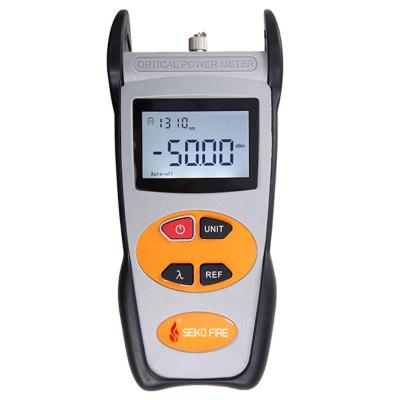

Smart FTTX Optic Power Meter S305

Pocketsize, Lightweight and Easy-to-use.

Apply to maintenance in Telecom & CATV, Fiber Optic Lab Testing etec.

  • Item NO.:

    S305
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

This optical power meter series is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It has features of ingenious appearance, wide range of power measurement, high accuracy with high performance-to-price ratio.


Features

  • Comfortable LCD display and optional backlight LCD display supports night operation.
  • Power measurements in dBm or mw and insertion loss in dB.
  • Reference power level storage (Ref Setting)
  • Low battery consumption, more than 240 hours continual operation time with three 1.5V alkaline batteries.
  • 10 minutes Auto-off function can be activated or deactivated.


Applications

  • Maintenance in Telecom
  • Maintenance in CATV
  • Fiber Optic Lab Testing
  • Other Fiber Optic Measurements


Specifications

Wavelength(nm)

800~1700nm

Detector

InGaAs

Measurement  Range (dBm)

-70~+3

-50~+26

Uncertainty

±5%

Calibrated Wavelength(nm)

850,1300,1310,1490,1550,1625

Resolution(dB)

0.01

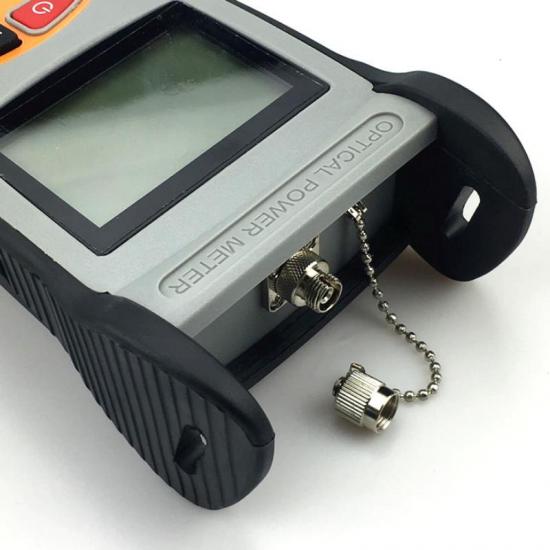

Optical Connector

FC(interchangeable SC,ST) / as well as 2.5mm universal

Power Supply

Alkaline Battery(3 AA 1.5V batteries)

Battery Operating Time

240 h with 1.5V Battery(3)

Operating Temperature(℃)

-10 ~ +60

Storage Temperature(℃)

-25 ~ +70

Relative Humidity

0 to 95% (non-condensing)

Dimension(mm)

200 X90 X50

Weight(g)

285


Standard Accessories

NO. ITEM
1 Power meter
2 Manual
3 Protective Holster
4 1.5V AA battery *3 pcs
5 Cotton swabs
