in 2 Working DaysIntroduction

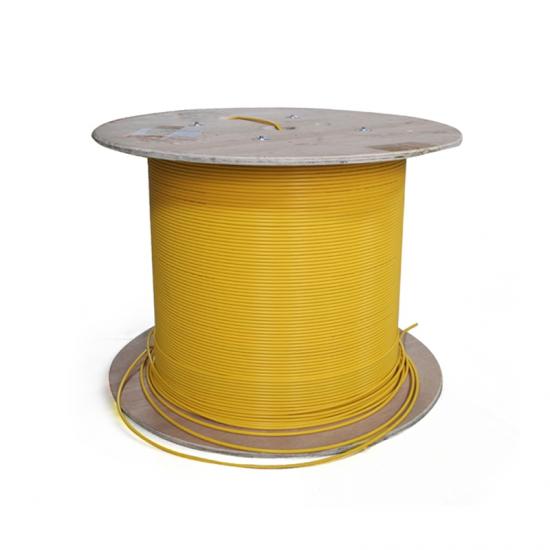

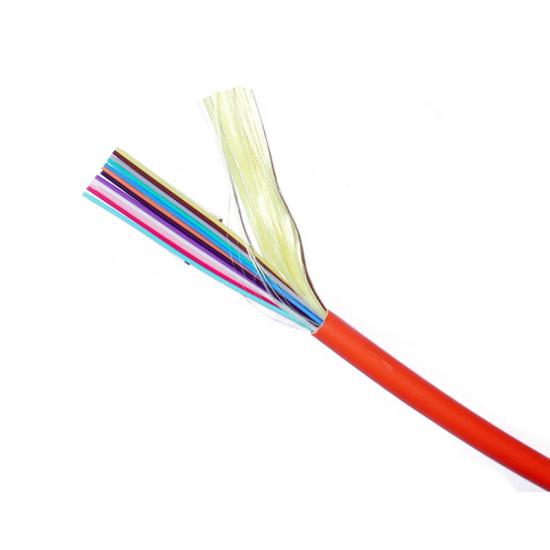

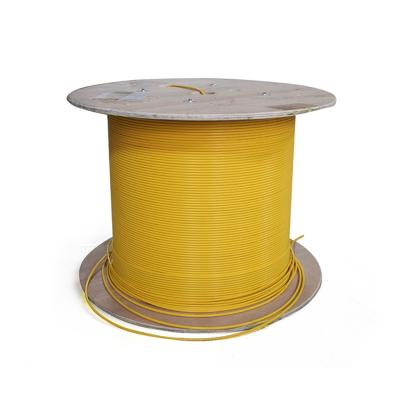

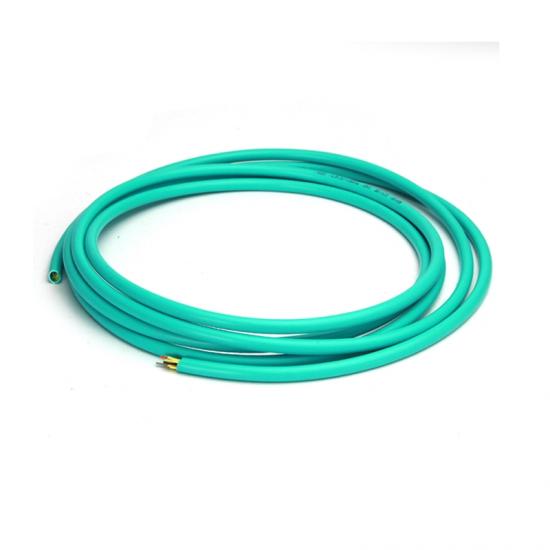

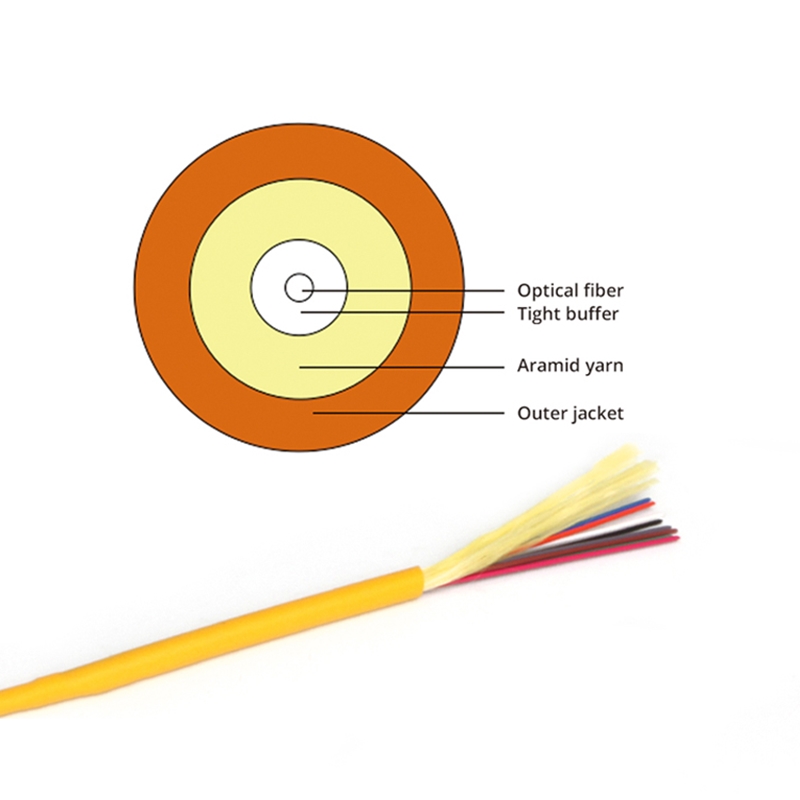

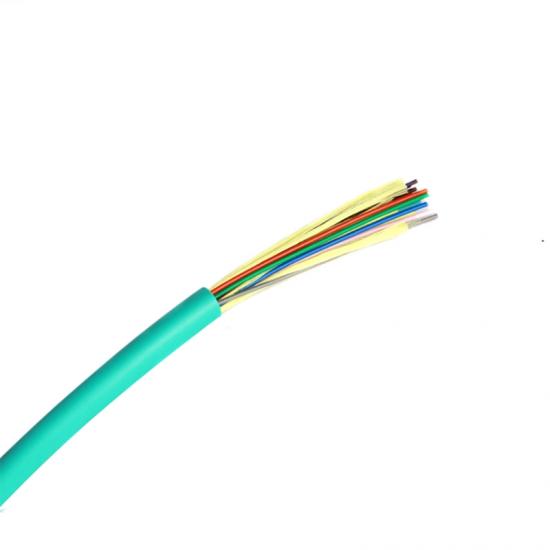

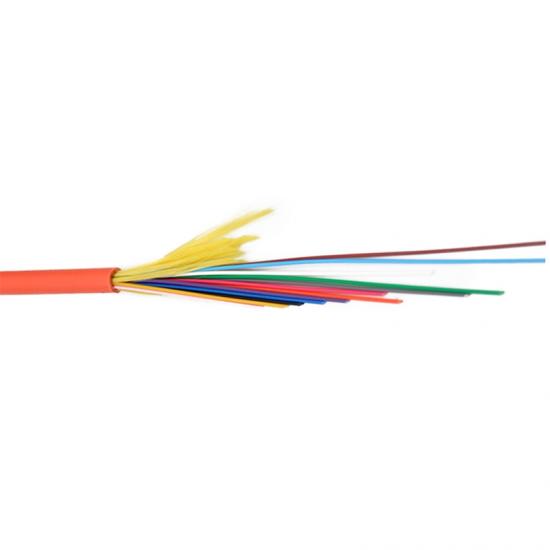

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH) jacket.
Features
The
external diameter is small, and it has good bending performance.
High count aramid fiber reinforces optical fiber cable strength, used in fiber
to the tabletop and the application of the vertical backbone of the building
data;
Multi-mode 62.5/125, multi-mode 50/125, single mode and many other
specifications can be provided.
Adopt tight sleeve fiber, and have strong mechanical protection.
The outer sheath uses flame-retardant PVC or LSZH materials.
Excellent compression and bending, and better avoid the external environment
infringement;
Optical fiber cable performance meets the requirements of light transmission, mechanical
properties and combustion characteristics stipulated by the industry.
Specifications
|
Core |
4 /6 /8 /12 cores |
|
|||||||||
|
Application |
1.For
indoor wiring |
|
|||||||||
|
Number of cores |
size (mm) |
weight (kg/km) |
Allowable tensile force (N) |
Allowable crushing force (N/100mm) |
minimum bending radius(mm) |
Applicable temperature range (℃) |
|||||
|
Long term |
Short term |
Long term |
Short term |
dynamic |
Static |
||||||
|
4 |
2.5x2.9 |
8 |
80 |
200 |
200 |
500 |
20H |
10H |
-20~+60 |
||
|
6 |
2.5x3.5 |
10 |
80 |
200 |
200 |
500 |
|||||
|
8 |
2.5x4.1 |
13 |
80 |
200 |
200 |
500 |
|||||
|
10 |
2.5x5.2 |
16 |
80 |
200 |
200 |
500 |
|||||
