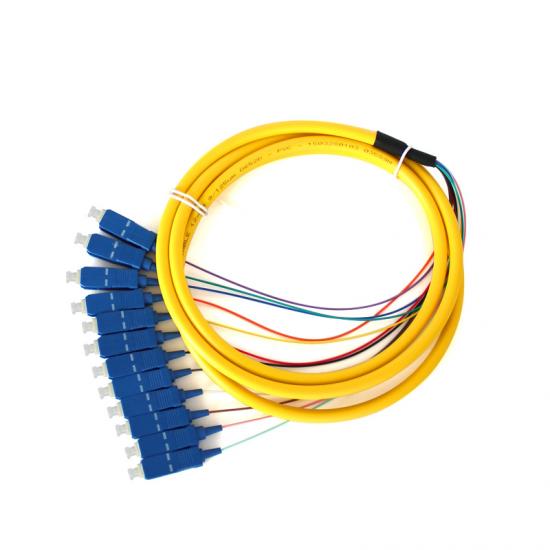

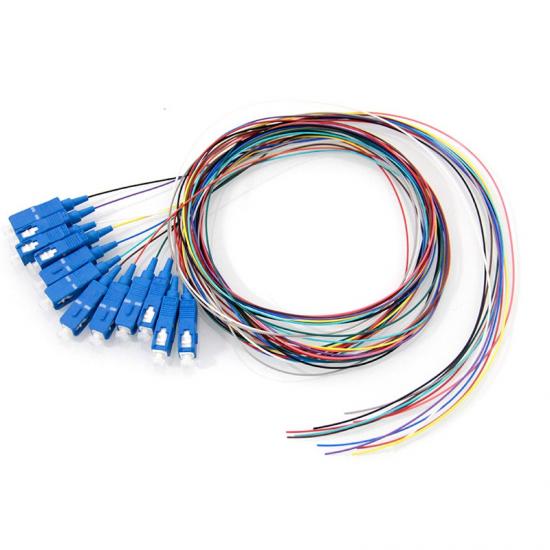

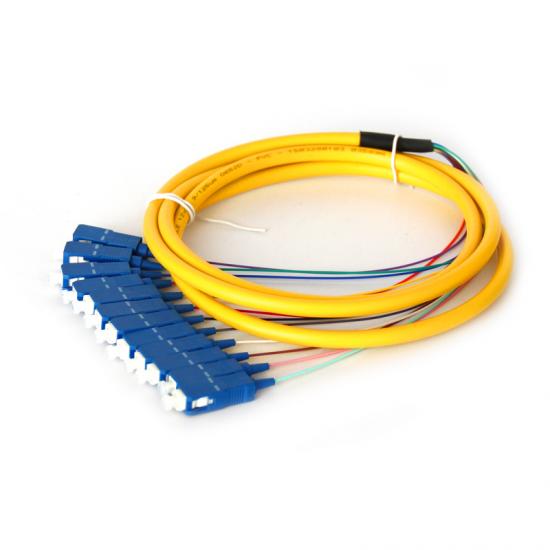

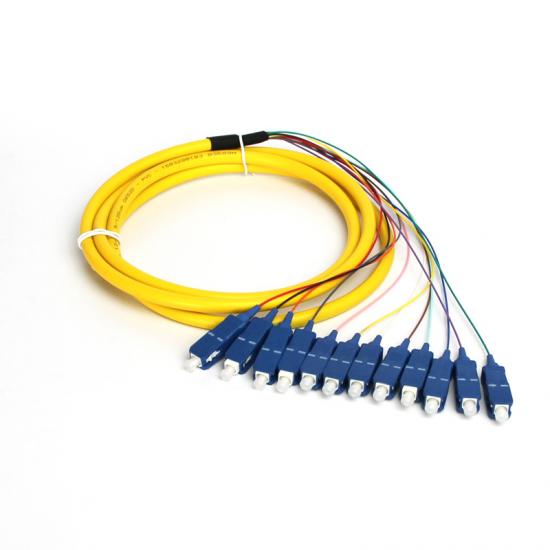

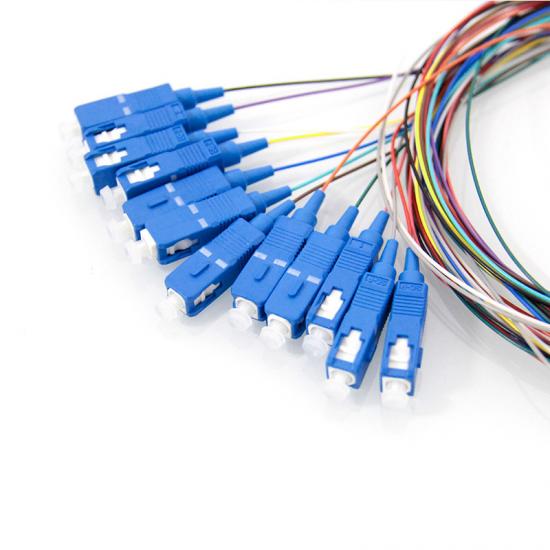

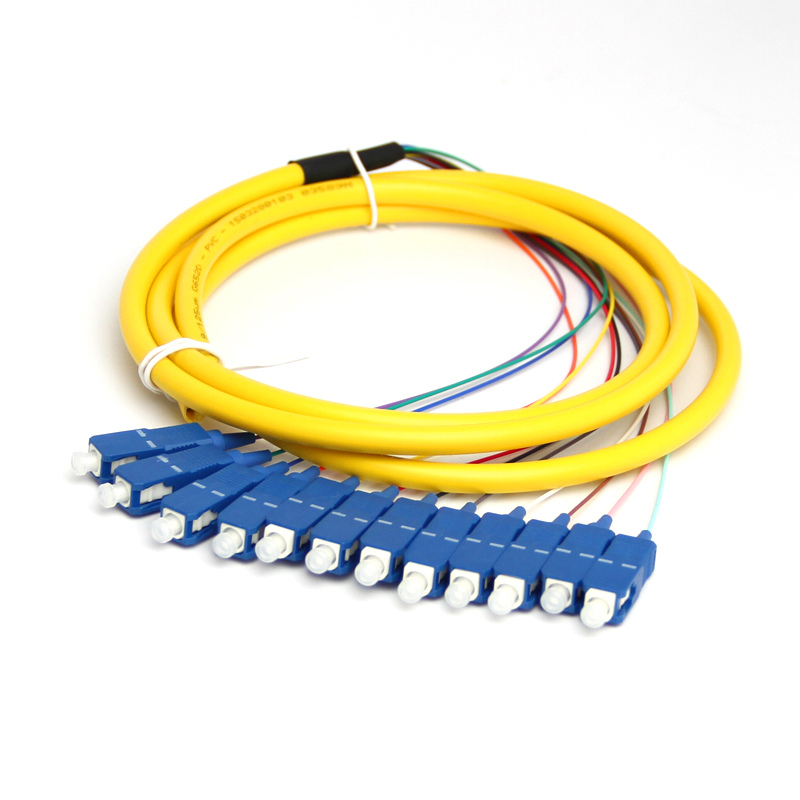

Stable Waterproof FTTH Fiber Optic Cabling Pigtail SC/UPC

High return loss, Low insertion loss.

High reliability and stability.

  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.


Features


  • Compliant with the standard of IEC
  • High Return Loss
  • Low Insertion Loss
  • Good reliability and stability
  • Polishing type: PC, UPC, and APC
  • Various interfaces: SC/FC/SC/ST
  • Core of cable: 12


 Applications


  •  Telecommunication Network
  •  Testing Equipment
  •  Local Ares Network
  •  CATV


Specifications

Parameter:

Single mode

Multi mode(optional)

Insertion Loss

≤0.3dB

≤0.20dB

Return Loss

≥45 dB (PC)

≥50 dB (UPC)

≥60 dB (APC)

≥35 dB (PC)

≥45 dB (UPC)

Wavelength

1310nm,1550nm

850nm,1310nm

Repeat-ability

≤0.1

Durability

≤0.2 dB typical change, 1000 matings

Interchangeability

≤0.2dB

Cord diameter

3.0mm

Connector Available

SC,FC,ST,LC,MU,MTRJ

Fiber core available

4,6,8,12,24 fiber…
