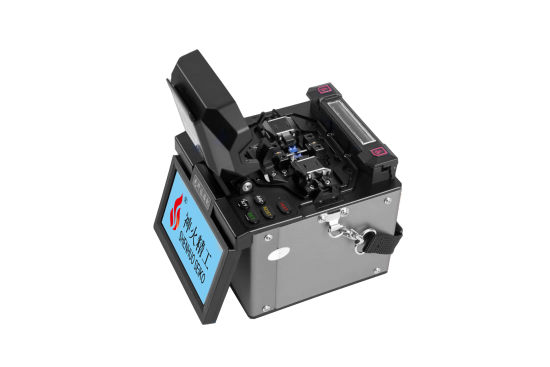

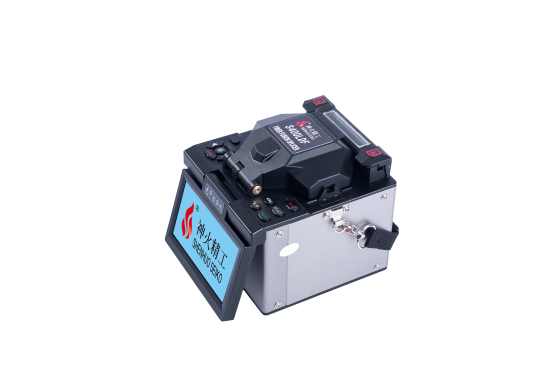

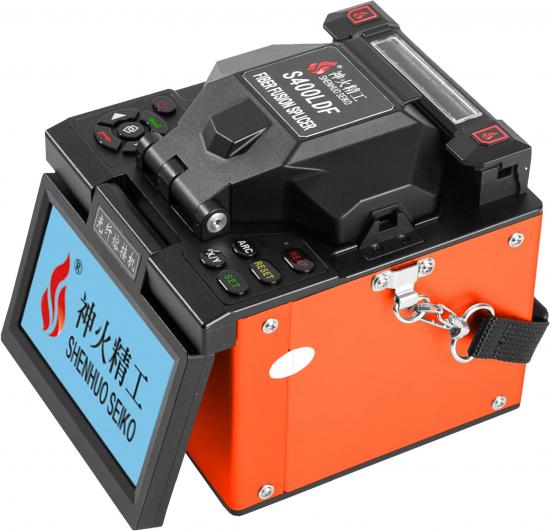

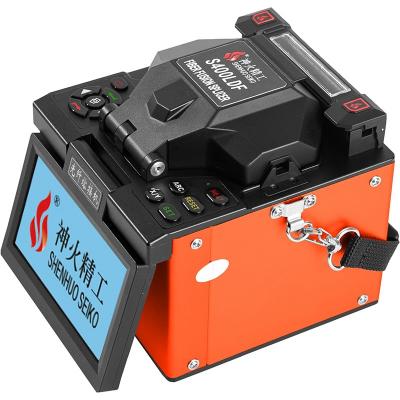

S400 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~500um) with S400 LDF Specialty Fiber Fusion Splicer.
Item NO.:
S400 LDFOrder(MOQ):
1Payment:
T/T, Paypal, Credit Card, western Union, etc.Product Origin:
ChinaColor:
red/grayShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 2 Working Days
Features:
Applicable to cladding diameter 400μm fiber
Real-time ARC calibration automatically
High resolution 5 inch touch screen
6 motors; Z axis focusing, core to core
PAS Accurate alignment, world standard fusion loss
Support 10000/200 groups fusion records/fusion images
6800mAh Plug-gable Li-battery, support separate charging
Two 12V power ports, battery or external power supply directly
2 USB ports: software upgrading, records exporting/power supply for LED light
Specifications
|
Model |
S400LDF |
|
Alignment method |
Core to Core |
|
Applicable fiber |
SM(G.652),MM(G.651), DS(G.653), NZDS(G.655) |
|
Cladding diameter |
400µm(Can Customized) |
|
Cutting length |
8~16mm（coating diameter<250µm) 16mm(coating diameter 250µm~1000µm) |
|
Typical splice loss |
SM:0.02dB,MM:0.01dB, DS:0.04dB, NZDS: 0.04dB |
|
Return loss |
> 60dB |
|
Operation mode |
Manual/ Semi-automatic/Automatic |
|
Typical splice time |
≤9 seconds |
|
Typical heating time |
≤30 seconds（60mm heating tube） |
|
Tension test |
Typical 2N |
|
Fiber magnification |
X or Y single fiber image 220X, X and Y double image 110X |
|
Viewing display |
Dual high sensitivity camera, 5 inch touch screen. |
|
Data storage |
10000 groups data records and 200 group images |
|
Battery capacity |
6800mAh Li-battery, 300 cycles splicing and heating |
|
Power supply |
AC adaptor, input: AC100-240V(50/60HZ), output: DC13.5V/4.5A |
|
Electrode life |
> 3000 times discharge |
|
Terminals |
2 USB ports: software upgrading, records exporting/power supply for LED light |
|
Operating condition |
Altitude:0-5000m,Humidity:0-95%, Temperature: -10℃ -- +50℃; Wind: max. 15m/s |
|
Dimension/ Weight |
130mm(L)×154mm(W)×132mm(H) 2.0kg (including battery) |
Standard Accessories
|
Name |
Model |
Quantity |
|
Machine |
S400LDF |
1 |
|
Fiber stripper |
SH-06 |
1 |
|
Belt |
SH-04 |
1 |
|
Charger |
SH-01 |
1 |
|
Spare electrodes |
SH-02 |
1 |
|
Cooling tray |
SH-03 |
1 |
|
Carrying case |
SH-05 |
1 |
|
Specification |
|
1 |
Optional Accessories
|
Name |
Model |
|
Mobile power supply |
SH-S80 |
|
Large Diameter Fiber cleaver |
SH-D106 |
|
GPS function |
|
|
LED Light |
|
