S100TOF Small Diameter Fiber Fusion Splicer

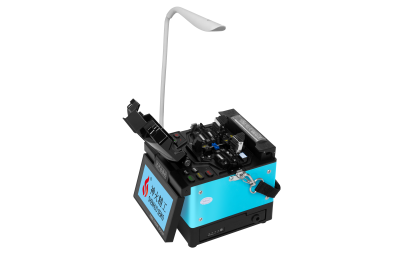

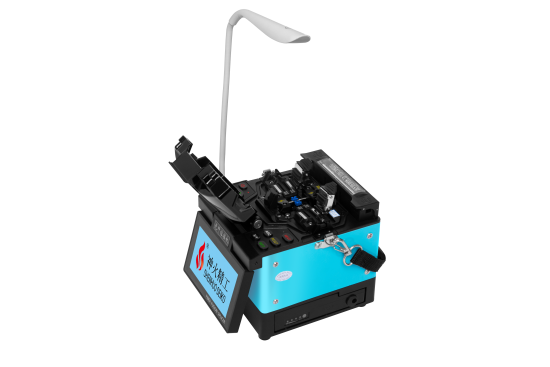

S400 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~500um) with  S400 LDF Specialty Fiber Fusion Splicer. Specifications Model S400LDF Applicable fiber SM(Single mode); MM(Multi mode); DS; NDZS Dimension Weight 2.4KG (including battery) Return loss >60dB Electrode life Typical 3000 times discharge Fiber diameter Cladding diameter:125~500μm Heat-shrinkable tube 60mm、40mm and a series of miniature tube Data storage 10000 groups data records and 100 group images Typical heating time 20seconds (60mm heating tube) Tension test Typical 2N Typical splice time 8-10 seconds Typical splice loss 0.02dB(SM); 0.01dB(MM); 0.04(DS); 0.04(NZDS) Cutting length 8~16mm(Coating diameter

1. Six motor core to core, core adjustment, center alignment 2. Artificial calibration and Real-time ARC automatic calibration are optional. 3. The same optical fiber and different opticalfibers are connected in the center. 4.Electrical discharge ARC makes realtime compensationaccording to the pressure, environment and temperature parameter. 5.Two cameras can observe X axes and Y axes at the same time. 6. High resolution 5 inch color LED touch screen, multi languages are customizable. 7.2 USB ports: one for data transmission,one for power supply of LED light

Features: 1.Artificial calibration and Real-time ARC automatic calibration are optional. 2.High-power dual LED light design for enhanced visibility during nightime operations. 3.Electrical discharge ARC makes realtime compensation according to the pressure ,environment and temperature parameter. 4.Two cameras can observe X axes and Y axes at the same time. 5.High resolution 5 inch color LED touch screen, multi languages are customizable. 6.2 USB ports: one for data transmission,one for power supply of LED light 7.Two 12V power ports, battery or external power supply directly

Compact and rugged packaging. Case can house up to 500-1,000 meters of fiber. Standard boxes along with custom configurations for OTDR applications.

High sensitivity large operation scope. Battery supply, convenience for outside work.

Long battery life Portable and rugged, easy to use 2.5mm universal connector, for 1.25mm connectors,FC (Male)-LC (Female) convertor can be provided on requests.

Easy to use and carry Beeming prompts measurement status Multiple wavelength correction coefficients Automatic storage of measurement data Supports viewing historical data Supports virtual serial port communication Configure client software to support data

High Speed Splicing and Heating Touch Screen and Keypad control Applicable to cladding diameter 200-250μm fiber
