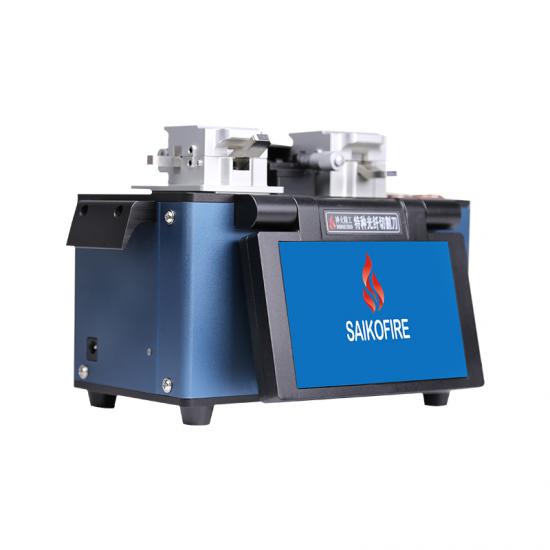

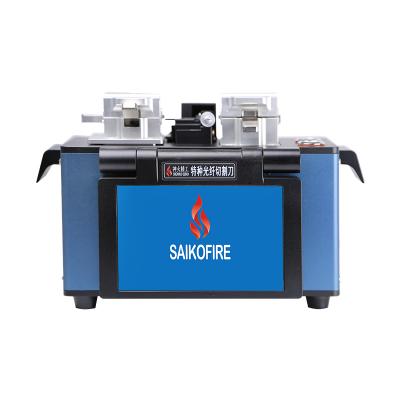

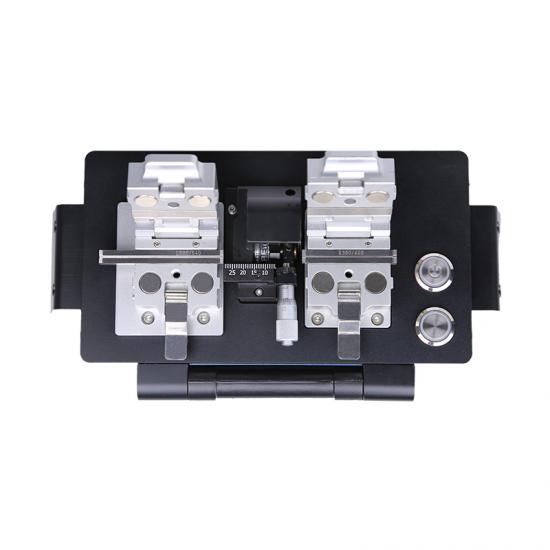

SH-D103 Large Diameter Optical Fiber Cleaver

SH-D104 large core fiber cutting cleaver can be used to cut large core fiber and fiber buncher.Users can easily cut different types of fiber and buncher by simply setting the tension of the fiber and advancing the head of blade before cutting.The machine not only has the cutting stability required for production, but also has the characteristics of flexible debugging required for research and development. Advanced features : Extensive parameter adjustment can adjust the effect from many aspects, can adjust methods of cutting. It can cut photon, crystal fiber, doped fiber, glass tube, capillary and other special kinds of fiber. Advanced features : Extensive parameter adjustment can adjust the effect from many aspects, can adjust methods of cutting.  It can cut photon, crystal fiber, doped fiber, glass tube, capillary and other special kinds of fiber.

The SH-D104B large-core-diameter fiber cutting tool is primarily designed for cutting large-core-diameter fibers.Optical fibers and fiber combiners, etc. Users can configure the fiber pull with simple settings.With the cutting force, the cutting tool head can effortlessly slice through various fiber types.and the collimator. The machine not only possesses the cutting stability required for production but also has the grinding capability.It is flexible and debugable. 该机器不仅具有生产所需的切割稳定性，还具有研磨能力。 它灵活且可调试。

LED screen SC FC ST optic power meter with  VFL function This tester allows to perform both optical power/loss measurements and Fiber faults tracing visually.

S400 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~500um) with  S400 LDF Specialty Fiber Fusion Splicer. Specifications Model S400LDF Applicable fiber SM(Single mode); MM(Multi mode); DS; NDZS Dimension Weight 2.4KG (including battery) Return loss >60dB Electrode life Typical 3000 times discharge Fiber diameter Cladding diameter:125~500μm Heat-shrinkable tube 60mm、40mm and a series of miniature tube Data storage 10000 groups data records and 100 group images Typical heating time 20seconds (60mm heating tube) Tension test Typical 2N Typical splice time 8-10 seconds Typical splice loss 0.02dB(SM); 0.01dB(MM); 0.04(DS); 0.04(NZDS) Cutting length 8~16mm(Coating diameter

1. lt is used to recoat the spliced fiber or bare fiber and fiber repair, to protect the splicing area and recover fiber elasticity. 2. The high-refractive glue is cured in 1s and the low-refractive glue is cured in 7s 3. It is suitable for the coating needs of various single-mode, multimode, various polarization maintaining fibers, and various special structure optical fibers (including: elliptical, polarized, multi-core). 适用于各种单模、多模、各种保偏光纤、各种特殊结构光纤（包括：椭圆、偏振、多芯）的镀膜需求。

Equipped with LED lights for easy Interface: SC, FC, ST, available FC-LC converter Mini compact, stable light source, LED lighting, automatic shutdown

Material and structure are uniform, good resistance to vibration fatigue. Short circuit current has small effect on the optical fiber transmission properties,Good anti-lightning performance.

Rugged and waterproof design. Pocket size and light weight, easy to use.
