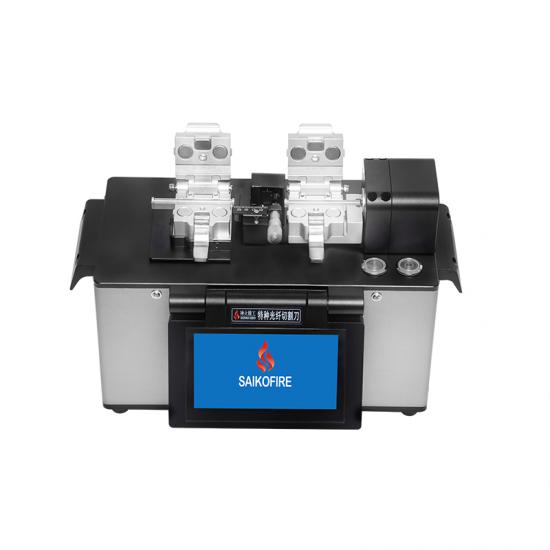

The SH-D104B large-core-diameter fiber cutting tool is primarily designed for cutting large-core-diameter fibers.Optical fibers and fiber combiners, etc. Users can configure the fiber pull with simple settings.With the cutting force, the cutting tool head can effortlessly slice through various fiber types.and the collimator. The machine not only possesses the cutting stability required for production but also has the grinding capability.It is flexible and debugable.
The SH-D104B large-core-diameter fiber cutting tool is primarily designed for cutting large-core-diameter fibers.Optical fibers and fiber combiners, etc. Users can configure the fiber pull with simple settings.With the cutting force, the cutting tool head can effortlessly slice through various fiber types.and the collimator. The machine not only possesses the cutting stability required for production but also has the grinding capability.It is flexible and debugable.
Main Features
1. High precision, high speed, high stability, and high quality.
2. 4.3-inch touch screen with LED color display, supporting multiple language modes.
3. Cutting range: The maximum diameter of the fiber cladding is 1500um, and the minimum is 80um. Parameters can be customized.
4. Advanced features: The extensive parameter adjustment allows for multi-faceted optimization of cutting performance, with adjustable cutting modes.
5.It can cut the photon, crystal fiber, doped fiber, glass tube, capillary tube and other special kind of fiber and can cut at an angle.
Model
SH-D104B
Cut type
Flat/oblique
Remaining cladding length
2-50mm
Display screen
4.3 inch touch control
Cladding cutting size
80-1500μm
Coating dimensions
80-2500μm
Type of fiber
Sm/mm/gdf/ydf/pcf/combinator/fiber bundle/glass tube
Cutting method
Tightening and rubbing
Weight range
Max:5000gf
Pulling accuracy
3gf
Stepping head
1.3μm
Tool tip material
Single crystal diamond

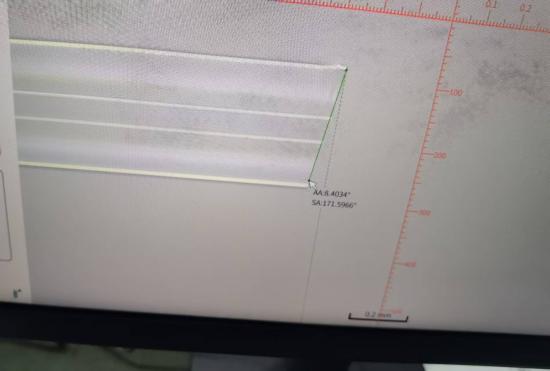

Cut angle
Flat cut:≤0.3°for passive fibers,≤0.5°for active fibers(slant cut:Within±1°)
Angle of rotation
0-80°
Fiber optic clamping method
Magnetic force
Power supply voltage
Built-in battery:12v/dc,5a
Work environment
Temperature:0-40℃/humidity:5-95%rh
Dimensions(l×w×h)
228x135x167mm
Weight
3.86kg
