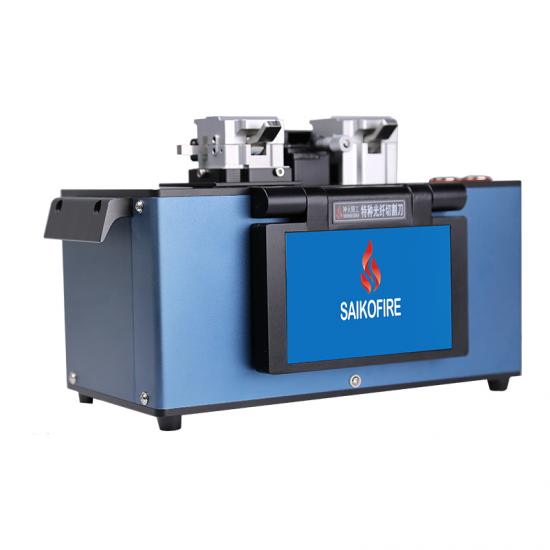

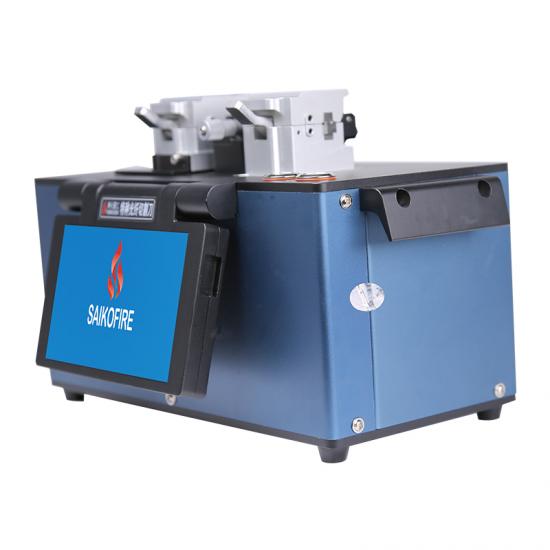

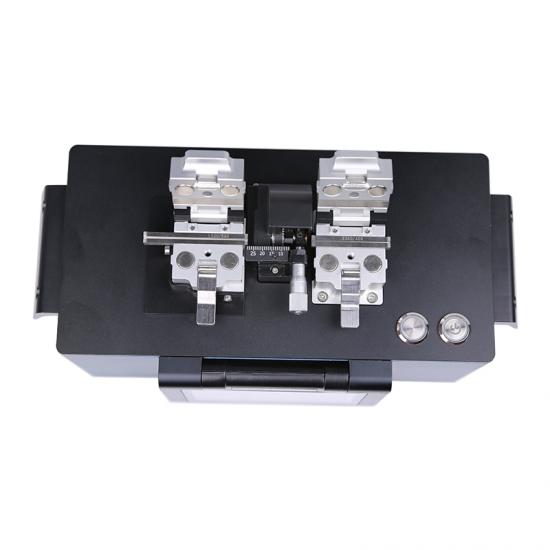

SH-D104 large core fiber cutting cleaver can be used to cut large
core fiber and fiber buncher.Users can easily cut different types
of fiber and buncher by simply setting the tension of the fiber and
advancing the head of blade before cutting.The machine not only
has the cutting stability required for production, but also has the
characteristics of flexible debugging required for research and
development. Advanced features : Extensive parameter adjustment can
adjust the effect from many aspects, can adjust methods of
cutting. It can cut photon, crystal fiber, doped fiber, glass
tube, capillary and other special kinds of fiber.
Advanced features : Extensive parameter adjustment can adjust the effect from many aspects, can adjust methods of cutting. It can cut photon, crystal fiber, doped fiber, glass tube, capillary and other special kinds of fiber.
|
Specifications |
|||
|
Number of cores |
Single |
Incision Damage Depth |
≤2μm (cladding diameter 400μm) |
|
Weight |
5KG |
Applicable Cladding diameter |
80~1250μm |
|
Blade life |
20,000 + (cladding 400 μm)
|
Cutting Angle |
≤ 0.5°(Cladding 400μm) |
|
Cutting length |
4mm-40mm |
Operating condition |
Temperature:0-45°C; Humidity:0~95%(no condensation) Altitude: 0-3000m |
|
Power Supply |
Input: 110-240V~50/60Hz, 1.4A Output:24V 2.5A |
Storage environment |
Temperature:-40~80°C , Humidity: 0~95% RH(no condensation) |
The SH-D103 is a highly integrated, easy-to use design and highly advanced small diameter fiber cutting tool that cuts 40-600 μm small diameter clad fiber (customizable parameters). The SH-D103 fiber cutting cleaver is designed for production line use, easy to use and convenient, cutting speed fast and high efficiency, these advantages are essential to improve the production line. The SH-D103 fiber cutter is also ideal product in research and development environments.
S400 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~500um) with S400 LDF Specialty Fiber Fusion Splicer. Specifications Model S400LDF Applicable fiber SM(Single mode); MM(Multi mode); DS; NDZS Dimension Weight 2.4KG (including battery) Return loss >60dB Electrode life Typical 3000 times discharge Fiber diameter Cladding diameter:125~500μm Heat-shrinkable tube 60mm、40mm and a series of miniature tube Data storage 10000 groups data records and 100 group images Typical heating time 20seconds (60mm heating tube) Tension test Typical 2N Typical splice time 8-10 seconds Typical splice loss 0.02dB(SM); 0.01dB(MM); 0.04(DS); 0.04(NZDS) Cutting length 8~16mm(Coating diameter
High precision in cutting High precision in positioning Good wear resistance
The main function of this productis to remove the coating layer of optical fiber. The removal speed is fast and efficient, and the coating layer is not damaged after removal.
Applicable for up to 12-fiber cleaving. Automatic cleaving blade rotation via wireless communication. Original CT50 optical fiber cleaver for ribbon fusion splicer.
High Speed Splicing and Heating Touch Screen and Keypad control Applicable to cladding diameter 200-250μm fiber
1.Easy to use,automatically longitudinal strip,high quality striping,stable and efficient 2.The blade is durable and easy to replace 3.Adopt high-precision linear guide and motor directly drive striping way to ensureno damage to the fiber google is broken
Touch screen TFT color LCD. Large capacity Li battery guarantees more than 8 hours’ working without external. It's the necessary tools for daily maintenance, troubleshooting and equipment installation and maintenance.
