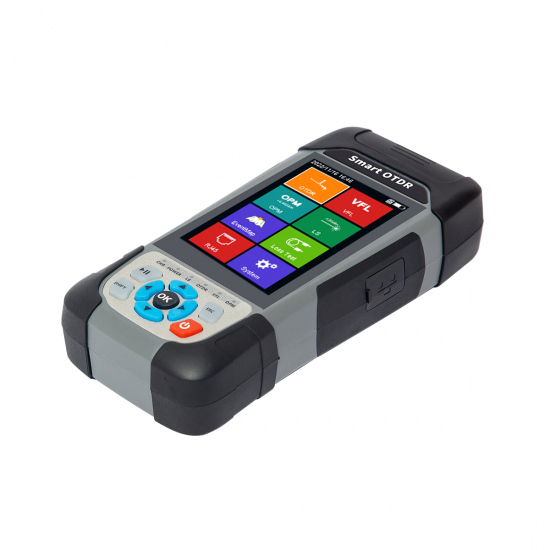

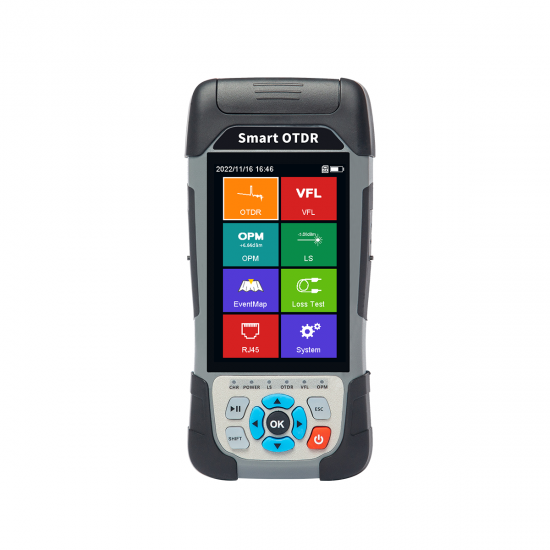

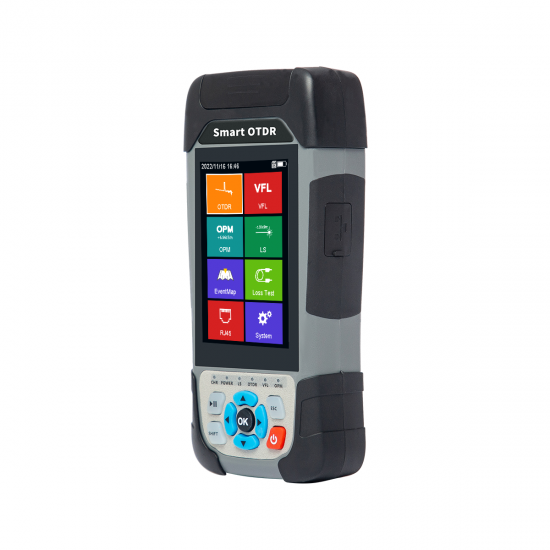

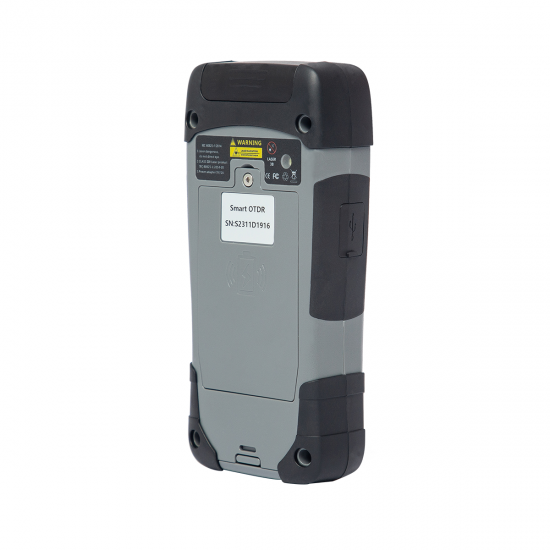

Handheld Multifunction Smart OTDR S720

Smart Series Optical Time Domain Reflectometer adopts a 3.5-inch color capacitive touch screen, Which is simple to operate. It integrates eight major functions such as OTDR, Event map, Stable light source, optical power meter, red light source, Network Line Sequence Test, line finding and lighting. Simple parameter setting and intelligent measurement make the operation more simple and efficient. The model is small and light, easy to carry. The wireless charging function is supported, and the large capacity battery ensures 10 hours of ultra long time measurement and 20 hours of ultra long standby, providing guarantee for field testing.

Item NO.:
S720
Order(MOQ):
1
Payment:
T/T, Paypal, Credit Card, Western Union, etc.
Product Origin:
China
Color:
Orange
Shipping Port:
Nanjing
Lead Time：
in 3 days

Inquire Now

Product Detail

Smart OTDR is mainly used to measure the length, loss, average loss, return loss, connection quality Of various optical fibers and cables. It has automatic optical protection function to prevent damage to optical modules. With filter model, it can support online testing, and the maximum online optical power is -2dbm. It can be widely used in the fields of engineering construction, fault repair, optical fiber line maintenance, engineering acceptance, research and production of optical fiber and cable.

Features

3 .5“ FTF LCD, Capacitive TP.

Type-C USB and wireless charging

Large capacity battery, 20 hours.

Minimum measurement: 2.5m

Palm design, compact and lightweight.

Hidden interface , shock and fall resistant.

Multi-function integration: OTDR/LS/VFL/Network cable test/Flashlight

Specifications

Optical Time Domain Reflectometer
Module		S720A		S720B	S720C		S720D		S720E		S720F
Wavelength		1310/1550		1310	1550		1610		1625		1650
Dynamic range		24/22dB		24dB	22dB		22dB		22dB		22dB
Fiber type		G.652D
Event dead zone		2.5 m
Attenuation zone		8 m
Measuring range		100m/500m/1km/2km/5km/10km/20km/40km/60km/90km
Pulse width		5ns/10ns/20ns/50ns/100ns/200ns/500ns/1us/2us/5us/10us
Accuracy		±(1m+Sampling interval+0.005% X measuring range)
Linearity		±0.2dB/dB
Sample points		Maximum sampling points: 20000
Sampling resolution		25cm-8m
Loss resolution		0.001dB
Range resolution		0.001m
Refractive index		1.0000-2.0000
Reflection accuracy		±3dB
File format		Standard sor. file format
Safety level		Class 3B
Temperature Humidity		Ambient temperature: -10℃ - 50℃. Storage ambient temperature: -40℃ - +70℃ Humidity: 0~90%(non condensing)
Size/Weight		17cm x 12cm x 3cm. 340g
OPM			Laser source					Other module
Wavelength	850/1300/1310/1490 /1550/1625/1650nm		Wavelength			1310/1550		VFL		≥10mW
Range	A: -70 - +10dBm B: -50 - +26dBm		Laser type			FP-LD		RJ45		Line sequence Line ﬁnding
Frequency	270Hz/330Hz /1k Hz/2k Hz		Power			-5dB m±2dB		Battery		4000mAh 3.7V
Uncertainty	±5%		Uncertainty			±5%		Adapter		USB(Type C)
Connector	Universal head: FC/SC/ST		Connector			FC/SC/ST		Memory		Inside≥1000 , external: SD
