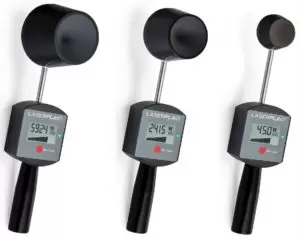

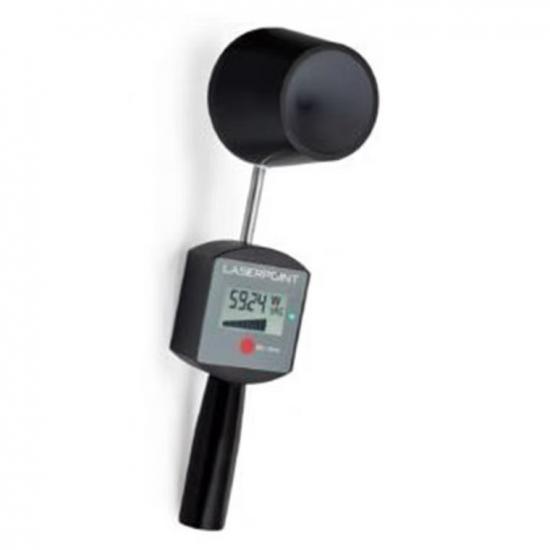

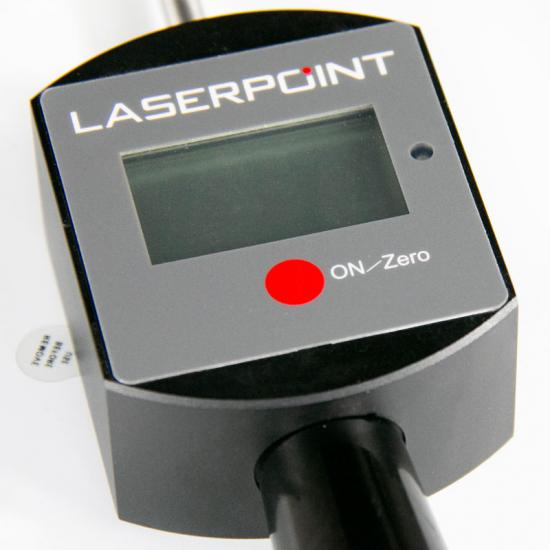

Fully automatic, high power probe series
3 models cover from 1.5W to 10kW
dual wavelength (CO2 and Yag) ,
±2% repeatability (±5% for 5 and 10KW models)
±4% accuracy
1W resolution on 10KW probe
Recalibration possible by User
Item NO.:
Cronos LP10Order(MOQ):
10|
Ordering code |
Cronos LP1.5
|
Cronos LP5.0
|
Cronos LP10
|
|
Power Mode |
|||
|
Max. Average Power |
1500 W |
5 kW |
10 kW |
|
Min. Measurable Power |
30 W |
100 W |
200 W |
|
Min. Meas. Power @3% accuracy |
150 W |
500 W |
1000 W |
|
Power Resolution |
1 W |
1 W |
1 W |
|
Time to measure and display |
8-15 sec (1) |
8-15 sec (1) |
8-15 sec (1) |
|
Power Calibration Uncertainty |
± 4% |
± 4% |
± 4% |
|
Repeatability |
± 2% |
± 5% |
± 5% |
|

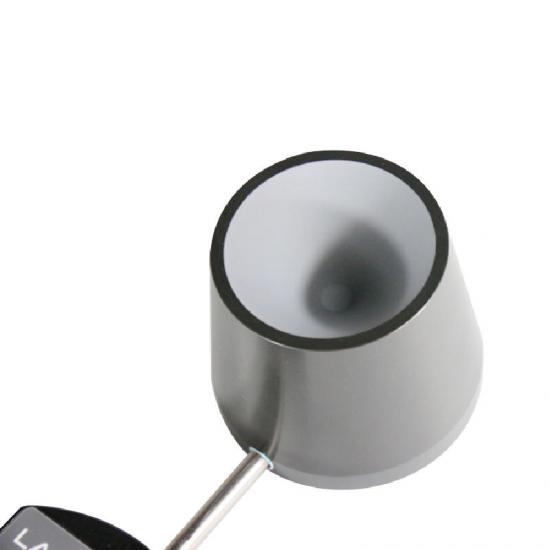

Absorber Specs |
|
|
|
|
Aperture |
40 mm |
55 mm |
65 mm |
|
Type |
HPB |
HPB |
HPB |
|
Absorber Spectral Range |
0.19 - 11 µm |
0.19 - 11 µm |
0.19 - 11 µm |
|
Calibration Spectral Range |
0.19 - 2.1 µm, 2.94µm, 9 - 11 µm |
0.19 - 2.1 µm, 2.94µm, 9 - 11 µm |
0.19 - 2.1 µm, 2.94µm, 9 - 11 µm |
|
Max Power Density (1) |
3.5 kW/cm² @1 kW |
2.5 kW/cm² @5kW |
2 kW/cm² @10kW |
|
Max Energy Density (1) |
5ms pulse width: 36 J/cm² |
5ms pulse width: 36 J/cm² |
5ms pulse width: 36 J/cm² |
|
General Characteristics |
|
|
|
|
Max Allowed Probe Temperature |
150 |
150 |
150 |
|
Power Supply |
3V (2 AA Batteries) |
3V (2 AA Batteries) |
3V (2 AA Batteries) |
|
Battery runtime |
200 hrs |
200 hrs |
200 hrs |
|
Cooling |
Convection |
Convection |
Convection |
|
Weight |
0.6 kg |
1.1 kg |
1.6 kg |
|
Dimension |
306 x 71 x 40 mm |
312 x 71 x 65 mm |
318 x 71 x 75 mm |
|
Cable length |
n.a. |
n.a. |
n.a. |
|
Notes |
|
|
|
|
(1). Damage thresholds also depend on power level. Please see damage graphs for more details. |
(1). From 8 seconds for max power measurements, up to 15 seconds for min power. |
1). From 8 seconds for max power measurements, up to 15 seconds for min power. |
(1). From 8 seconds for max power measurements, up to 15 seconds for min power. |
