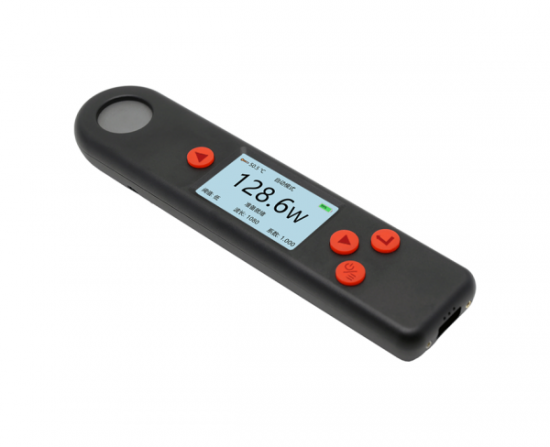

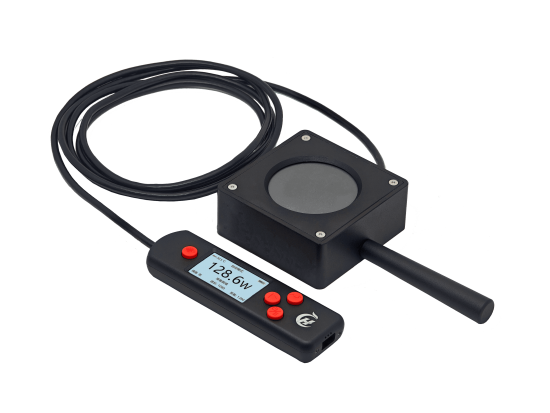

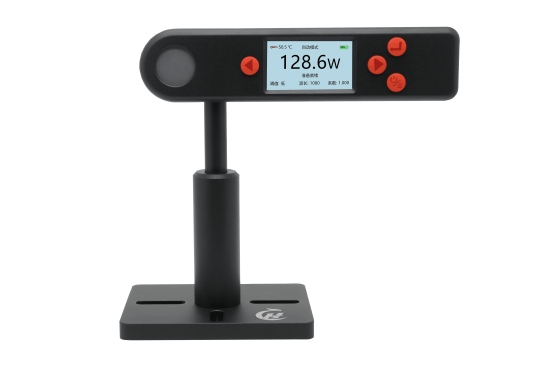

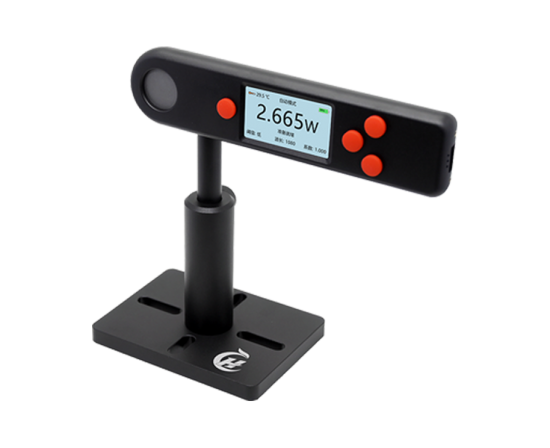

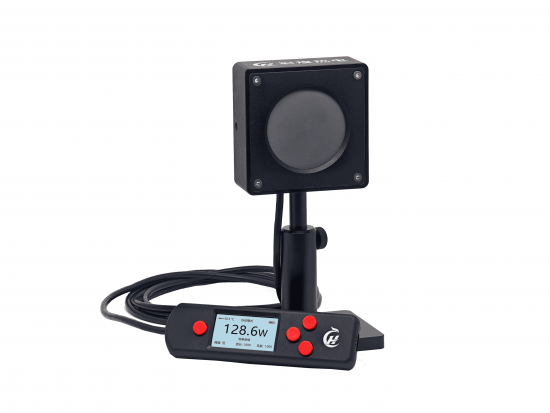

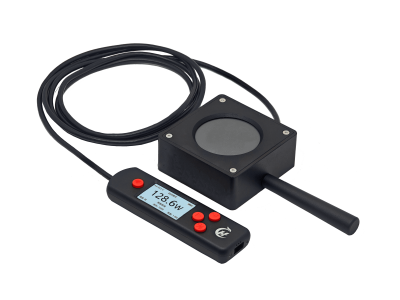

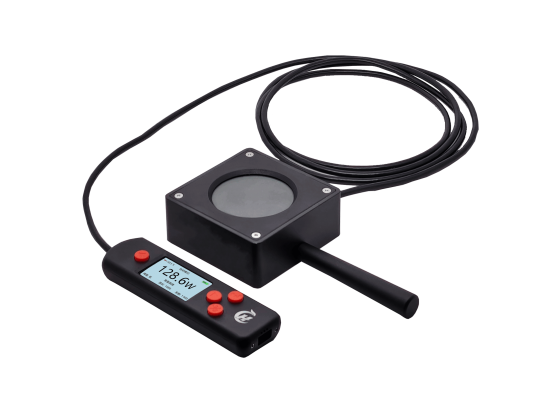

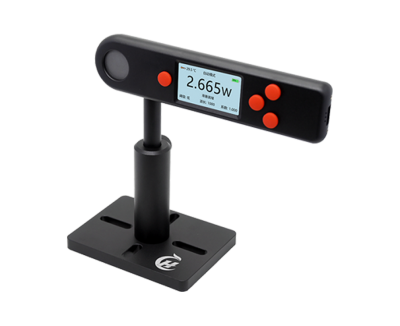

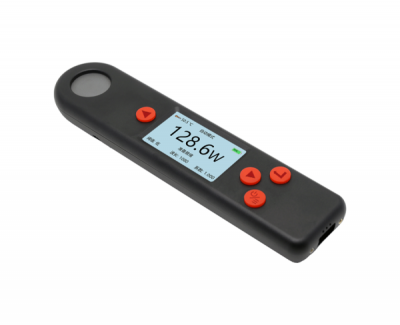

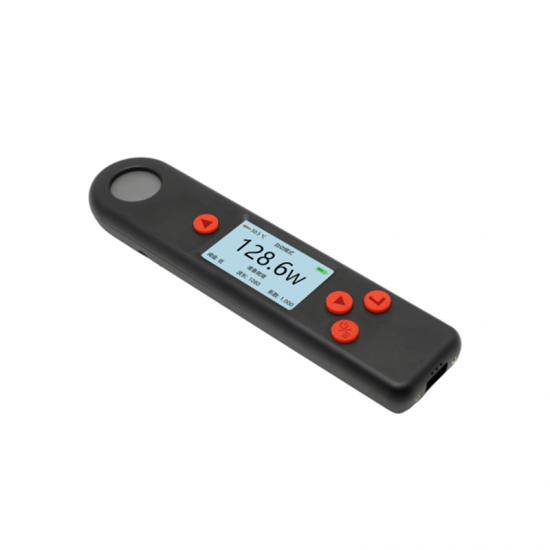

Fully automatic, high power probe series 3 models cover from 1.5W to10kW dual wavelength (CO2 and Yag) , ±2% repeatability (±5% for 5 and 10KW models) ±4% accuracy 1W resolution on 10KW probe Recalibration possible by User
Configure client software to support data
|
Model |
SH1000-A |
SH1000-B |
SH1000-C |
|
Spectral range(μm) |
0.19-25 |
0.19-25 |
0.19-25 |
|
Power range (W) |
1-200 |
4-600 |
25-1000 |
|
Measuring capability |
|||
|
Repeatability(±%) |
<2 |
<2 |
<2 |
|
Nonlinearity with power(±%) |
<2 |
<2 |
<2 |
|
Power accuracy(±%) |
<3 |
<5 |
<3 |
|
Detector type |
CB |
CB |
CB |
|
Detector aperture(mm) |
20 |
25 |
55 |
|
Lighting time (s) |
6 |
6 |
8 |
|
Maximum average power density |
20kW/cm², 10w, CW |
20kW/cm², 10w, CW |
20kW/cm², 10w, CW |
|
Maximum energy density |
0.3J/cm², 1ns, 1064nm |
0.3J/cm², 1ns, 1064nm |
0.3J/cm², 1ns, 1064nm |
|
Maximum equipment temperature |
125 ℃ |
125 ℃ |
125 ℃ |
|
Intermittent measurement time (s) |
60 |
80 |
90 |
|

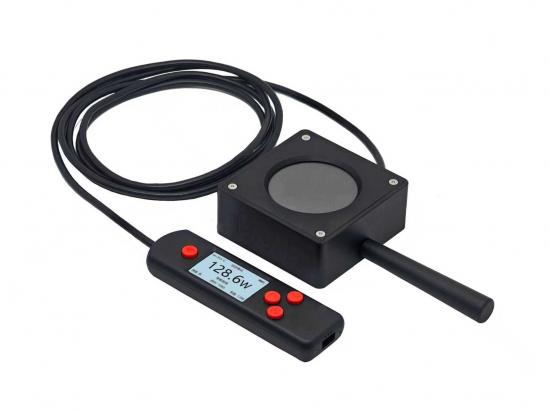

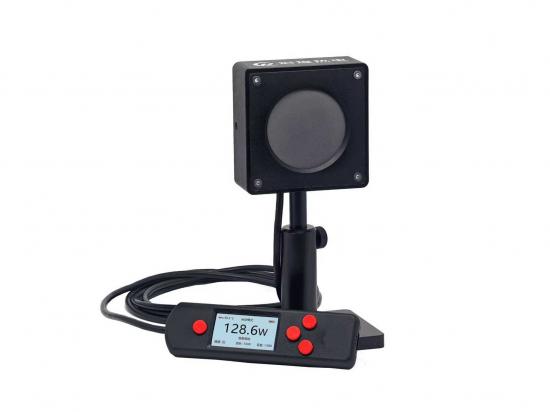

Probe specification (mm) |
164× 38×20.5 |
60×60×27 |
86×86×35 |
|
Cable length(m) |
1.5 |
1.5 |
1.5 |
|
Physical characteristics |
|||
|
Dimensions(mm) |
NA. |
132×38×20.5 |
132×38×20.5 |
|
Display type |
TFT LCD screen |
||
|
Display size(mm) |
22.7×42.7 (170×320 pixels) |
||
|
Battery type |
Rechargeable lithium battery |
||
|
Standby time |
30h |
||
|
Charger |
5V/2A |
||
|
Charging interface/ Digital interface |
USB Type-C |
||
It only takes 4 steps to complete the measurement
● Starting up--Long press the power button to start the device
● Prepare--Align the detector with the light source and wait for laser irradiation
● Start measuring--Sensing the laser beam, it will automatically measure and emit a beep sound to prompt
● Measurement completed--The second beep indicates the completion of the measurement,andthe value is displayed until the nextmeasurement begins
Fully automatic, high power probe series 3 models cover from 1.5W to10kW dual wavelength (CO2 and Yag) , ±2% repeatability (±5% for 5 and 10KW models) ±4% accuracy 1W resolution on 10KW probe Recalibration possible by User
3.5 inch color LCD portable design and easy to carry.
