Pen Shape Visual Fault Locator VFL S205

Equipped with LED lights for easy

Interface: SC, FC, ST, available FC-LC converter

Mini compact, stable light source, LED lighting, automatic shutdown

Item NO.:
S205
Order(MOQ):
1
Payment:
T/T, Paypal, Western Union, Moneygram, etc.
Product Origin:
China
Color:
Standard
Shipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
Lead Time：
in 3 Working Days

Inquire Now

Product Detail

Introduction

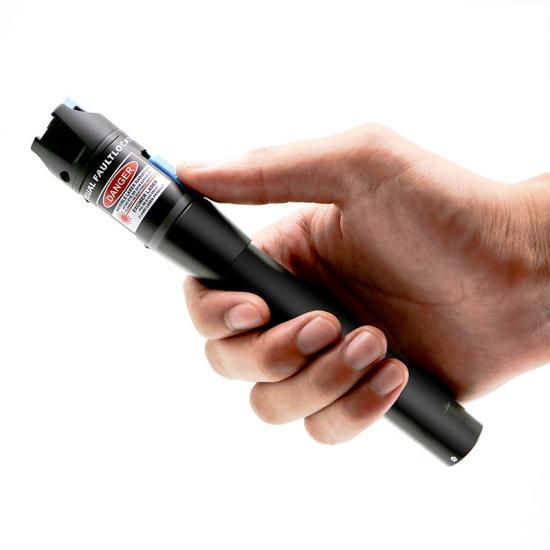

The Pen Shape Visual Fault Locator (VFL) is a robust, cost-effective fiber optical cable test tool for locating faults within OTDR dead zones. As a visual fault identifier (VFI), it can quickly identify faults in fiber optic jumper cables, distribution frames, patch panels, and splice trays. Using bright red laser light of 650nm wavelength, the FVFL-120 locates faults visually by having the light pinpoint the exact location of the fault. With output power up to 10mW, a 20km range of usage and metal housing, the visual fault locator is a versatile and cost-effective tool for fiber evaluation. The 2.5mm universal connector interface mates with many connector styles including SC/FC/ST without needing an adapter.

Features

• Easy identification of fiber break, bend, fiber tracing, and fiber routing
• Small size, easy to field test. High-quality pen-type visual fault locator

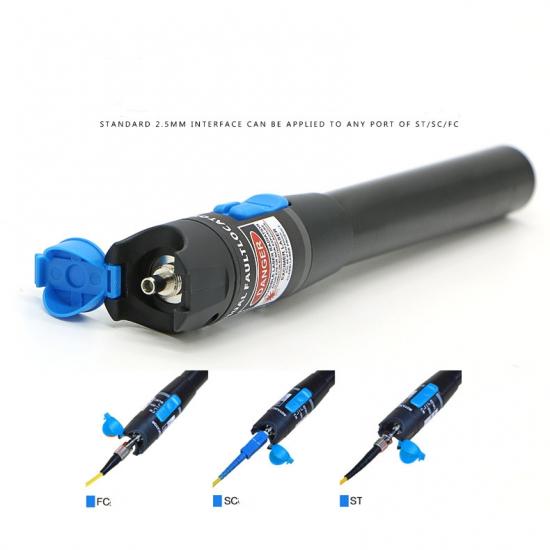

• Mates with 2.5mm ferrules including ST, SC, FC
• 650nm visible laser diode can be operated in continuous or pulsed modes
• Mode button cycles between Continuous Wave (CW) and Pulsed (2Hz) modes
• Metal sandblasting with matte paint design, better hand feeling and more durable
• Endcap protects laser unit

Specification

Product Series	Visual Fault Locator (VFL)	Optcore Part Number	S205
Wavelength	650nm ± 20nm	Output Power	20mW
Distance	<20km	Laser safety rating	Class III B
Fiber compatibility	Multimode and Singlemode	Operation Mode	Pulsed (2Hz) and Continuous Wave (CW)
Connector	2.5mm universal connector, for FC/SC/ST connector	Dimension	175x26x26mm
Battery type	2 x AA	Battery Life	≥ 10 hours
Environment	Operating: -10°C to 60°C Storage: -20°C to 70°C	Weight	0.16 kg

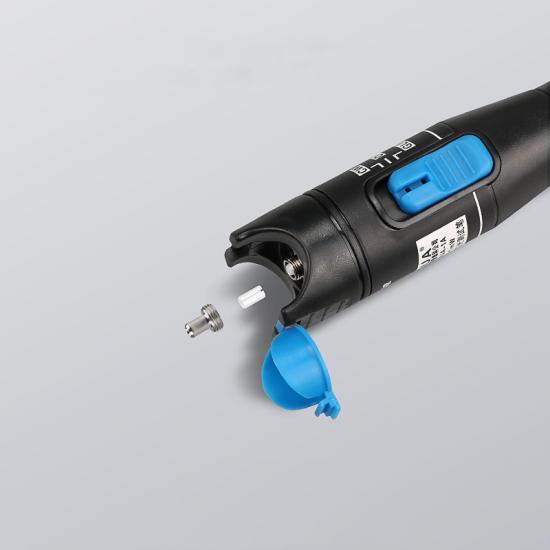

How to Change the Ceramic Core
Step 1: Open the dust cover, unscrew the red pen metalhead.
Step 2: Remove the broken ceramic casing, and clean up debris and dust (be careful not to damage the core surface). Then tighten the metal head.

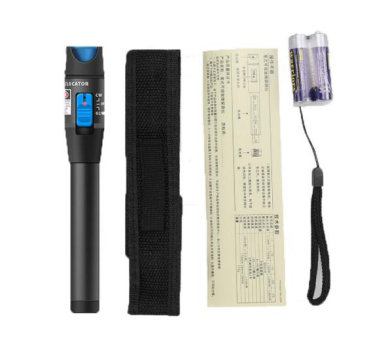

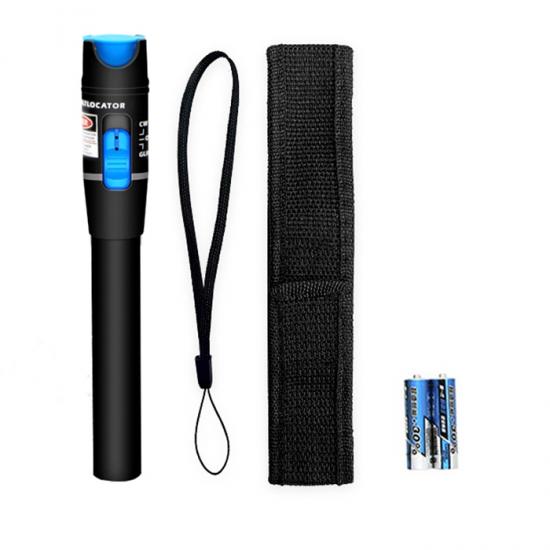

Package Included
1 x Visual Fault Locator
1 x Ceramic Tube
1 x Carry Bag
1 x Rope
