OTDR+OPM+VFL+LS+Multimeter+iOT+Event Map+Wifi+.
Multiple choices of wavelengths and dynamic ranges best meet the requirement of the users.
Item NO.:
S2100Order(MOQ):
1Payment:
T/T, Paypal, Credit Card, Western Union, etc.Product Origin:
ChinaShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 2 Working DaysIntroduction

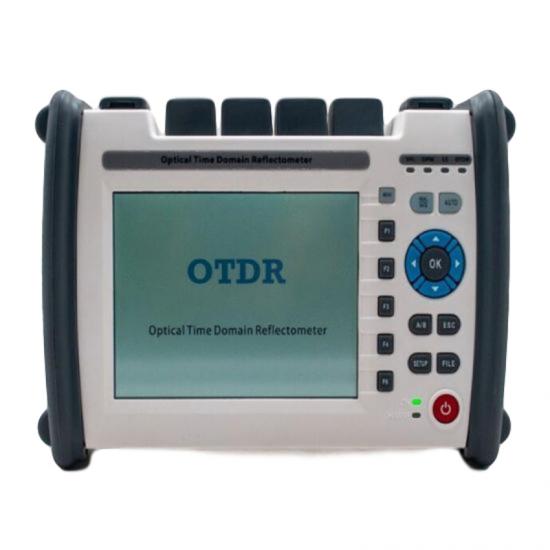

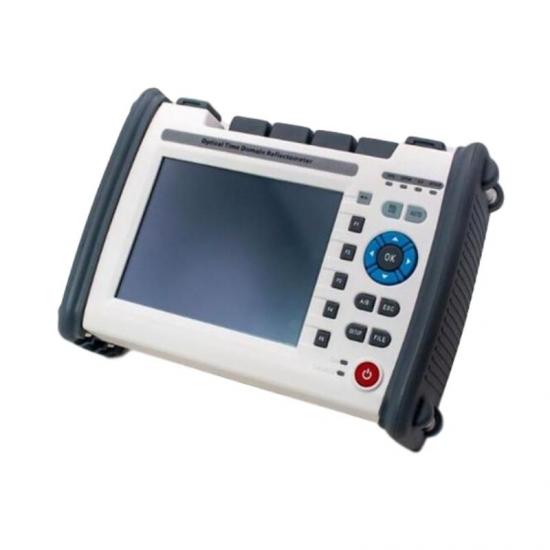

S2100 Series Optical Fiber Comprehensive Tester is high cost performance choice, Touch-sensitive and solid physical button work together for perfect user experience. It is widely used in the maintenance, construction and monitoring of cable line.
Features
Application
Easy testing with S2100 series Optical Fiber Comprehensive Tester:
With its lightweight design and user friendly dimension, S2100 series Optical Fiber Comprehensive Tester is perfect for the outside plant environment and can be easily operated with one hand.
S2100 series Optical Fiber Comprehensive Tester ensures accurate and complete fiber evaluation while the testing requires only one key to start, allowing anyone to proceed error-free testing. Its ease of use, low price, high resolution and compact size make it be a qualified tester in installation, operation and maintenance of optical networks, and also save you a lot of money and time.
Ideal for short fiber application:
It is hard to find a high cost effective OTDR to test short fibers. Normal Fault Locators in short spans lack the resolution while common OTDR are too large, expensive and complicated.
S2100 from Seikofire meets this need by providing all features and performances required for installation and maintenance of short fibers in a compact and mini handheld test set. S2100 represents an unmatched level of value and ease of use, but doesn’t compromise performance.
Module
Module
wavelength(nm)
Dynamic Range(dB)①
Event/Attenuation Dead Zone（m）②
S2100-S-A28
1310/ 1550
28/26
0.8/4
S2100-S-A32
1310/ 1550
32/30
0.8/4
S2100-S-A35
1310/ 1550
35/33
0.8/4
S2100-S-A37
1310/ 1550
37/35
0.8/4
S2100-S-A40
1310/ 1550
40/38
0.8/4
S2100-S-A42
1310/ 1550
42/40
0.8/4
S2100-S-A45
1310/ 1550
45/43
0.8/4
S2100-S-B28
1625
28
0.8/4
S2100-S-B32
1625
32
0.8/4
S2100-S-B35
1625
35
0.8/4
S2100-S-B38
1625
38
0.8/4
S2100-S-C26
1650
26
0.8/4
S2100-S-C32
1650
32
0.8/4
S2100-S-C35
1650
35
0.8/4
S2100-S-C38
1650
38
0.8/4
S2100-S-AB32
1310/ 1550/ 1625
32/30/30
0.8/4
S2100-S-AB35
1310/ 1550/ 1625
35/33/32
0.8/4
S2100-S-AB40
1310/ 1550/ 1625
40/38/37
0.8/4
S2100-S-AB42
1310/ 1550/ 1625
42/40/38
0.8/4
S2100-S-AC32
1310/ 1550/ 1650
32/30/30
0.8/4
S2100-S-AC35
1310/ 1550/ 1650
35/33/32
0.8/4
S2100-S-AC40
1310/ 1550/ 1650
40/38/37
0.8/4
S2100-S-AC42
1310/ 1550/ 1650
42/40/38
0.8/4
S2100-M26
850/ 1300
26/28
1.2/5
S2100-SM32
1310/1550/850/ 1300
32/30/22/26
SM：0.8/4 MM：1.2/5
S2100-SM35
1310/1550/850/ 1300
35/32/22/26
SM：0.8/4 MM：1.2/5
S2100-SM40
1310/1550/850/ 1300
40/38/22/26
SM：0.8/4 MM：1.2/5
S2100-S-AP35
1310/ 1550/ 1490
35/33/32
0.8/4
S2100-S-AP38
1310/ 1550/ 1490
38/36/35
0.8/4
Specifications
|
Display |

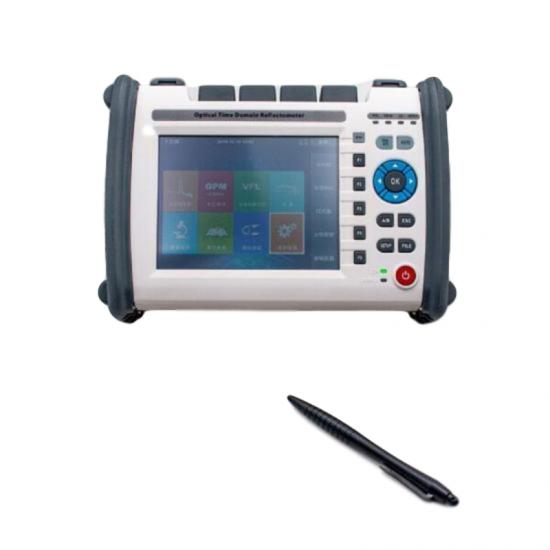

5.6-inch TFT-LCD (touch screen) |
|
Battery |
7.4V/2500mAh X 2 lithium battery (with air traffic certification), Continuously test: 8 hours (back light off), ③ Charging time: 3 hours |
|
Data Storage |
100,000 groups of curves |
|

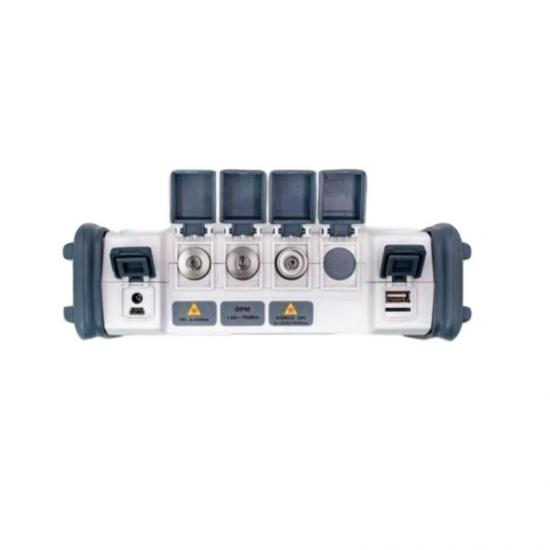

Interface |
USB A Type×1, Micro-USB×1） |
|
Working Temp |
-10℃~+50℃ |
|
Storage Temp |
-20℃~+70℃ |
|
Humidity |
≤95% (non-condensation) |
|
Dimension |
215×155×68mm / 1.1kg (battery included) |
|
Accessories |

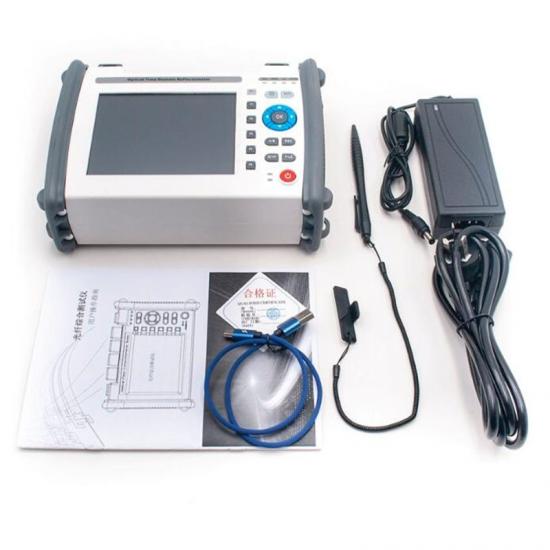

Main unit, 12V power adapter, Lithium battery, FC adapter, USB cord, User guide, carrying case, wrist belt |
