Core Alignment Large Diameter fiber Splicing Machine

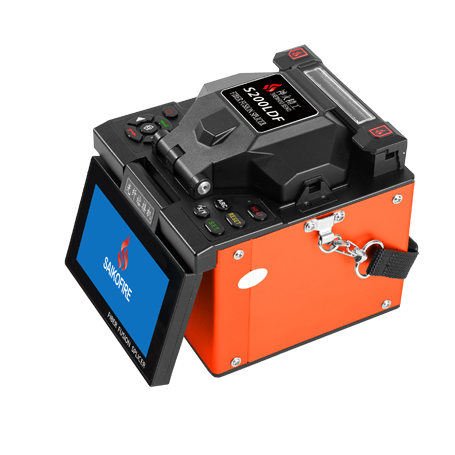

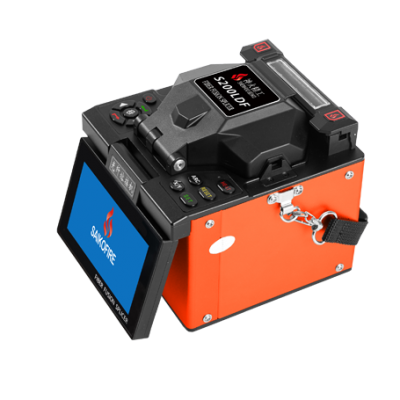

Large Diameter Fiber Fusion Splicer S200LDF

High Speed Splicing and Heating
Touch Screen and Keypad control
Applicable to cladding diameter 200-250μm fiber

Item NO.:
S200LDF
Payment:
T/T, Paypal, Western Union, Moneygram, etc.
Product Origin:
China
Color:
Standard
Shipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
Lead Time：
in 3 Working Days

Inquire Now

Product Detail

Introduction

S200 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (200~250um) with S200LDF Specialty Fiber Fusion Splicer.

Features

Applicable to cladding diameter 200~250μm fiber
Real-time ARC calibration based on environment
High resolution 4.3 inch touch screen
PAS Accurate alignment, world standard fusion loss
Applicable to different types fibers (SM/MM/DS/NZDS)
Support 10000/200 groups fusion records/fusion images
5200mAh Plug-gable Li-battery, support separate charging
2 USB ports: software upgrading, records exporting/power supply for LED light

Specifications

Model	S200LDF
Alignment method	Clad to clad
Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655)
Cladding diameter	200~250µm
Cutting length	8~16mm（fiber diameter<250µm) 16mm(fiber diameter250µm~1000µm)
Typical splice loss	SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss	> 60dB
Operation mode	Manual/ Semi-automatic/Automatic
Typical splice time	≤9 seconds
Typical heating time	≤30 seconds（60mm heating tube）
Tension test	Typical 2N
Fiber magnification	X or Y single fiber image 220X, X and Y double image 110X
Viewing display	Dual high sensitivity camera, 4.3 inch touch screen.
Data storage	10000 groups data records and 200 group images
Battery capacity	5200mAh Li-battery, 200 cycles splicing and heating
Power supply	AC adaptor, input: AC100-240V(50/60HZ),output: DC13.5V/4.5A
Electrode life	> 3000 times discharge
Terminals	2 USB ports: software upgrading, records exporting/power supply for LED light
Operating condition	Altitude:0-5000m, Humidity:0-95%, Temperature: -10℃ -- +50℃; Wind: max. 15m/s
Dimension/Weight	130mm (L)×154mm (W)×132mm (H) /2.0kg (including battery)

Standard Accessories

Name	Model	Quantity
Machine	S1200LDF	1
Fiber stripper	SH-06	1
Belt	SH-04	1
Charger	SH-01	1
Spare electrodes	SH-02	1
Cooling tray	SH-03	1
Carrying case	SH-05	1
Specification		1

Optional Accessories

Name	Model
Mobile power supply	SH-S80
Large Diameter Fiber cleaver	SH-D106
GPS function
LED Light
